Havis-Shields Kwik-Kit KK-120-05 User Manual
Page 11

Item #4 & #13
Place (2) Diamond Plate Floors
between Bench/Wall assemblies and
Front bulkhead. Place cardboard
along side of bench while positioning
Be careful that exposed wires are not touching metal and optional KK-
x-VAK hoses are not completely crushed
Note: Vent hose will be tight in spots. If hose are crushed to an oval
shape the airflow will still be good. Avoid completely crushing hoses.
the floor to avoid scratching the bench.
KK-XXX-05_INST_8-07
11

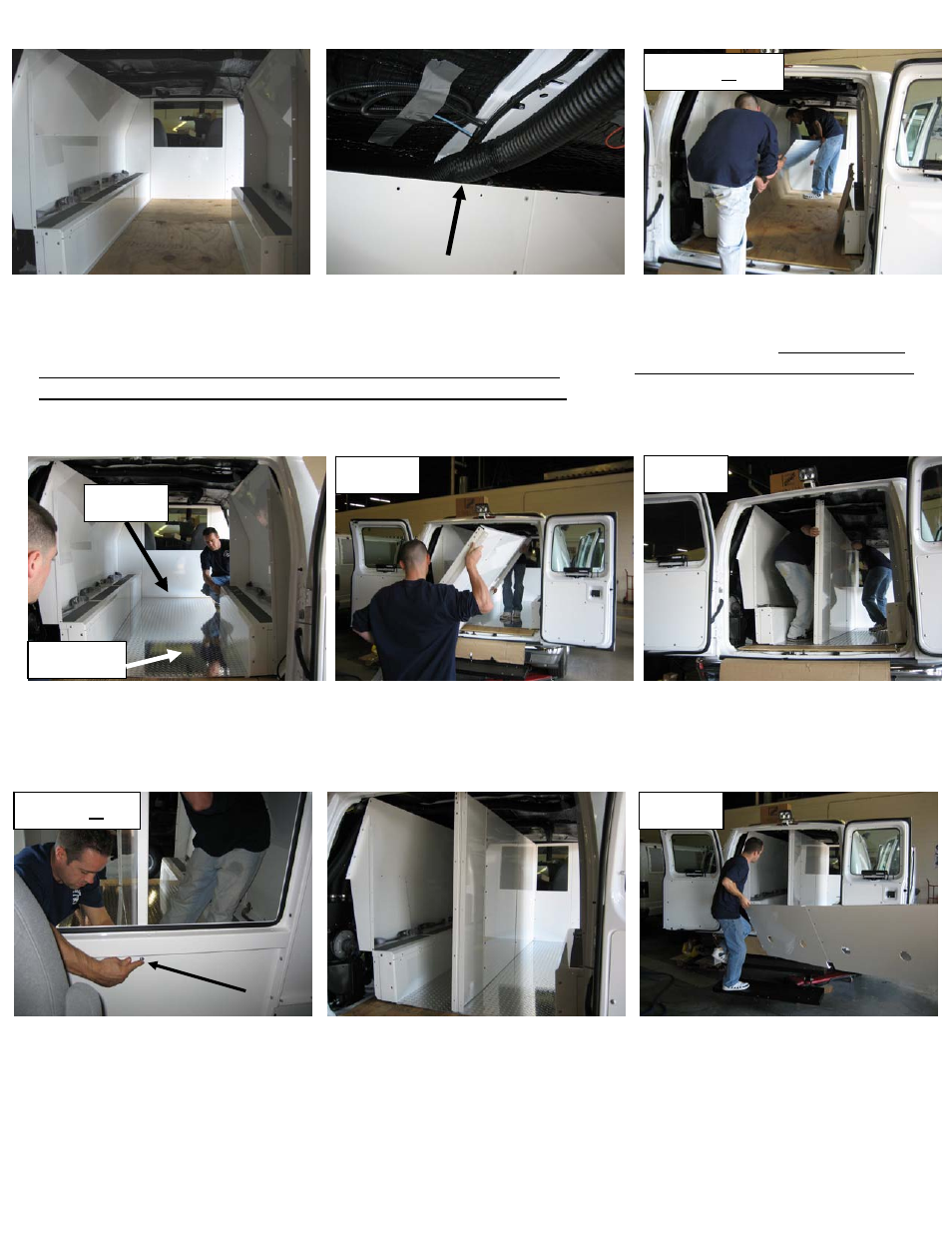

Current view of installation
Place Center Divider into
vehicle.
Item #5
Item #4
Item #3
Approximate center
Item #5
Carefully place Driver-side
Ceiling section into vehicle.
Item #7
Loosely bolt Center Divider to
Front Bulkhead
Item #5 to #3
The floor(s) will square the benches
and bulkheads to the kit.
