9-5 108277 10/08

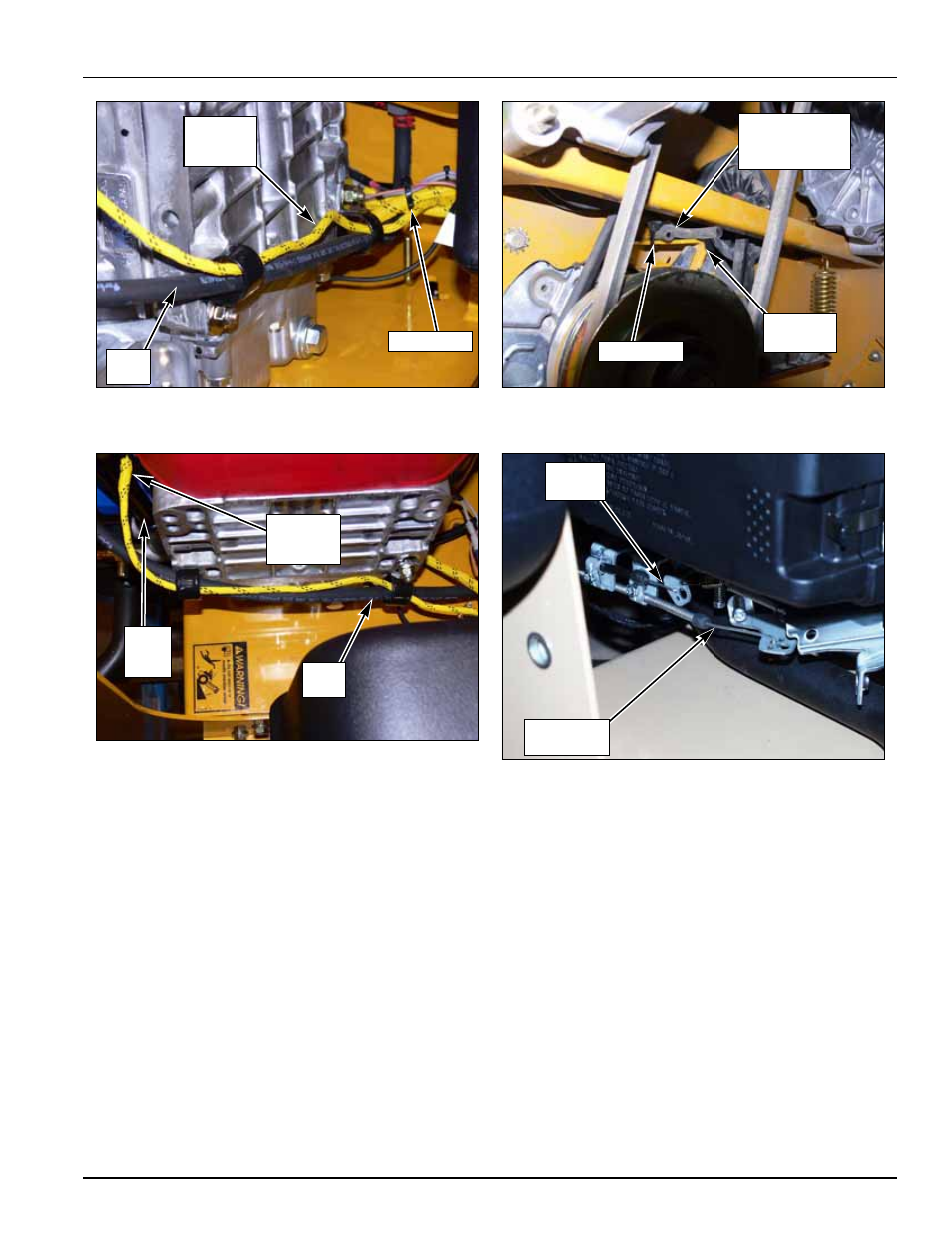

Engine connections )FIG. 6, FIG. 7, FIG. 8, and FIG. 9).
NOTE: Route oil sensor wire between oil file tube and engine block. Index ter-
minal on wire in horizontal direction to hold wire off oil filter.
NOTE: Tie carburetor drain tubes and clutch pigtail together to clutch anchor.
Do not tighten tie strap enough to pinch drain hoses closed.
FIG. 6 FIG. 7
FIG. 8 FIG. 9
OIL
SENSOR
WIRE
FUEL
LINE
TIE STRAP
CARBURETOR
DRAIN
TUBES
TIE STRAP
CLUTCH
ANCHOR
OIL
SENSOR
WIRE
FUEL
LINE
OIL
FILL
TUBE
THROTTLE
CABLE
CHOKE
CABLE
