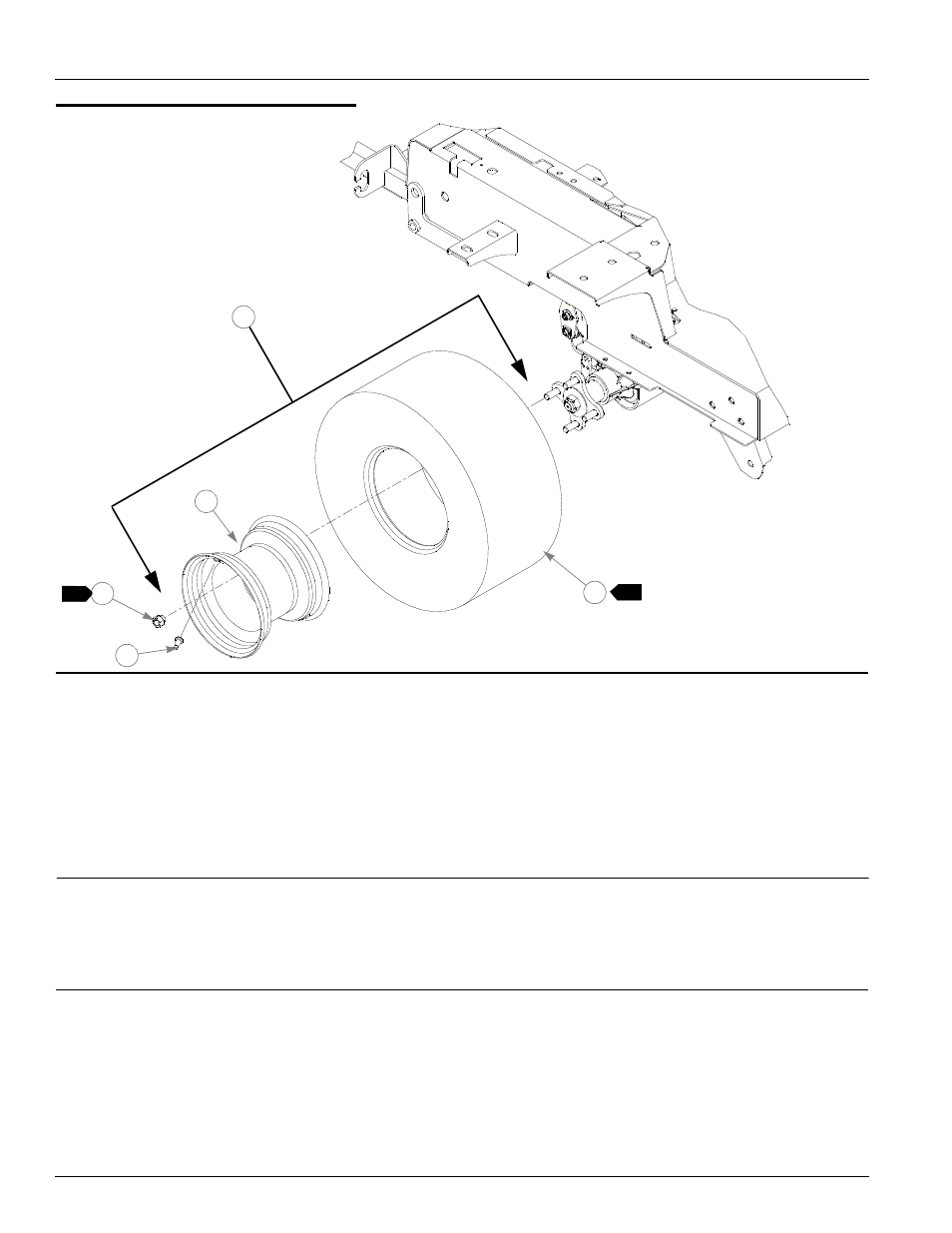

Drive Wheel Assembly
NOTES:
1. Inflate tire to 8-12 psi.
2. Torque to 65-75 ft-lbs.
INDEX
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 784264 784264 2 WHEEL/TIRE ASSY 18 X 9.50 (QTY PER 54" TRACTOR)
2 784272 N/A 1 TIRE 18 X 9.5
3 784280 N/A 1 WHEEL
4 019521 N/A 1 TIRE VALVE
5 061077 061077 4 WHEEL NUT (QTY PER WHEEL)
1 783134 783134 2 WHEEL/TIRE ASSY 18 X 8.50 (QTY PER 48" TRACTOR)
2 783142 N/A 1 TIRE 18 X 8.50
3 783159 N/A 1 WHEEL
4 019521 N/A 1 TIRE VALVE
5 061077 061077 4 WHEEL NUT (QTY PER WHEEL)
1
1
2
3
4
5 2
