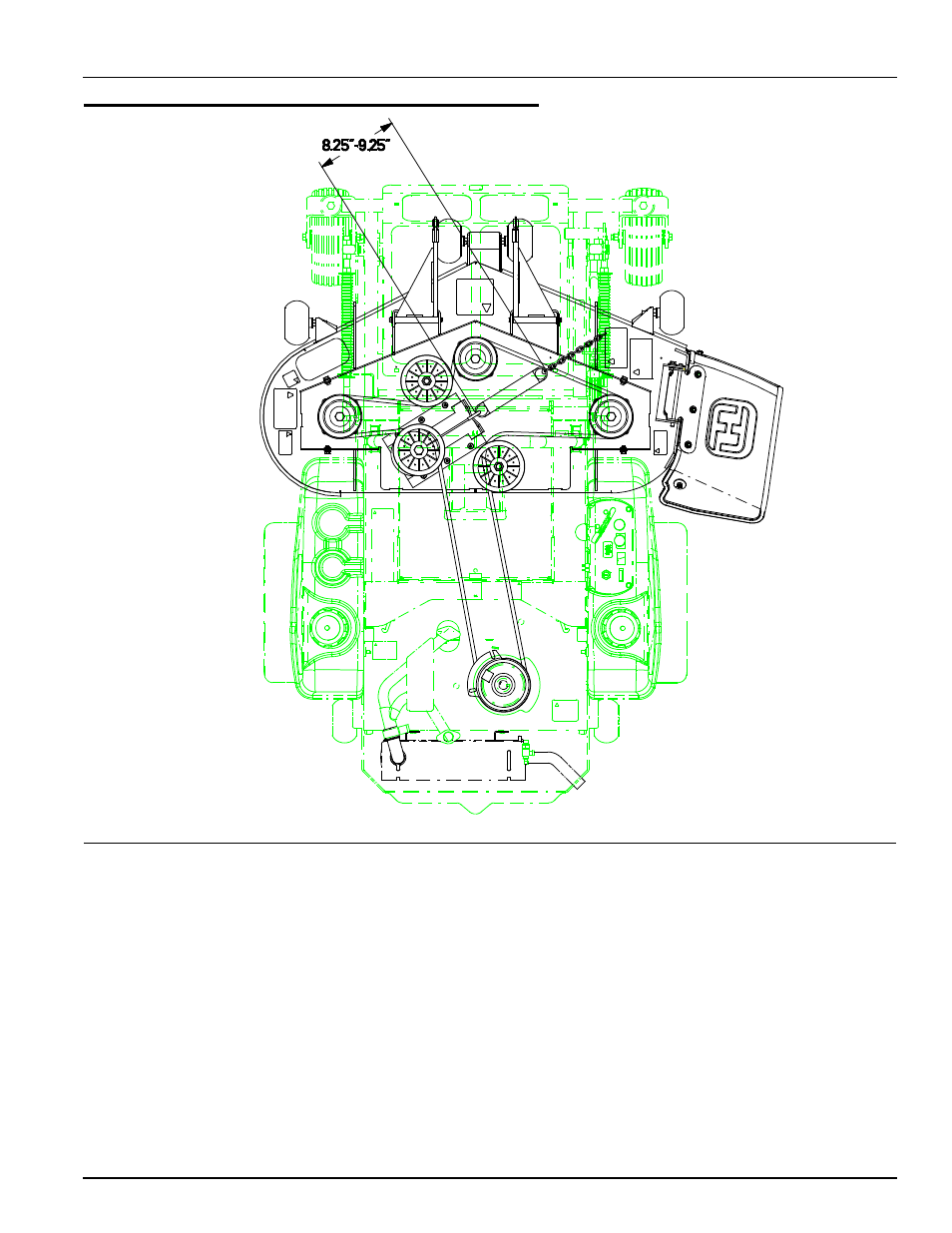

Deck Belt Routing and Tensioning

NOTES:

1. Spring length after tensioning new belt. Spring length measured from

outside of hook to outside of hook. Tension spring with deck in leveling
position.

2. Route belt as shown.
