Hustler Turf 108277 - Manual (Page 46)

5-2 108277 10/08

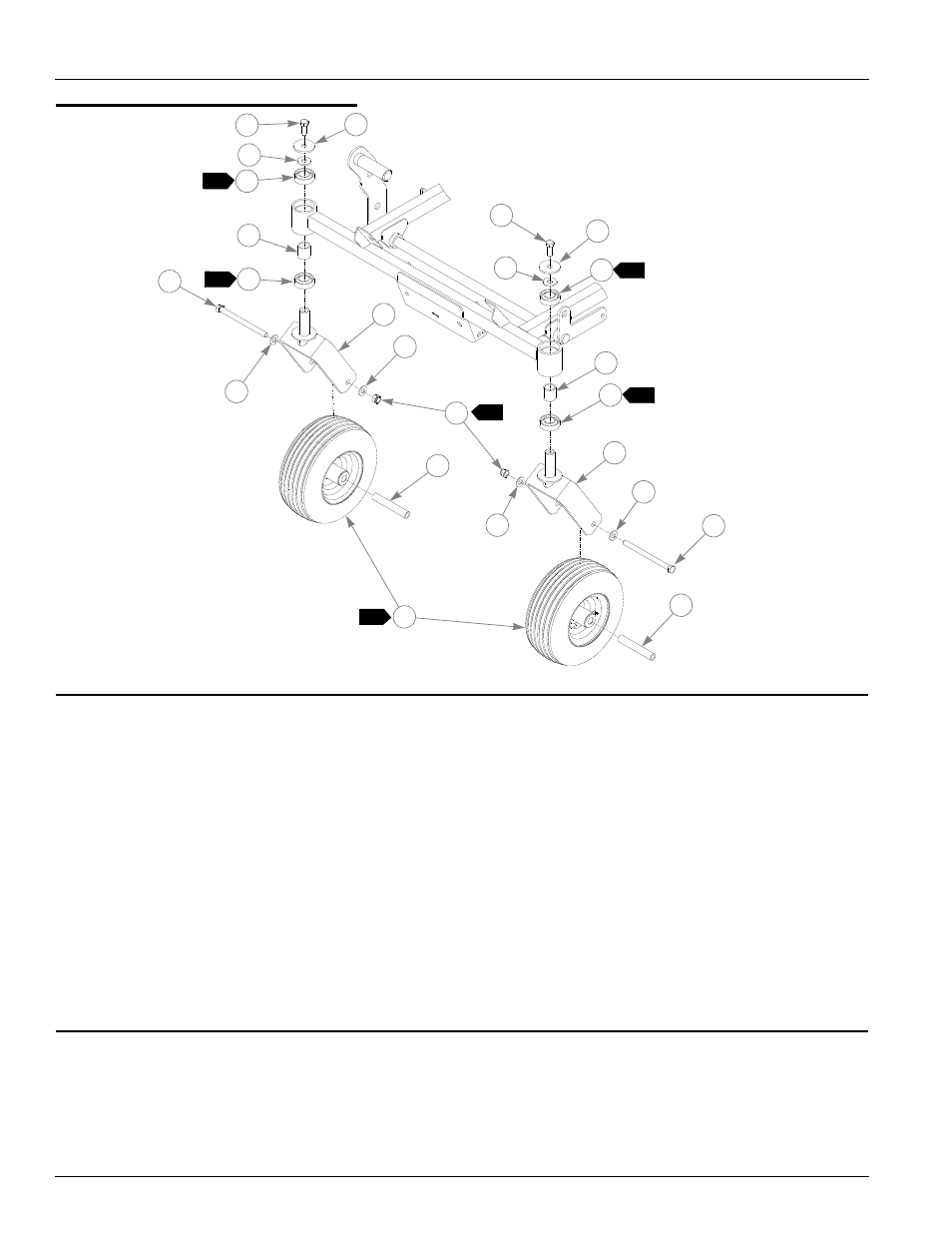

Front Wheel Assembly
NOTES:
1. Apply grease to zerks, see owners manual.
2. Torque to 75 ft.-lbs.
3. Assemble with extended inner race down.
INDEX NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 705954 705954 2 CS .500-13 X 1.25 HX G5 ZNYC
2 344267 344267 2 FW .510 X 2.15 X .187 SPL ZNYC
3 712976 712976 2 FW .531 X 1.375 X .125 ZNYC
4 784223 784223 4 BEARING
5 784603 784603 2 FASTRAK SPACER
6 339689 339689 2 CASTER FORK
7 042630 042630 2 CS .500-13 X 6.50 HX G5 ZNYC
8 767962 767962 4 FW .531 X 1.063 X .090 SAE ZNYC
9 781567 781567 2 NT .500-13 HEX G8 ZNYC NL
10 768044 768044 2 TIRE/WHEEL ASSEMBLY 11 X 4-5 RIBBED
11 306969 306969 2 GAGE WHEEL SPACER
1
2
3 4
4
5
6
7
8
8
9
8
1 2
3
4
4
5
6
7
8
11
11
10 1
2
3
3
3
3
