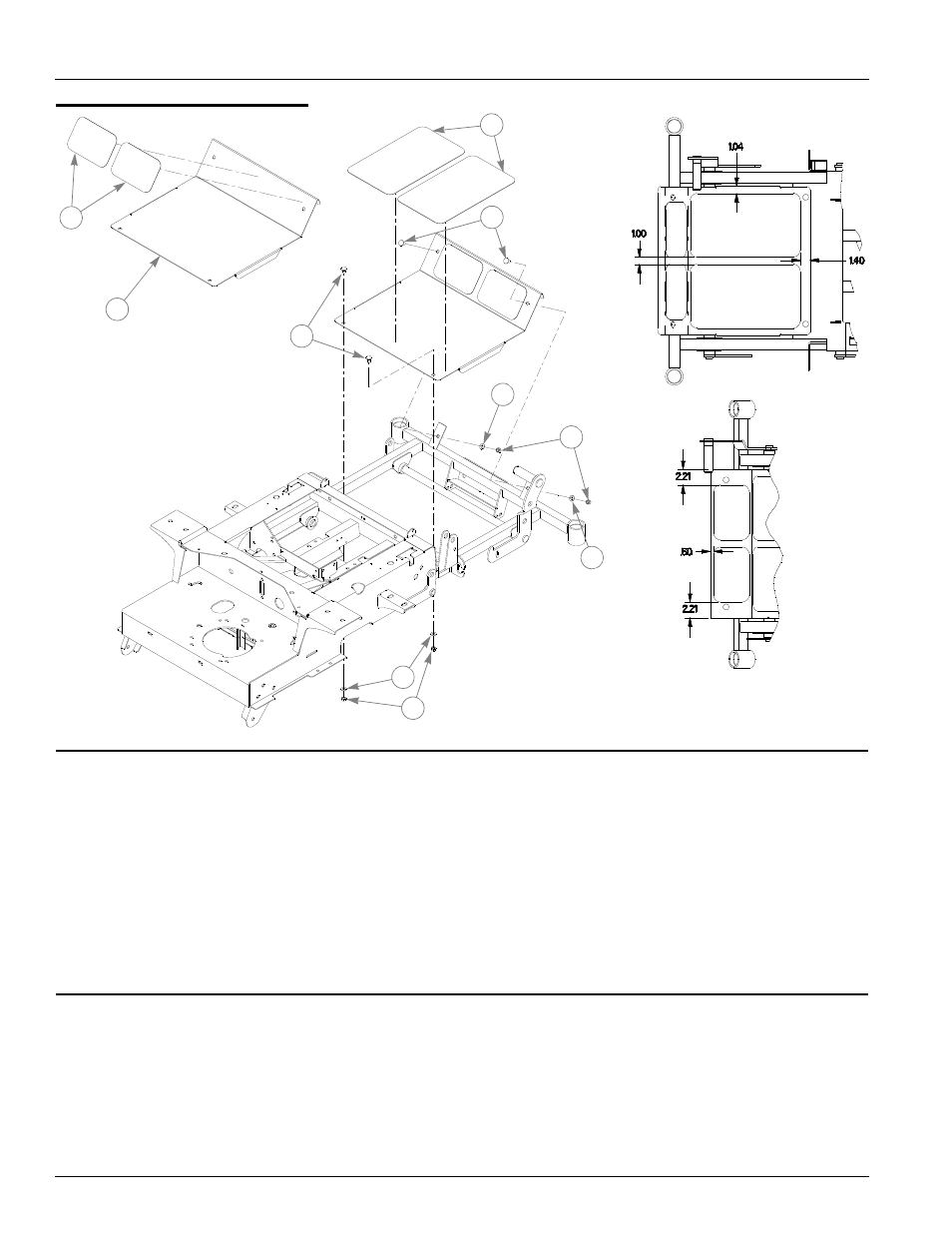

Footrest Assembly
NOTES:
INDEX NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 107839 107839 1 FLOOR PLATE
2 785485 785485 2 UPPER STEP TREAD
3 785493 785493 2 LOWER STEP TREAD
4 011320 011320 4 CB .375-16 X .750 STD ZNYC
5 767954 767954 4 FW .406 X .812 X .060 SAE ZNYC
6 054502 054502 4 NT .375-16 HX GRD 5 ZNYC
1
2
3
4
4
5
5
5
6
6
