Visual Manager User Interface
66 Network Storage Router e1200-160
Common Fibre Channel and SCSI Mapping Tasks
Although the initial screen display for Fibre Channel and SCSI maps differs
slightly, the available actions are the same.

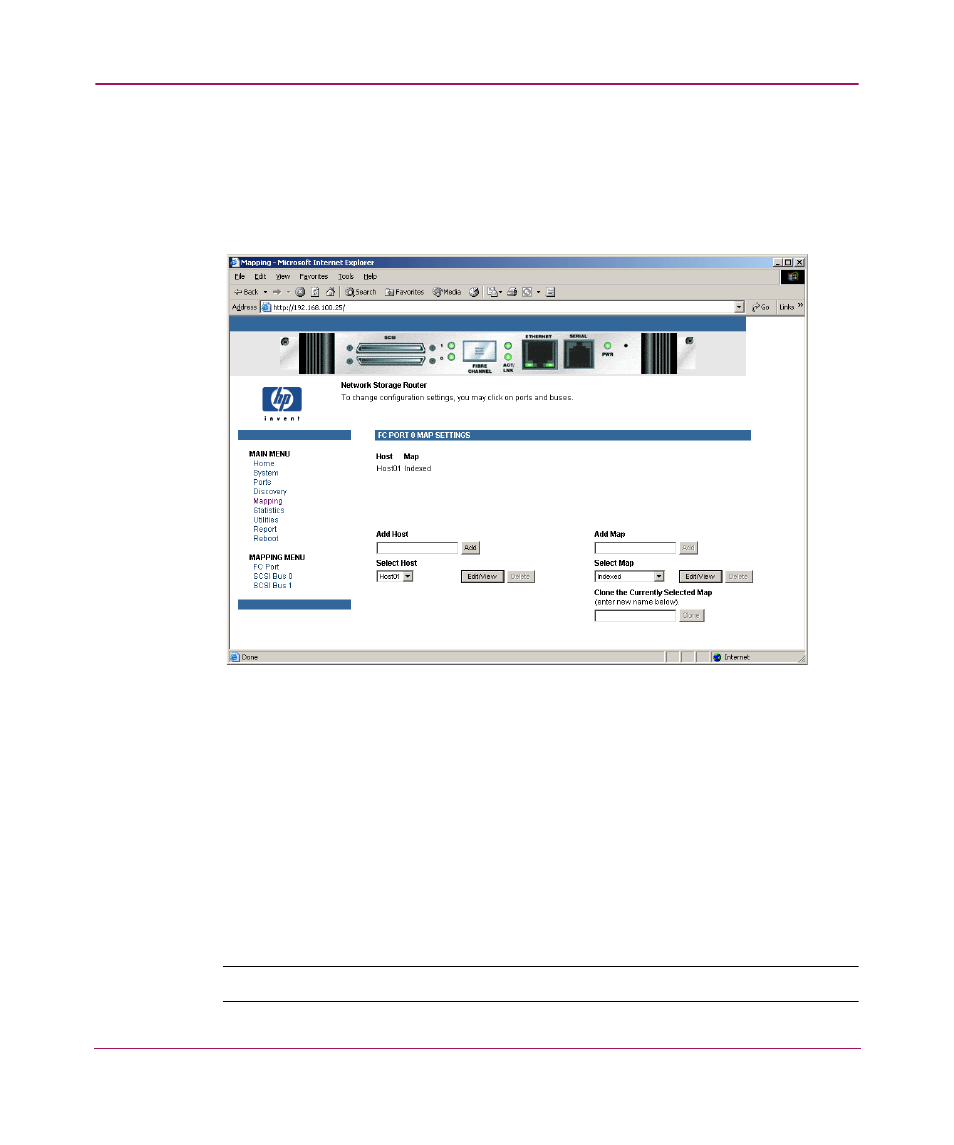

Figure 23 is an illustration of the Fibre Channel mapping screen.
Figure 23: Initial Mapping screen
Mapping screen options:
■ Select Host adds a known host.
To select a previously set up host, expand the Select Host drop-down box and
select the host from the list.
■ Edit/View Host displays or changes host information.
Viewing and changing host information is discussed in the following
paragraphs.
■ Delete Host deletes the current host.
Note: Host lists built during POST cannot be deleted.
