Visual Manager User Interface
42 Network Storage Router e1200-160
Home page information includes:

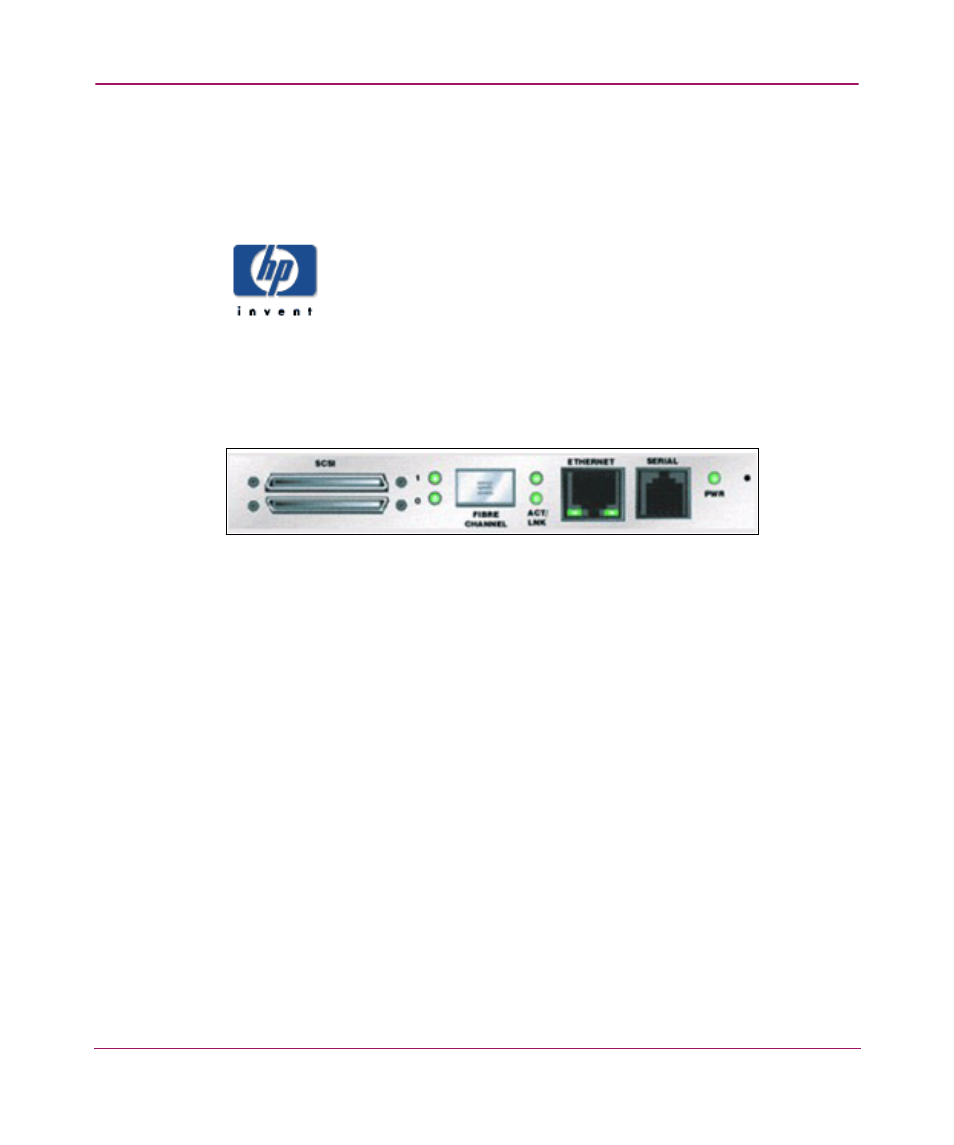

■ The HP logo is located in the upper left corner of the page. Figure 9 is an
example of this portion of the home page screen. If the Internet is accessible
to the host, click the HP logo to open the website.
Figure 9: HP logo
■ An illustration of the router is located near the top of the home page.
Figure 10 is an example of this portion of the home page screen.
Figure 10: Router image
■ The router image is interactive, allowing quick access to configuration menus:
— To display current settings and status for a port, click the corresponding
port shown in the router image.
— To open a menu for making changes to the configuration for that
particular port or bus, click the desired Fibre Channel port or SCSI bus.
— To open the Network Configuration Menu, click the Ethernet port.
■ Router status information is located in the body of the home page and
includes platform information
