Serial and Ethernet Pin Assignments
165 Network Storage Router e1200-160
RJ-45 Ethernet Cable Pin Assignments
The layout of the pin assignments for RJ-45 Ethernet receptacle is illustrated in
Figure 82 .

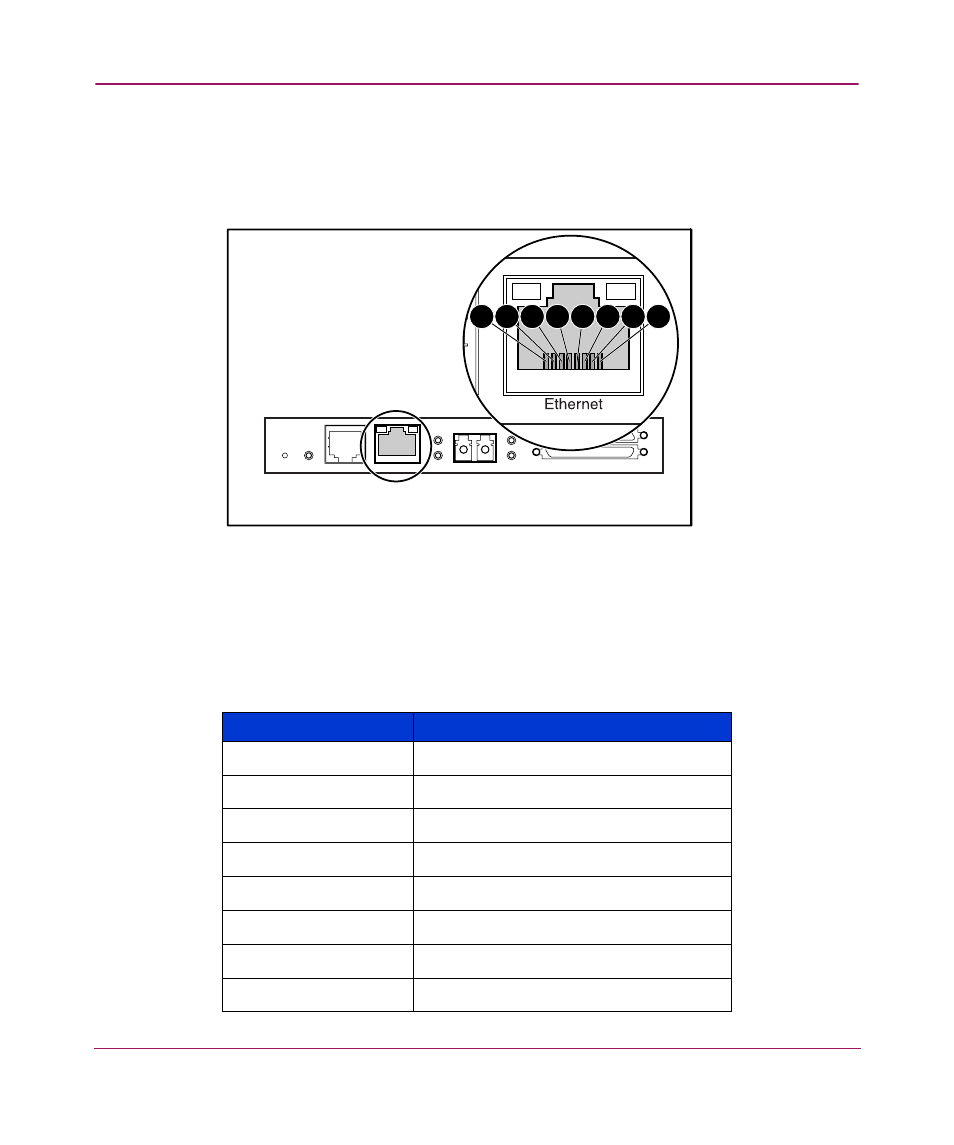

Figure 82: RJ-45 Ethernet pin assignments
The pin definitions listed in Table 14 correspond to the pins assignments in
Figure 82 .
The router Ethernet connection supports the IEEE specifications for 10BASE-T
and 100BASE-TX Ethernet standards.
Table 14: RJ-45 Ethernet Pin Assignments
Item Description
1 Transmit Out +
2 Transmit Out -
3 Receive in +
4 No Connection
5 No Connection
6 Receive in -
7 No Connection
8 No Connection
Fibre
Channel
LVD/SE SCSl
0
1
Ethernet Serial
Pwr.
Link/
Act
1 2 3 4 5 6 7 8
