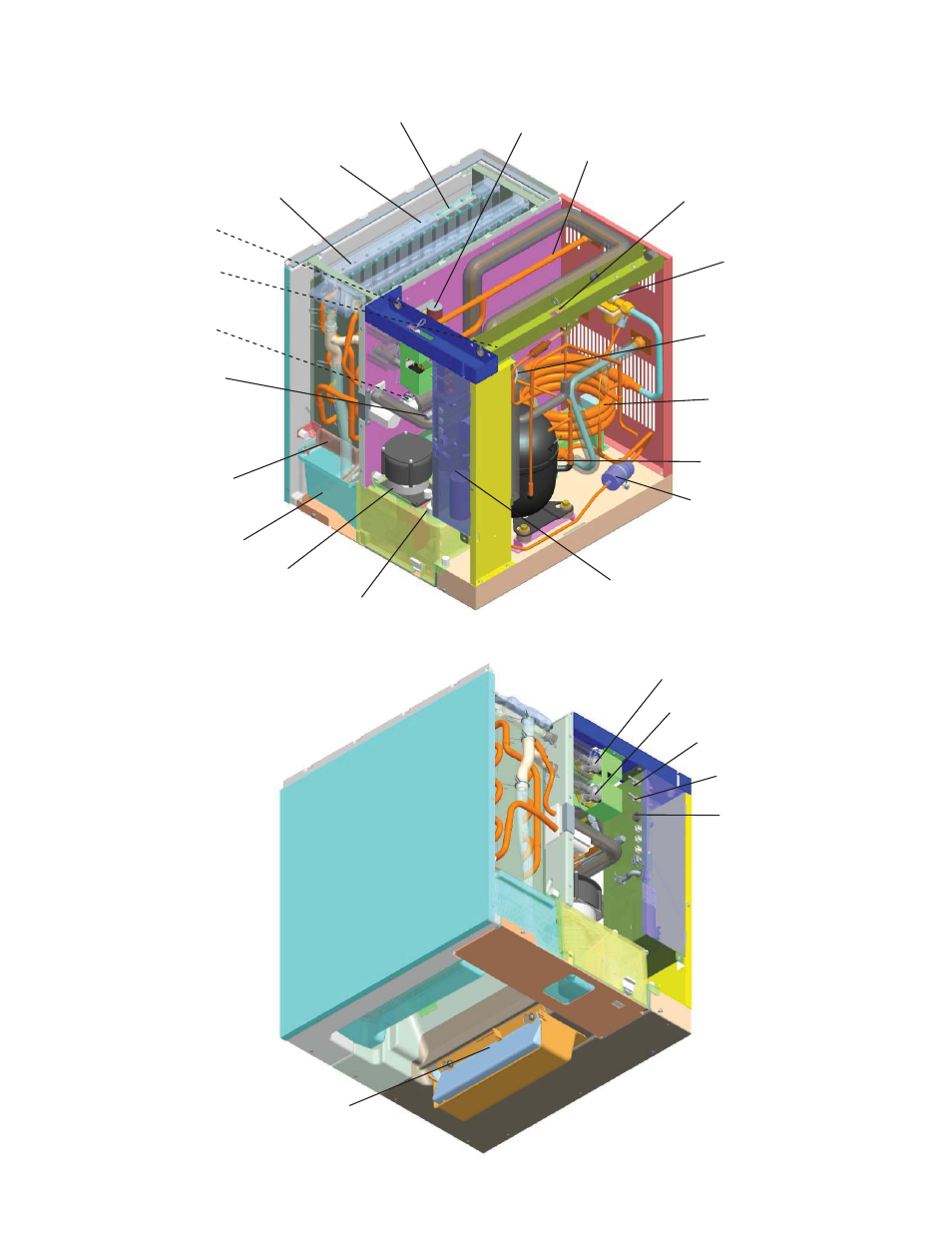

[b] KMD-410MWH

Spray Guide

Spray Tube

Drain Valve

Water Supply Inlet

Water Tank

Cube Guide

Pump Motor

Float Switch

Water Regulator

Condenser

Hot Gas Valve

Compressor

Control Box

Expansion Valve

Harvest Water Valve

Fill Water Valve

Control Switch

Service Switch

Fuse Holder (Fuse)

Bin Control Switch

Drier

Thermistor

Access Valve
(Low Side)

Access Valve
(High Side)

Water Supply Tube

Cleaning

Valve
