56
7) Remove the front panel then remove the front insulation (the large insulation panel in front
of the evaporator) by lifting up the panel slightly and pulling it towards you.
8) In bad or severe water conditions, clean the float switch as described below. Otherwise,
continue to step 9.

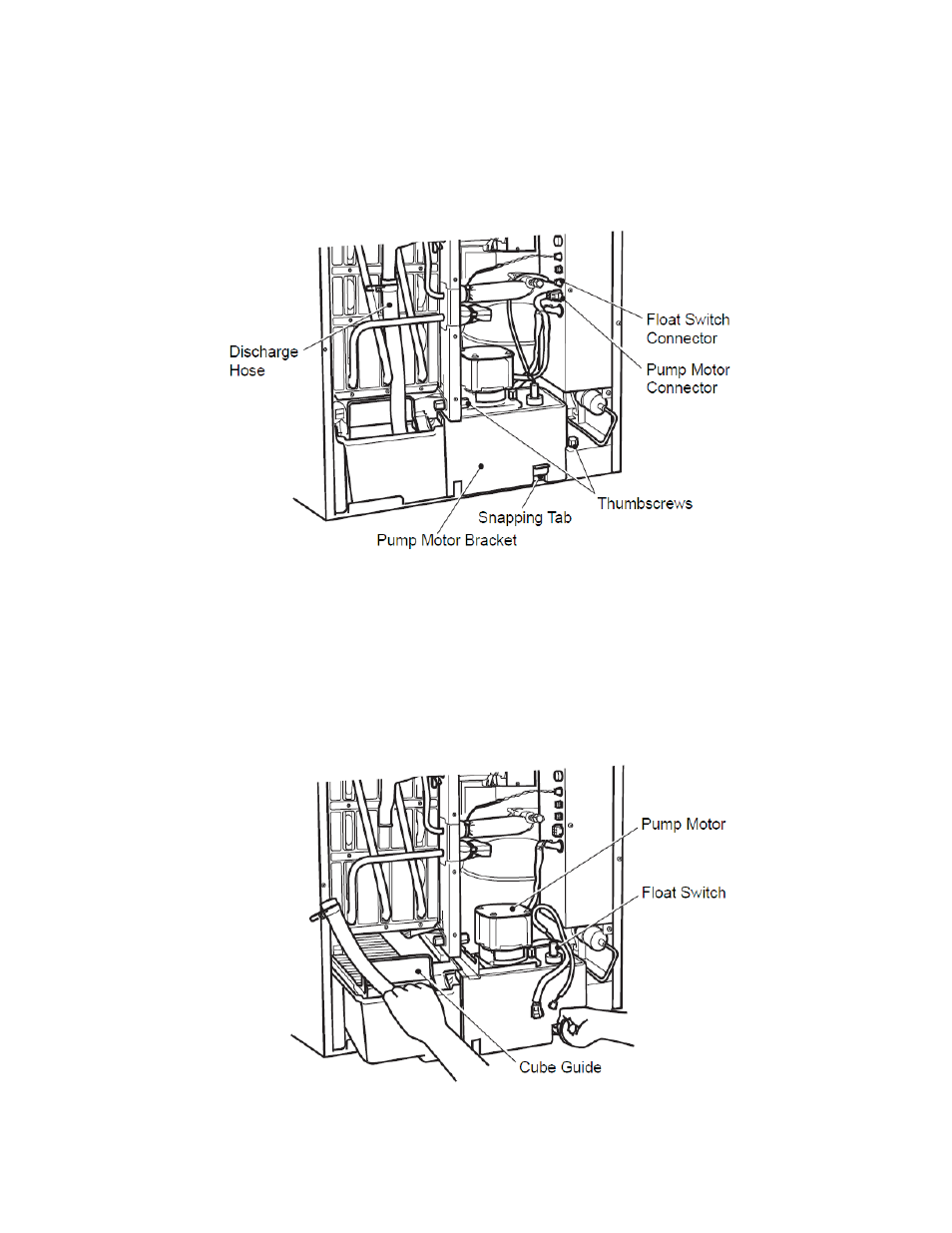

a. Loosen the two thumbscrews securing the pump motor bracket.
b. Disconnect the discharge hose.
c. Disconnect the pump motor connector and the float switch connector from the side of the
control box.
d. Keep pushing up the snapping tab at the right side of the pump motor bracket.
e. Pull out the water tank, cube guide, pump motor bracket, pump motor and float switch
together.
f. Remove the pump motor bracket securing the pump motor and the float switch. Remove
the float switch from the pump motor bracket.
