6) The spray tube is easily cleanable by removing the black rubber caps on the ends.
7) Remove the hose band connecting the water supply tube.
8) Pull the water supply tube towards you.
9) Remove the top insulation.
10) The spray guide is located under the water supply tube. Pull off the spray guide from the
evaporator.
11) Refit the removed parts in the reverse order of the removal procedure. Check for water
leaks.
IMPORTANT
Fit the spray guide securely and tightly on the evaporator fin. Otherwise, cloudy
or irregular ice cubes or performance reduction may be caused.

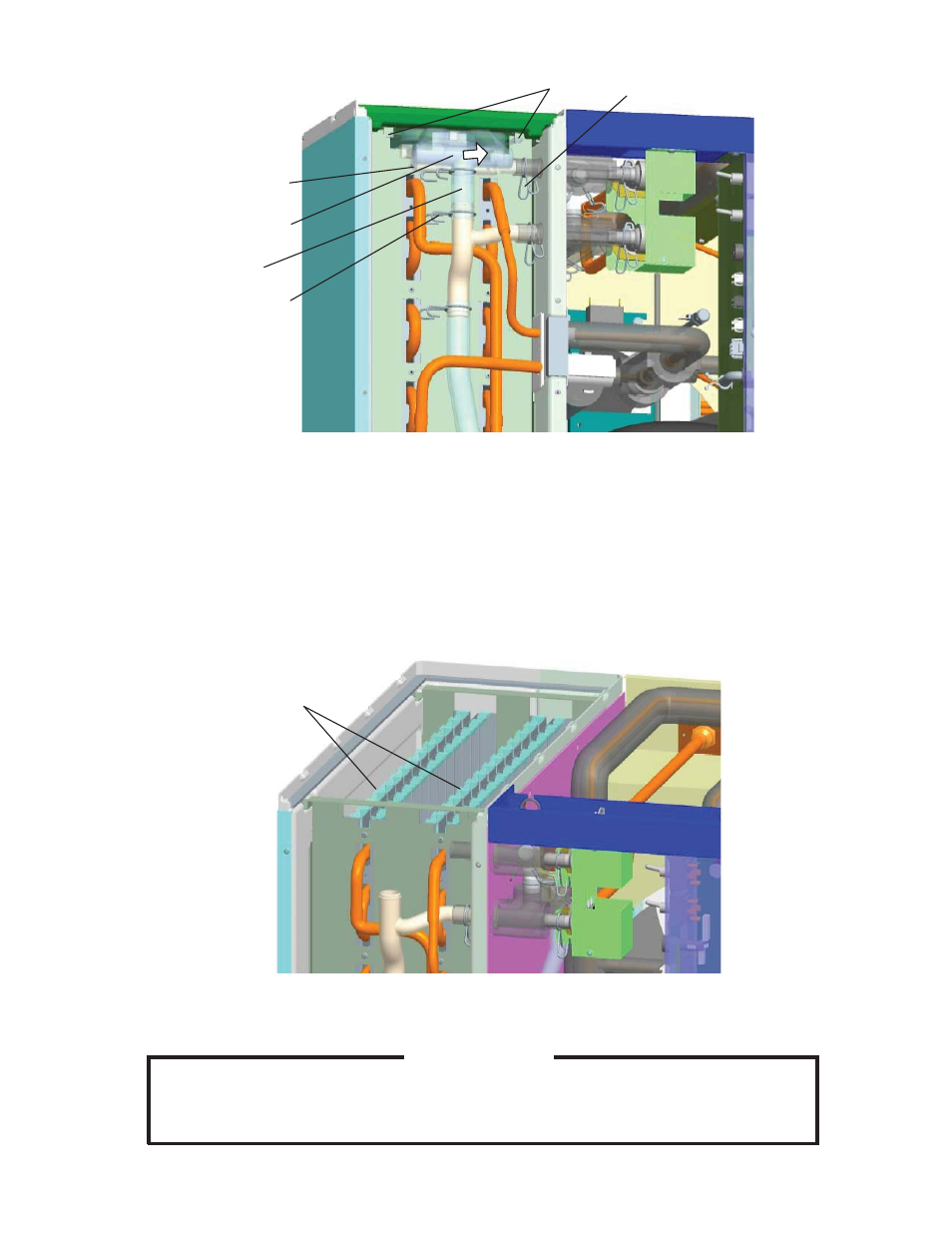

Hose Band
Hose
Tabs
Spray Tube
Hose Band
Water Supply Tube
(under Spray Tube)
Spray Guide
