4) Install the new float switch in the reverse order of the removal procedure.
5) Refit the panels in their correct positions.
6) Turn on the power supply.
16. BIN CONTROL SWITCH
CAUTION
Do not drop or impact the bin control switch. The reed switch inside may be damaged.
1) Remove the water tank. See "V. 14. WATER TANK."
2) Disconnect the connector of the bin control switch lead (black).
3) Pull out the bin control switch tab outside and slide the bin control switch towards you.
4) Take out the bin control.
5) Install the new bin control switch.
6) Pass the bin control connector through the hole from the bottom to the top of the unit.
7) While pulling up the bin control lead, hook the bin control on the right side interior wall.
Then push the bin control up against the bottom of the unit, and slide to the back until it
snaps in place. Make sure the slotted holes at the right side of the bin control are
securely placed on the collars at the bottom of the unit.

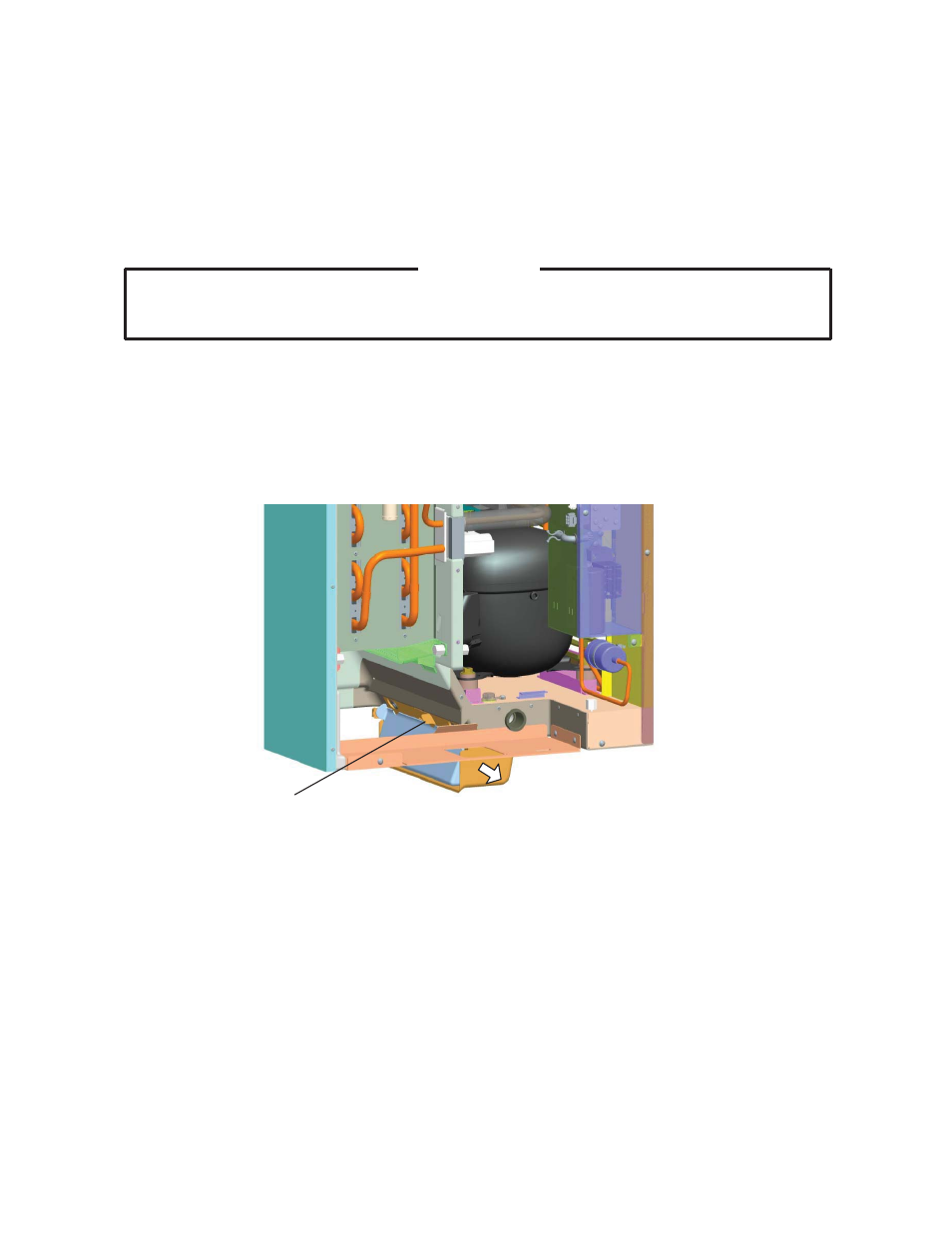

Bin Control Switch Tab
