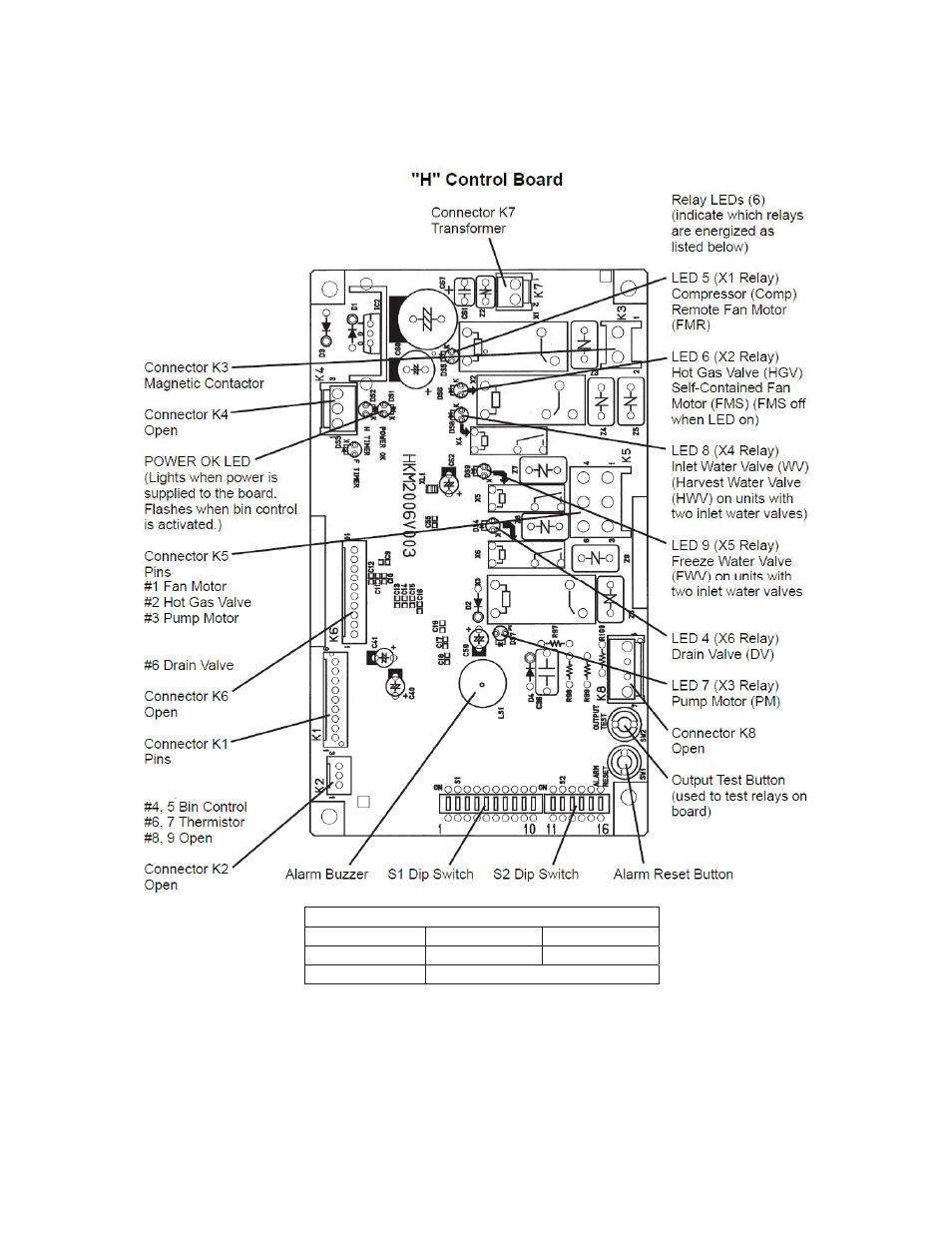

[a] CONTROL BOARD LAYOUT

#4 Harvest Water Valve
#5 Freeze Water Valve

#1, 2, 3 Float Switch

Control Board

Auxiliary Code

V1 or Earlier

V2 or Later

Part Number

P00013-02

P01771-02

Type HKM2006V003
