12
[c] CONTROLS AND ADJUSTMENTS

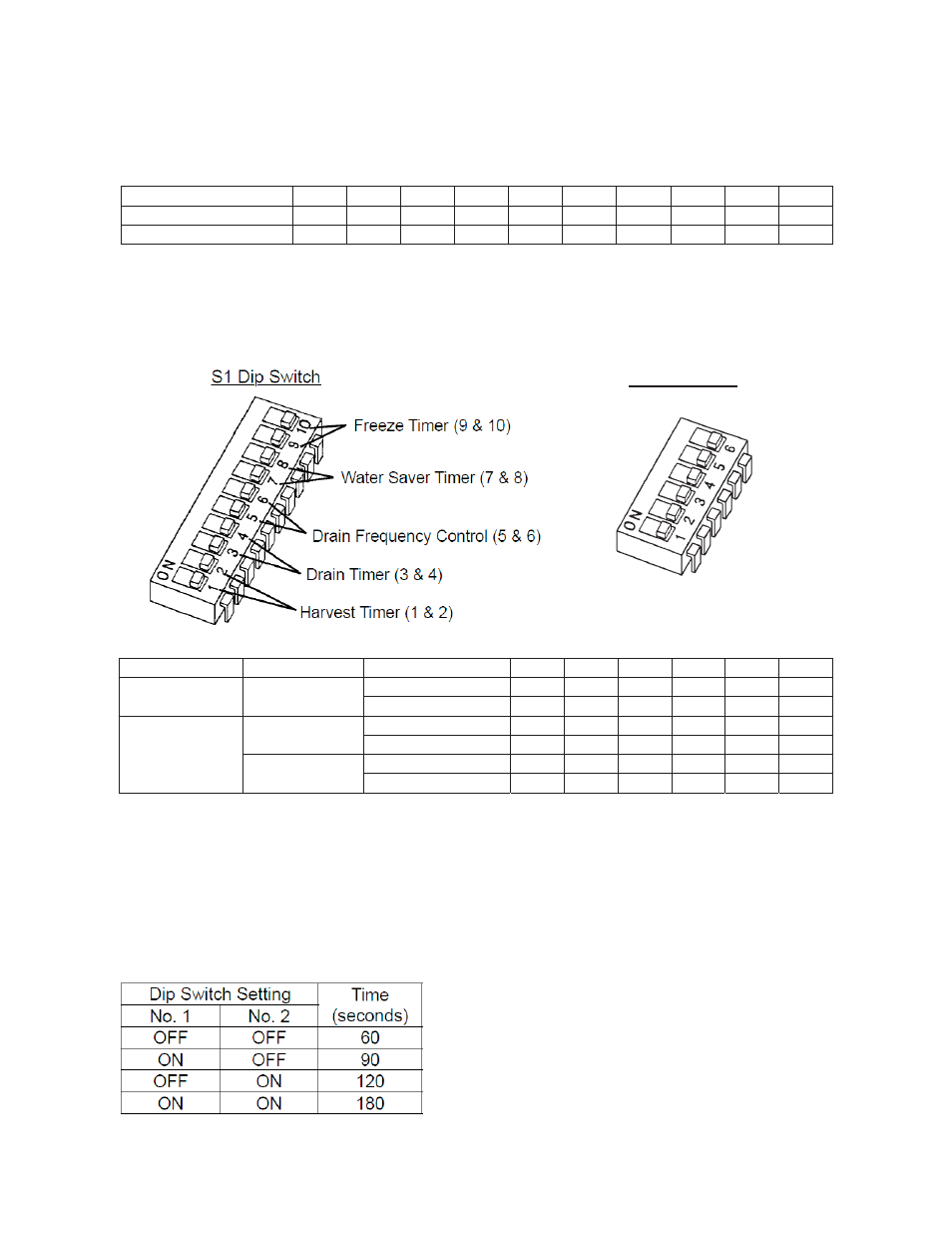

a) Default Dip Switch Settings
The dip switch is factory-adjusted to the following positions:
S1 Dip Switch No. 1 2 3 4 5 6 7 8 9 10
KMD-410MAH OFF OFF OFF OFF ON ON ON ON OFF OFF
KMD-410MWH OFF OFF OFF OFF ON ON ON ON ON OFF
S2 Dip Switch
* Functions of S2 dip switch nos. 2
through 6 depend on program version.
Do not adjust the S2 dip switch. These must be left in the factory default position, or the unit
will not operate properly.
b) Harvest Timer (S1 dip switch 1 & 2)
Used for adjustment of the harvest timer. The harvest timer starts counting when the
thermistor reads a certain temperature at the evaporator outlet.
Control Board Program Ver. S2 Dip Switch No. 1 2 3 4 5 6
KMD-410MAH ON OFF ON OFF OFF ON
P00013-02 2.5 or earlier
KMD-410MWH ON OFF ON OFF OFF ON
KMD-410MAH ON ON ON OFF OFF ON
3.1
KMD-410MWH ON ON ON OFF OFF ON
KMD-410MAH ON ON ON OFF OFF OFF
P01771-02
3.2
KMD-410MWH ON ON ON OFF OFF OFF
