7) Replace the panels in their correct positions.
8) Turn on the power supply.
11. PUMP MOTOR
1) Turn off the power supply.
2) Remove the panels and front insulation.
3) Disconnect the connector of the pump motor lead.
4) Remove the thumbscrew securing the pump motor.
5) Remove the hose band connecting the discharge hose.
6) Slide the pump motor at right slightly and lift it up towards you.

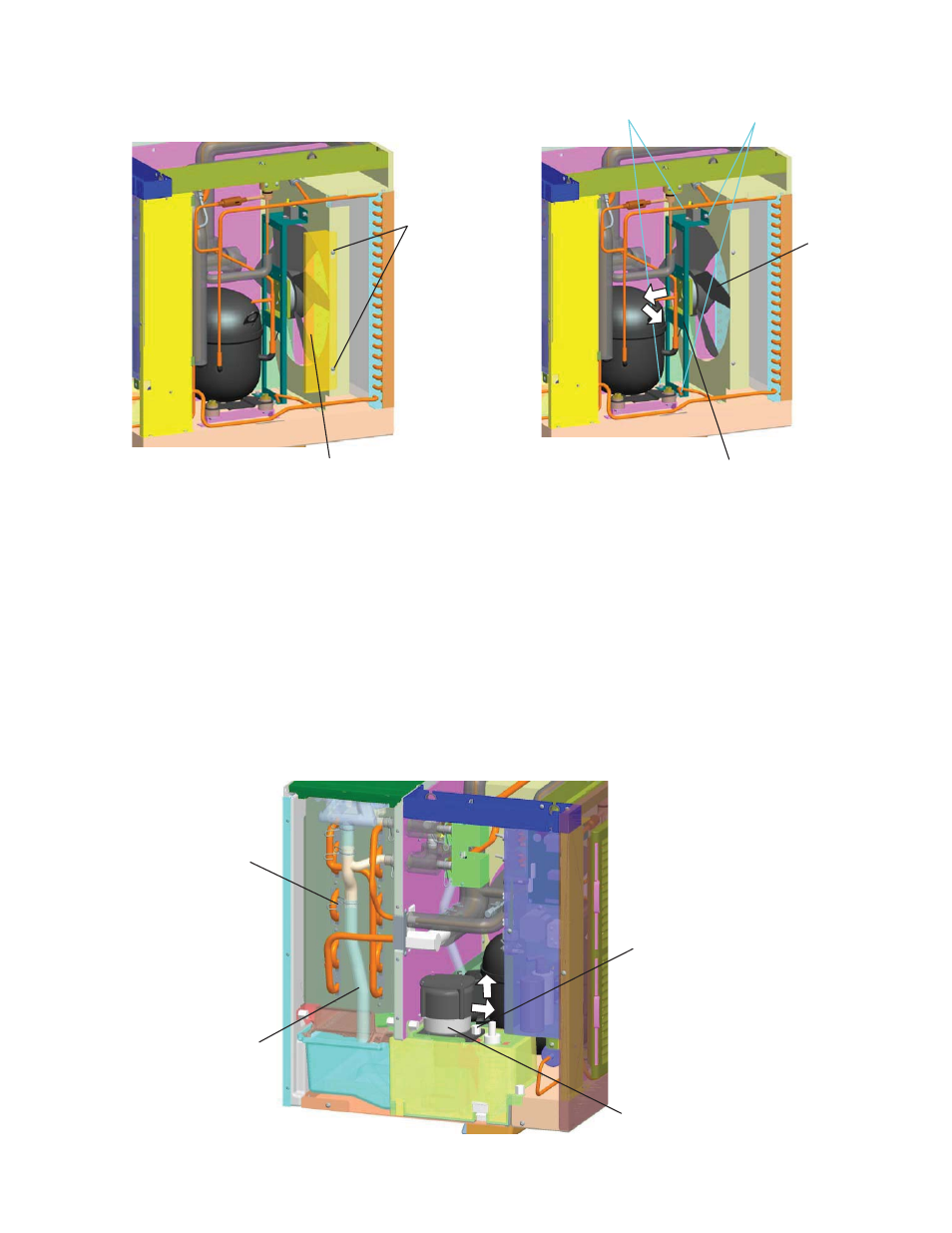

Screw
Fan Blade Cover
Screw
(Loosen) Screw
(Remove)
Fan Motor
Fan Motor Bracket
Thumbscrew
Pump Motor
Hose Band
Discharge Hose
