Camera Parts
NOTE Refer to the pages in parentheses after the part names
for more information about those parts.

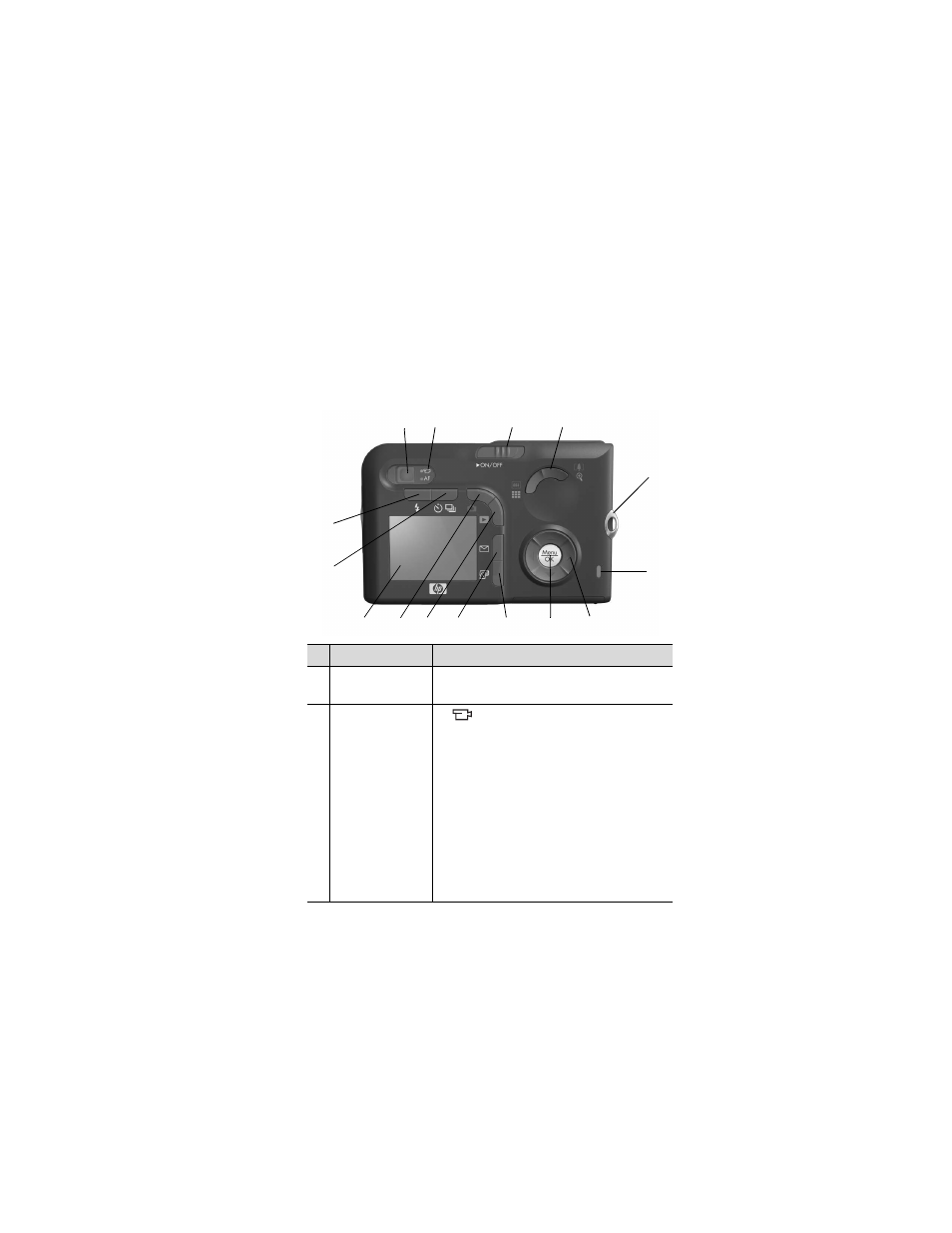

Back of the Camera
# Name Description
1 Viewfinder
(page 31)
Allows you to frame the subject of your
pictures or video clips.
2 Viewfinder lights
z
solid red —Video is recording.
z AF solid green —When you press the
Shutter button halfway down, this
light turns on solid when the camera is
ready to take a picture (auto exposure
and auto focus are locked, and the flash is
ready).
z AF blinking green —Either a focus
warning occurred when you pressed the
Shutter button halfway down, the flash is
still charging, or the camera is processing
a picture (see the following NOTE).
10
4
5
6
7 8 9 11
1
13 12
14
15
2 3
