97
SERVICING YOUR OUTBOARD MOTOR

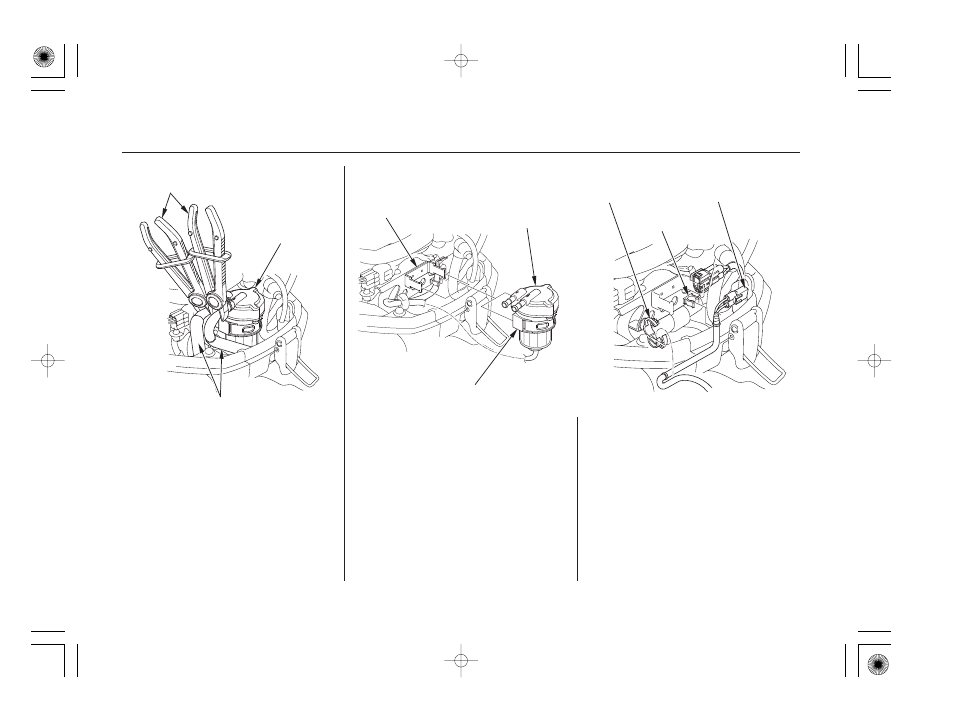

SUSPENSION STRAP
WATER
SEPARATOR
FUEL HOSES
WATER
SEPARATOR
WATER
SEPARATOR
BRACKET
HARNESS
CLIP
CLIP C
WATER LEVEL SENSOR
2P CONNECTOR
HOSE CLIPS
(commercially available)
Pinch the fuel hoses with hose
clips to prevent fuel leakage. Remove the suspension strap from
the water separator bracket; then
remove the strap from the
separator assembly.
During removal of the separator
assembly, take care not to damage
the wire harness with the separator
bracket.
Disconnect the fuel hoses from the
water separator.
Open the harness clip and remove
the harness from clip C; then
disconnect the water level sensor
2P connector. 3. 4. 5.
6.
