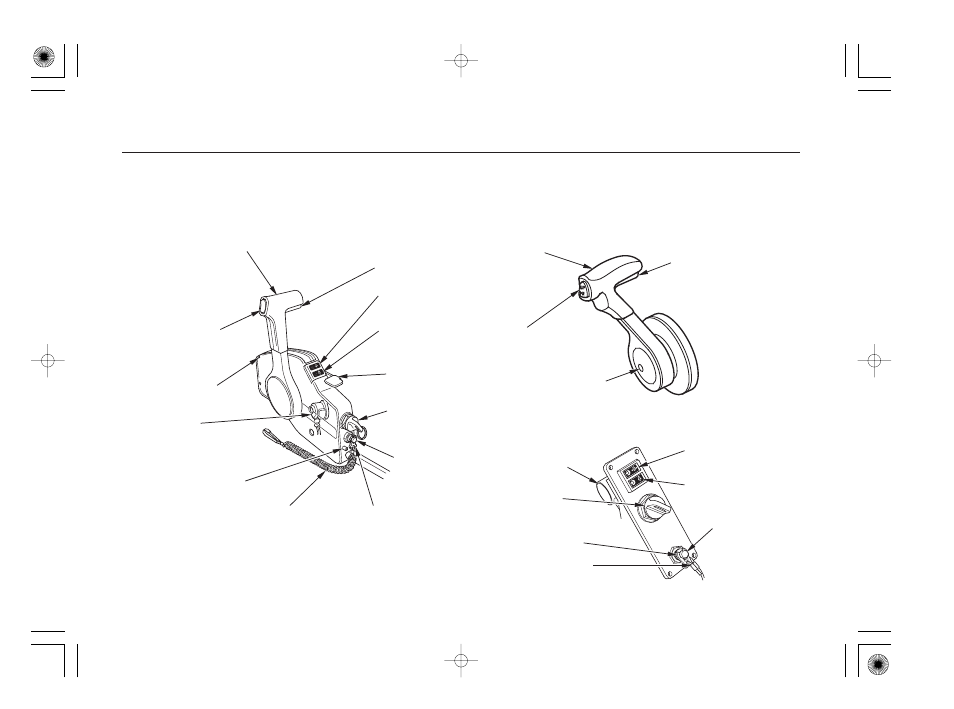

Remote Controls (optional equipment)
CONTROLS AND FEATURES
FAST IDLE
LEVER
IGNITION
SWITCH
POWER TRIM/TILT
SWITCH
CONTROL LEVER
FRICTION ADJUSTER
BUZZER
(inside)
(SIDE-MOUNT REMOTE CONTROL)
GEARSHIFT/THROTTLE
CONTROL LEVER GEARSHIFT/THROTTLE
CONTROL LEVER
LANYARD SWITCH CLIP
SPARE SWITCH
CLIP
NEUTRAL RELEASE
LEVER
OIL PRESSURE
INDICATOR
OVERHEAT
INDICATOR
FAST IDLE BUTTON
NEUTRAL RELEASE
LEVER
POWER TRIM/TILT
SWITCH
BUZZER
IGNITION
SWITCH
EMERGENCY
STOP SWITCH
LANYARD
EMERGENCY
STOP SWITCH
OVERHEAT
INDICATOR
OIL PRESSURE
INDICATOR
(PANEL-MOUNT REMOTE CONTROL)
CONTROL PANEL
(for PANEL-MOUNT type)
EMERGENCY STOP
SWITCH CLIP
