Heat & Glo • VRT-AUB • 2123-980 Rev. J • 2/13 74
Service Parts
VRTIKL-AUB
Beginning Manufacturing Date: Mar 2011
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance please provide model
number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
14
Valve Plate Assembly N 2123-008
Valve Plate Assembly P 2123-009
14.1 Log Bracket 7031-282
14.2
Pilot Assembly N
Pre T0021039 2198-014
Post T0021039 2090-012
Pilot Assembly P
Pre T0021039 2198-015
Post T0021039 2098-013
14.3 Pilot Bracket 2123-140
14.4 Burner Support 7031-279
14.5 3-Hole Grommet 2118-420
14.6 Valve Bracket 2189-117
14.7 Flex Ball Valve Assembly 2098-320A
14.8 Burner Shelf 2123-126
14.9
Valve N 2166-302
Valve P 2166-303
14.10 Male Connector Pkg of 5 303-315/5
14.11 Jumper Wire 2187-198
14.12 Battery Pack** 4067-223
14.13 Module, Gray 2166-306
14.14 Wire Harness 2166-304
14.15 Flex gas Connector 303-320A
Orifi ce N (#39C) 582-839
Orifi ce P (.057C) 582-057
**Fuse for battery pack can be sourced locally, not a warranty item. Specs are 500mA~10A 3/4” long

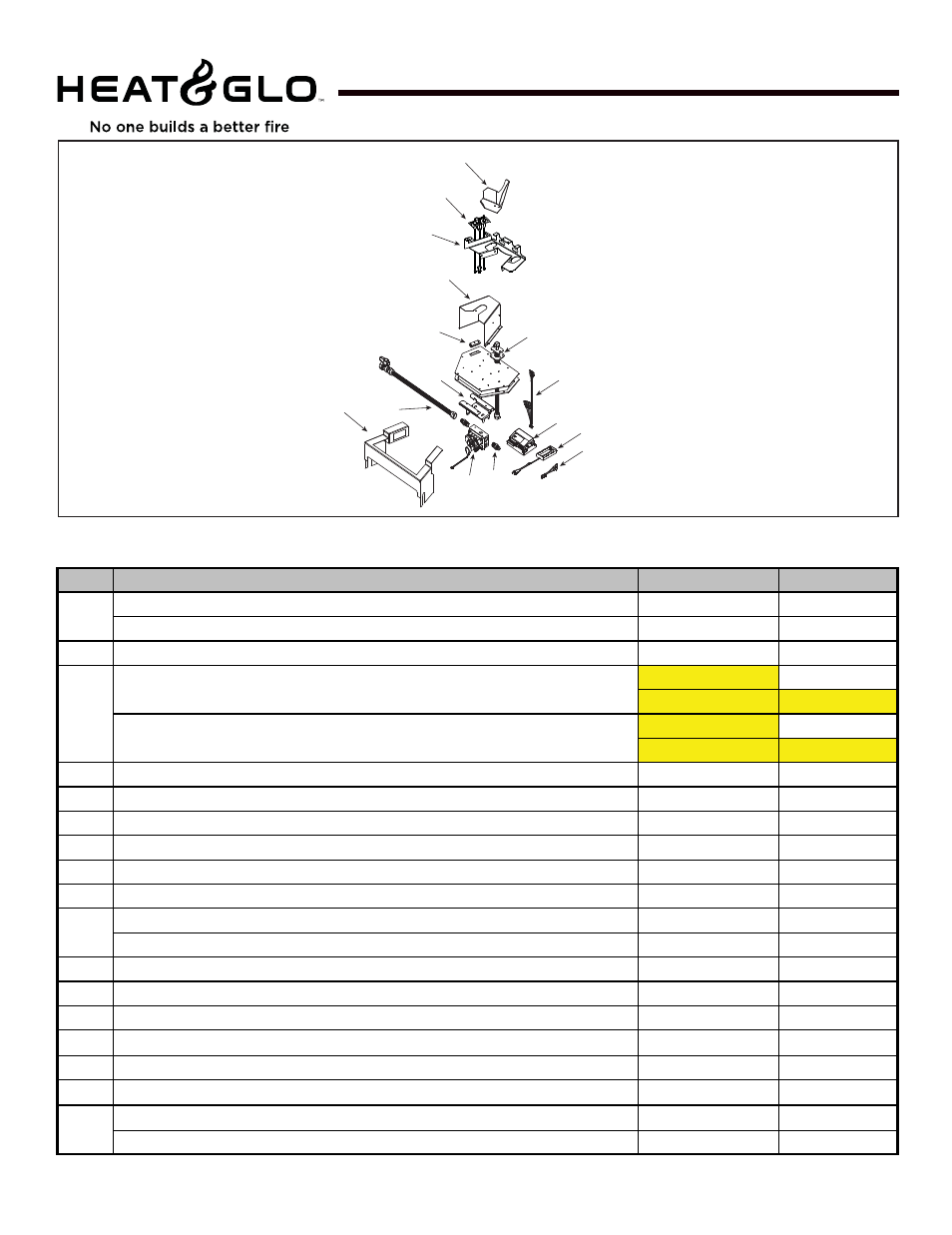

#14 Valve Assembly 14.1
14.2
14.3
14.4
14.5
14.6
14.7 14.8
14.9 14.10
14.11
14.12
14.13
14.15
14.14
