D. Vent Components Diagrams

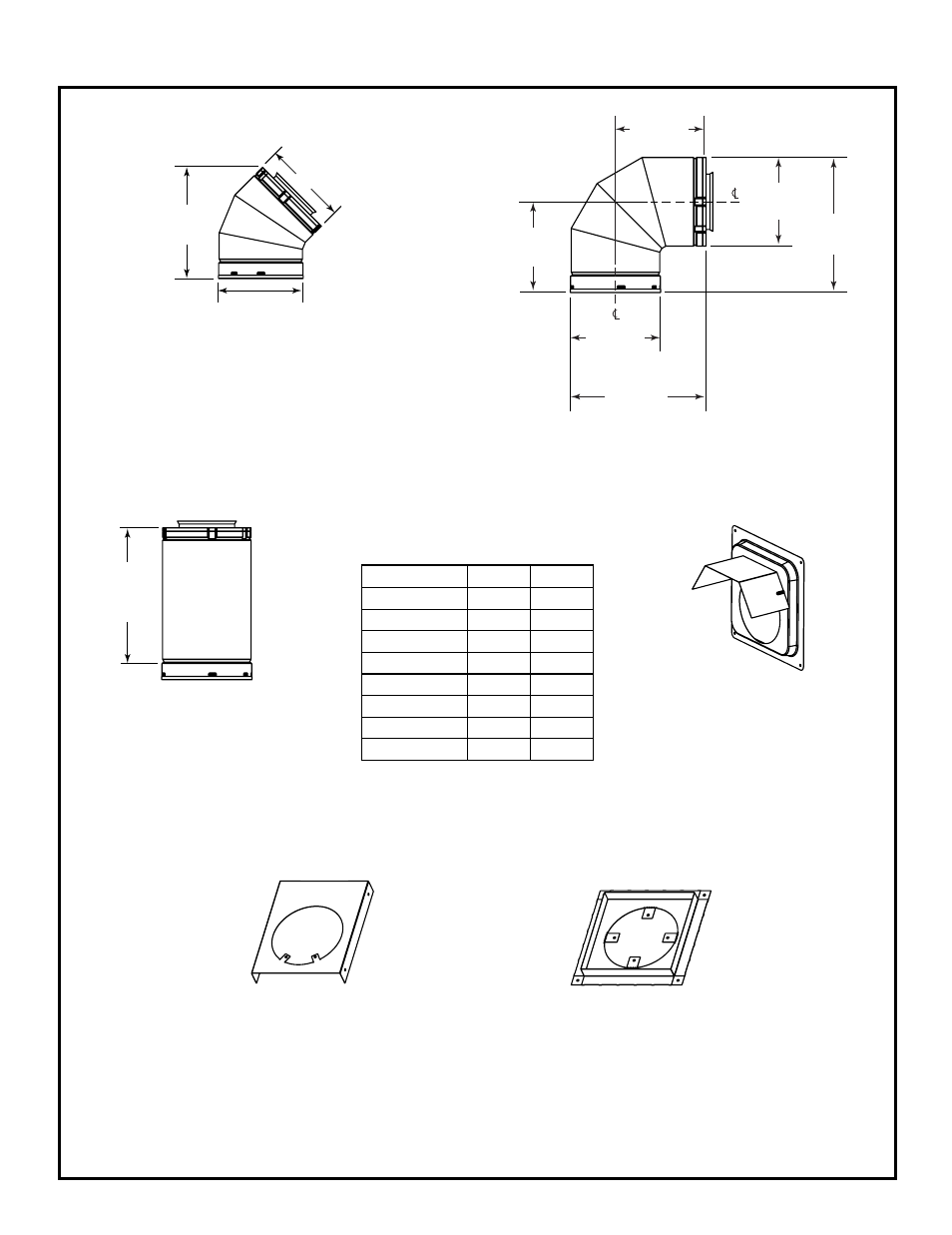

Figure 14.3 SLP Series Vent Components
Effective Height/Length
Pipe inches mm
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305
8-3/4 in.
222 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
SLP45
45° Elbow
Effective
Height/
Length
SLP-PIPE
SLP-HVS
Horizontal Pipe
Support
SLP-FS
Ceiling Firestop
SLP-WS
Wall Shield Firestop
6 in.
152 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
9-7/8 in.
251 mm
6-1/2 in.
165 mm
9-1/4 in.
235 mm
SLP90
90° Elbow
