Heat & Glo • VRT-AUB • 2123-980 Rev. J • 2/13 42
F. Installing the Baffle
The baffle is shipped wrapped, inside the firebox. Install
the baffle with the embedded “T” side up, place it on top
of the brackets on the inside of the firebox, ensuring back
edge of baffle makes contact with the back of the firebox.

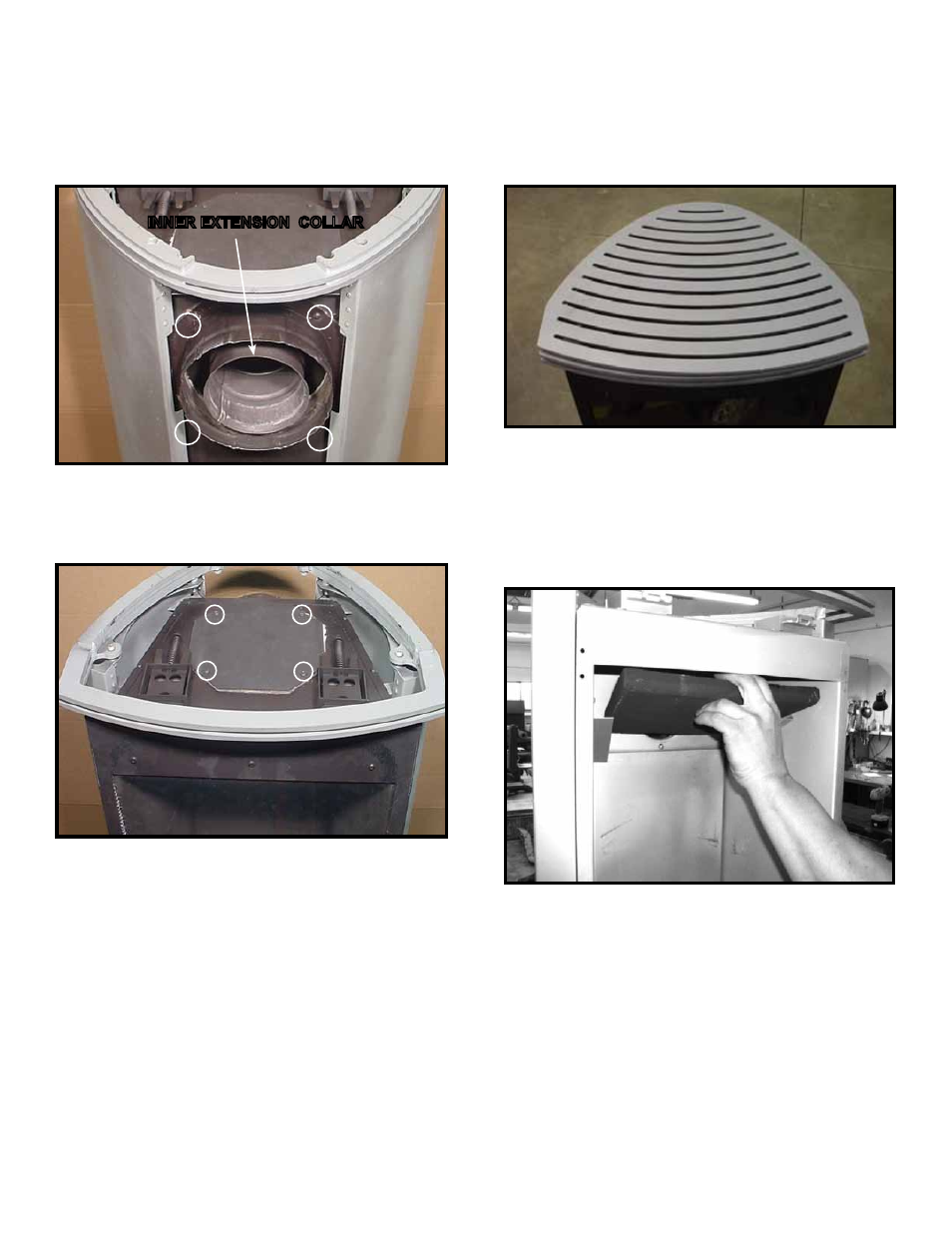

Figure 9.11
7. Install the cover plate with gasket to the top of gas stove
with screws previously removed ( Figure 9.9).
Figure 9.9
ON BACK OF APPLIANCE:
6. Remove the four screws from the cover plate on rear
of gas stove. Set cover plate aside. Retain screws.
(See Figure 9.8). Attach DV adapter collar in its place.
Install the inner extension collar.
Figure 9.8
ON TOP OF APPLIANCE:
8. Install the new back panel (without hole) to the rear of
gas stove. Replace the Allen head screws removed in
Step 3 to hold the back panel in place.
9. Install the new top as shown in Figure 9.10.
Figure 9.10
INNER ExTENSION COLLAR
