25 Heat & Glo • VRT-AUB • 2123-980 Rev. J • 2/13

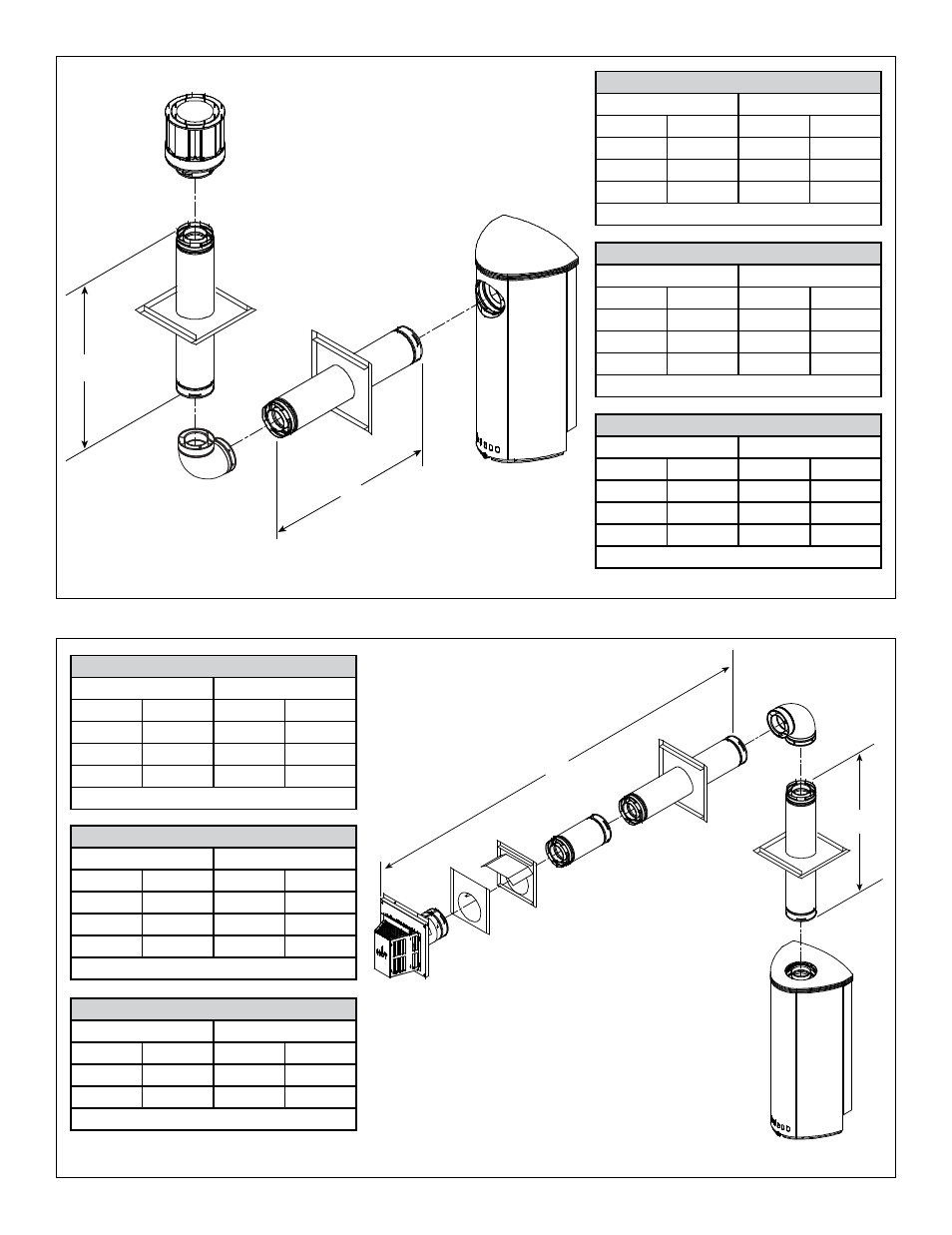

Figure 7.4
Figure 7.5
V
H
H
V
Natural Gas • One 90° Elbow System
V Minimum H Maximum
1-1/2 ft. 457 mm 4-1/2 ft. 1.37 m
3 ft. 914 mm 9 ft. 2.74 m
4-1/2 ft. 1.37 m 13-1/2 ft. 4.12 m
6 ft. 1.83 m 16 ft. 4.88 m
V + H = Max. 38 ft. (11.58 m) H Max. = 16 ft. (4.88 m)
Natural Gas • One 90° Elbow System
V Minimum H Maximum
1-1/2 ft. 457 mm 4-1/2 ft. 1.37 m
3 ft. 914 mm 9 ft. 2.74 m
4-1/2 ft. 1.37 m 13-1/2 ft. 4.12 m
6 ft. 1.83 m 16 ft. 4.88 m
V + H = Max. 36 ft. (10.97 m) H Max. = 16 ft. (4.88 m)
Propane • One 90° Elbow System
V Minimum H Maximum
1-1/2 ft. 457 mm 3 ft. 914 mm
3 ft. 914 mm 6 ft. 1.83 m
4-1/2 ft. 1.37 m 9-1/2 ft. 2.88 m
6 ft. 1.83 m 12 ft. 3.66 m
V + H = Max. 38 ft. (11.58 m) H Max. = 12 ft. (3.66 m)
Propane • One 90° Elbow System
V Minimum H Maximum
1-1/2 ft. 457 mm 3 ft. 914 mm
3 ft. 914 mm 6 ft. 1.83 m
4-1/2 ft. 1.37 m 9-1/2 ft. 2.88 m
6 ft. 1.83 m 12 ft. 3.66 m
V + H = Max. 36 ft. (10.97 m) H Max. = 12 ft. (3.66 m)
Butane • One 90° Elbow System
V Minimum H Maximum
1-1/2 ft. 457 mm 1-1/2 ft. 457 mm
3 ft. 914 mm 3 ft. 914 mm
4-1/2 ft. 1.37 m 4-1/2 ft. 1.37 m
6 ft. 1,83 m 6 ft. 1.83 m
V + H = Max. 33 ft. (10.06 m) H Max. = 6 ft. (1.83 m)
Butane • One 90° Elbow System
V Minimum H Maximum
4 ft. 1.22 m 3 ft. 914 mm
4-1/2 ft. 1.37 m 4-1/2 ft. 1.37 m
6 ft. 1.83 m 6 ft. 1.83 m
V + H = Max. 33 ft. (10.06 m) H Max. = 6 ft. (1.83 m)
