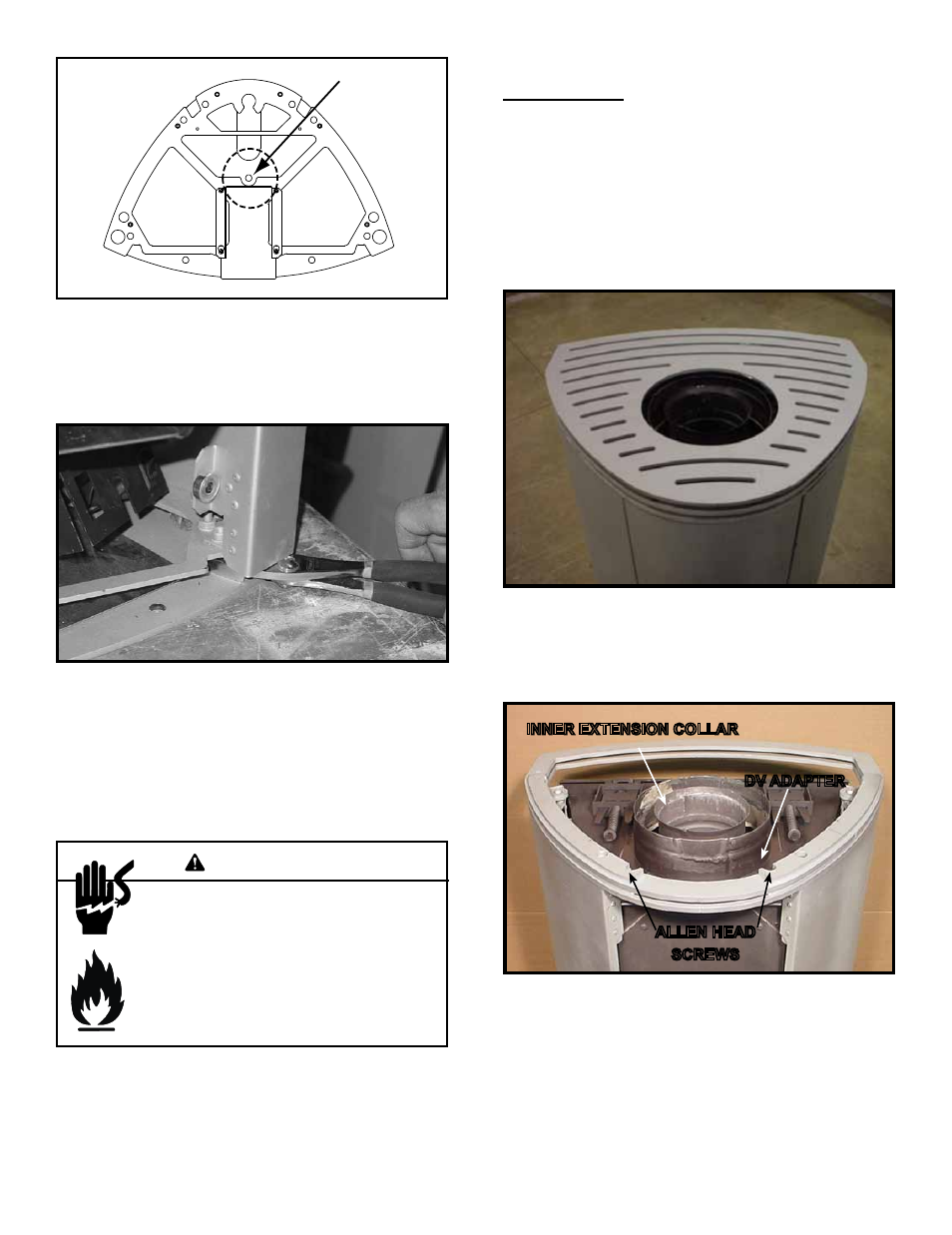

Figure 9.4
The manufacturer recommends securing the lag bolt
from the component bag in the center hole in the bottom
plate (clearance hole). This bolt will help to prevent tip-
ping forward.
CLEARANCE
HOLE
Figure 9.5
Using pliers, adjust the counter screws to level the gas
stove.
D. Accessories
Install approved accessories per instructions included
with accessories. Refer to Section 12F for appropriate
accessories.
4. Remove the inner extension collar (Shown in Figure
9.7) and set aside.
5. Remove the four screws from the DV adapter collar
( Figure 9.7). Set aside DV adapter collar and screws.
3. Remove and retain the Allen head screws that hold the
solid back panel in place ( Figure 9.8). Remove and
discard the solid back panel.
Figure 9.7
E. Top to Rear Flue Conversion
KIT CONTENTS: Top cover (without hole);
Back panel (with hole).
1. Remove the front door assembly by pulling bottom of
front away from gas stove and lifting it off of the hooks
on top of the gas stove. Set door aside.
ON TOP OF APPLIANCE:
2. Remove the top plate with hole and discard. (
Figure
9.6)
Figure 9.6
INNER ExTENSION COLLAR
DV ADAPTER
ALLEN HEAD
SCREWS
Shock or fire risk.
Use ONLY optional accessories approved for
this gas stove.
• Using non-listed accessories voids warranty.
• Using non-listed accessories may result in a
safety hazard.
• Only Hearth & Home Technologies approved
accessories may be used safely.
WARNING
