Heat & Glo • VRT-AUB • 2123-980 Rev. J • 2/13 40
9

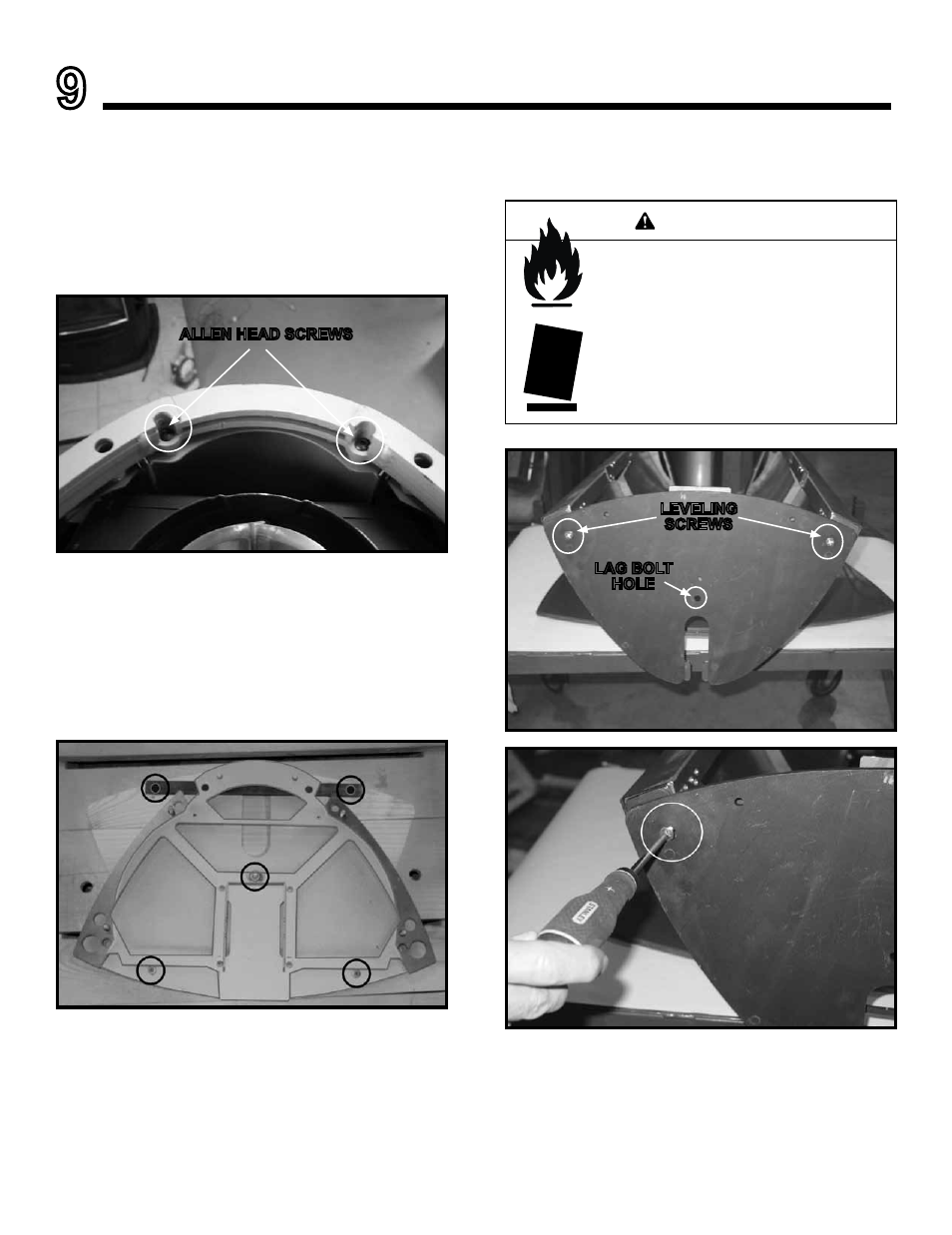

Appliance Setup
A. Remove Shipping Materials
Remove shipping materials from inside or underneath the
firebox.
The gas line is shipped inside back panel. To access the
gas line remove the top plate from the gas stove. Remove
and retain the two Allen head screws that hold the back
panel in place. Replace panel when finished.
B. Unbolting Appliance from the Pallet
The gas stove is bolted and screwed to the pallet for
shipping. Use a 1/2 in. (12.7) socket to remove the bolt
in center of bottom plate. Use a Phillips screwdriver to
remove the two screws in the front of the bottom plate and
the two screws holding the metal strap across the back of
the gas stove. Refer to Figure 9.2 for locations.
Figure 9.1
Figure 9.2
C. Leveling and Bolting Down the Appliance
SECURING THE GAS STOVE
IS REQUIRED.
Figure 9.3
After unbolting the gas stove from the pallet, insert two
1/4 in.- 20 x 1-1/2 in. (6.3 mm - 20 x 38 mm) (or equiva-
lent) counterscrews.
Using pliers, adjust the counterscrews to level the gas
stove.
ALLEN HEAD SCREWS
LEVELING
SCREWS
LAG BOLT
HOLE
Fire Risk.
Odor Risk.
Tipping Risk
• Install gas stove on a stable, level platform/
floor strong enough to support gas stove
without tipping.
• USE wood flooring, ceramic tile, brick hearth
or high pressure laminate flooring applied
directly over the sub-flooring material.
WARNING
