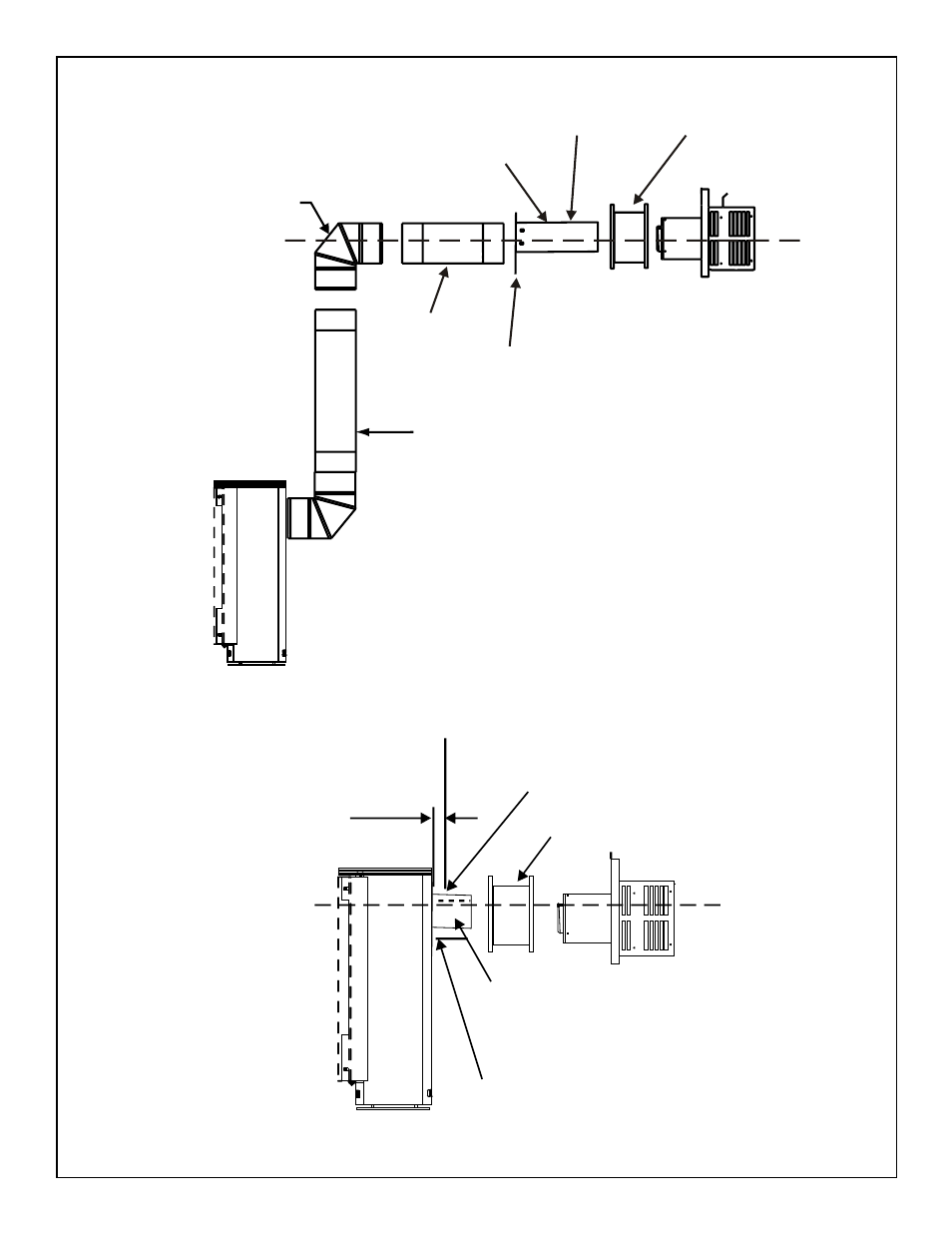

FIG. A 90 DEGREE ELBOW
FIG. B MINIMUM CLEARANCE
CENTER LINE
TRIM RING
HEAT SHIELD OVER
TOP HALF OF PIPE
INTERIOR WALL
2 in. (51 mm) clearance
from rear of stove
WALL THIMBLE
MINIMUM OF 6 in. (152 mm)
OF PIPE THROUGH THE WALL
PIPE LENG TH
PIPE
LENG TH
TRIM
RING
90 ELBO W O
Place m ark w here protrudes through
exterior w all to cut off excess.
USE HEAT SHIELD OR WALL THIM BLE
CENTER
LINE
Figure 7.14
