36

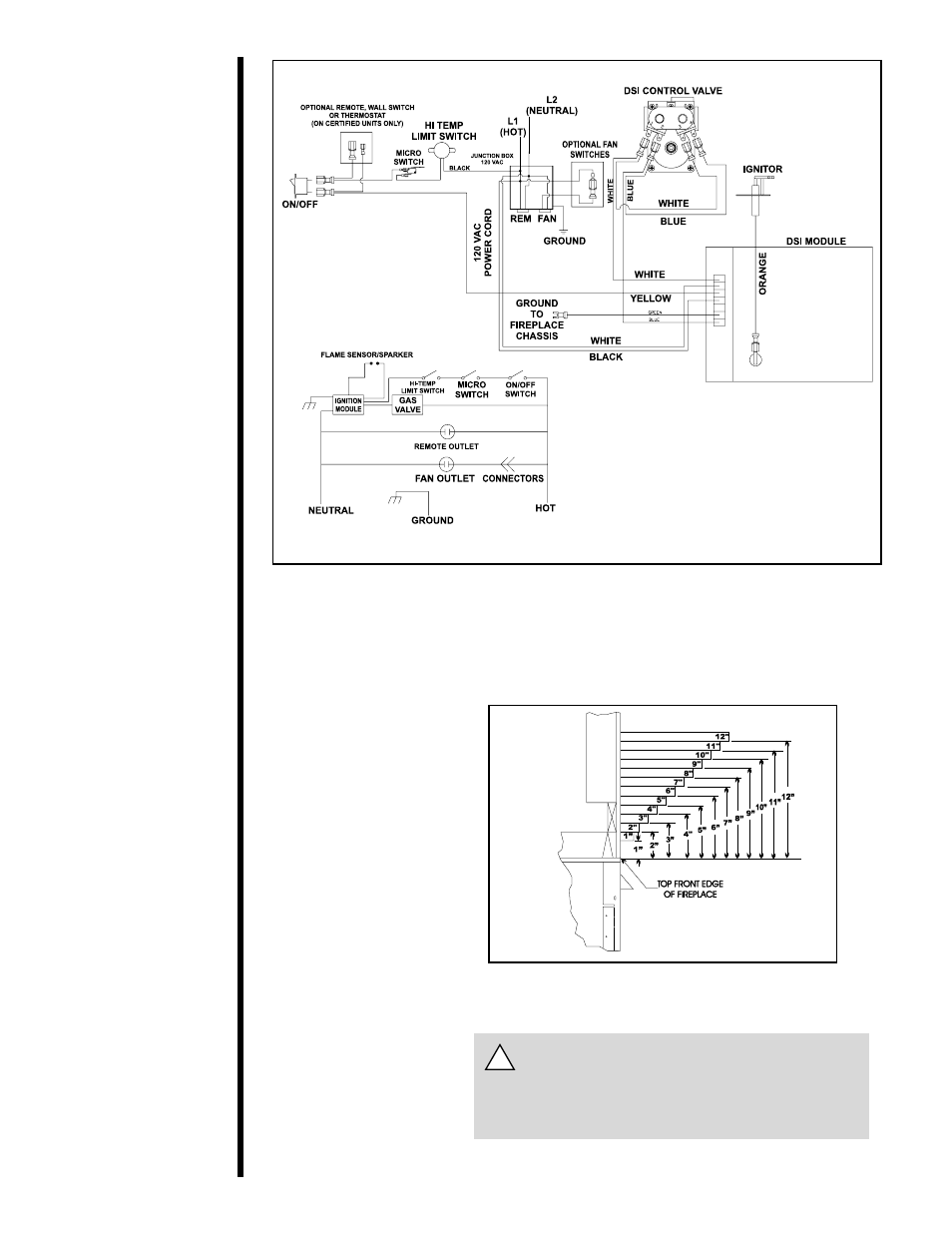

Figure 33. Direct Spark Ignition (DSI) Wiring Diagram
Step 9
Finishing
The following diagram shows the minimum vertical
and corresponding maximum horizontal dimensions
of fireplace mantels or other combustible projections
above the top front edge of the fireplace. See Figures
3 and 4 for other fireplace clearances.
Only non-combustible
materials may be used
to cover the black
fireplace front.
NOTE:
The microswitch
is found on model
6000ARCH only.
NOTE: All Dimensions
shown in inches.
!
Figure 34. Minimum Vertical and Maximum
Horizontal Dimensions of
Combustibles above Fireplace
WARNING
WHEN FINISHING THE FIREPLACE,
NEVER OBSTRUCT OR MODIFY THE
AIR INLET/OUTLET GRILLES IN ANY
MANNER.
