Page 27

For round cap

termination:
1. Secure the 8-5/8

inch (219 mm) pipe,

using the exterior

pipelock hole on the

round flange of the

wall firestop.

For trapezoidal

termination:
1. Screw the cap to the

exterior wall through

the flanges in the

cap.

2. Seal the joint be-

tween the pipe and

the exterior firestop.

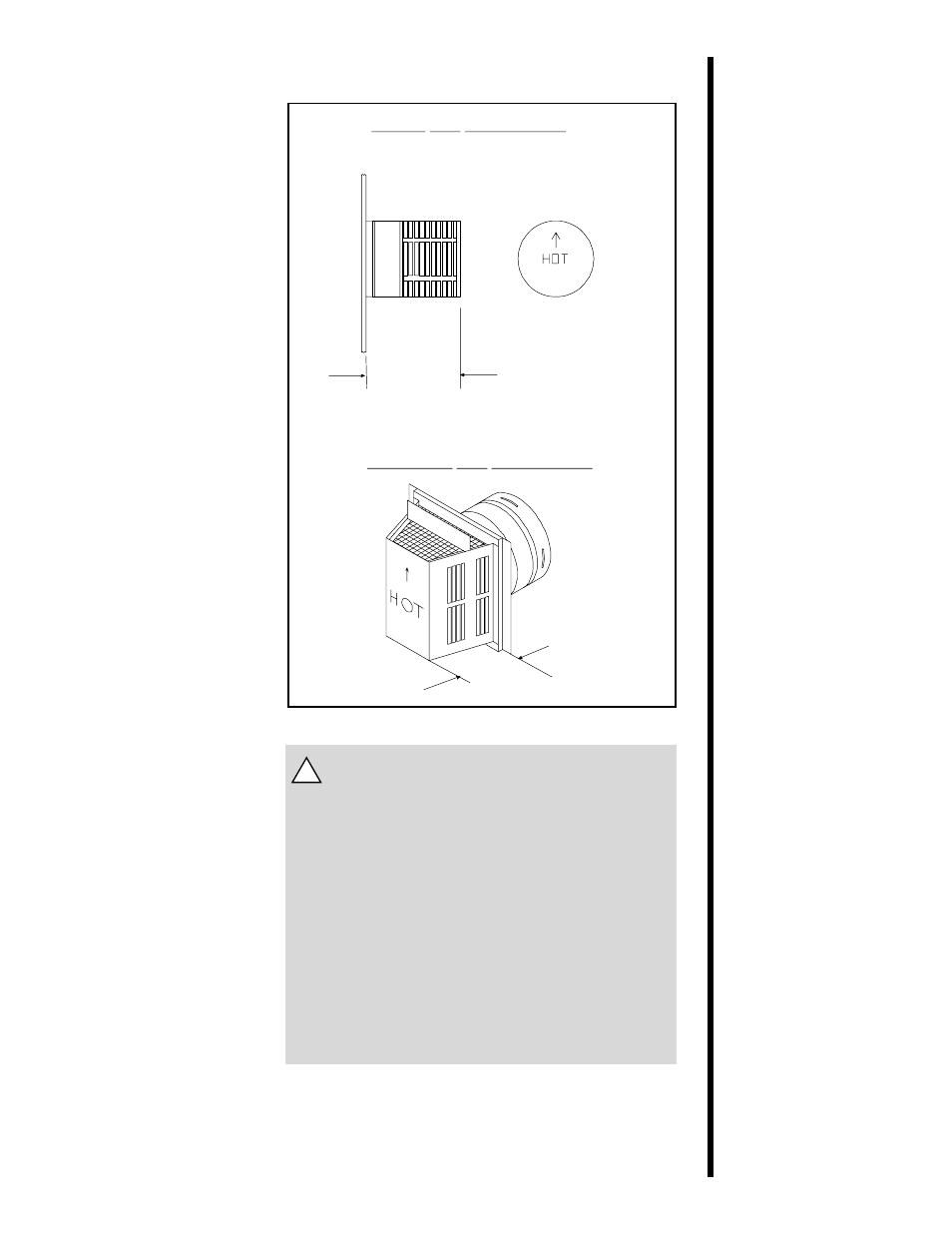

Figure 25. Round & Trapezoid Termination Caps

WARNING: THE BOTTOM OF THE

VENT TERMINATION CAP MUST BE A

MINIMUM OF 12 INCHES (305MM)

ABOVE GROUND LEVEL (GRADE). THE

TOP OF THE CAP MUST BE A MINIMUM

OF 18 INCHES (457MM) BELOW COM-

BUSTIBLE MATERIAL, SUCH AS A

DECK, AND THE SIDE OF THE CAP

MUST BE A MINIMUM OF 6 INCHES

(152MM) AWAY FROM A PARALLEL OUT-

SIDE WALL. VENTING TERMINALS

SHALL NOT BE RECESSED INTO A

WALL OR SIDING. SEE THE FOLLOW-

ING DIAGRAM FOR VENT TERMINA-

TION CLEARANCES.

ROUND CAP TERMINATION

PERFORATION CANNOT BE

INSIDE THE WALL

7 1/2"

(191mm)

MINIMUM

TRAPEZOID CAP TERMINATION

7 1/4"

(184mm)
