19
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
NOTE: H + H
1
= 20' MAX. (6.2m)
V + V
1
+ H + H
1
= 40' MAX. (12.4m)
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H
1
(FT.)
1' MIN.(305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H + H
1
= 20' MAX. (6.2m)
NOTE: V+V
1
+H+H
1
= 40' MAX. (12.4m)

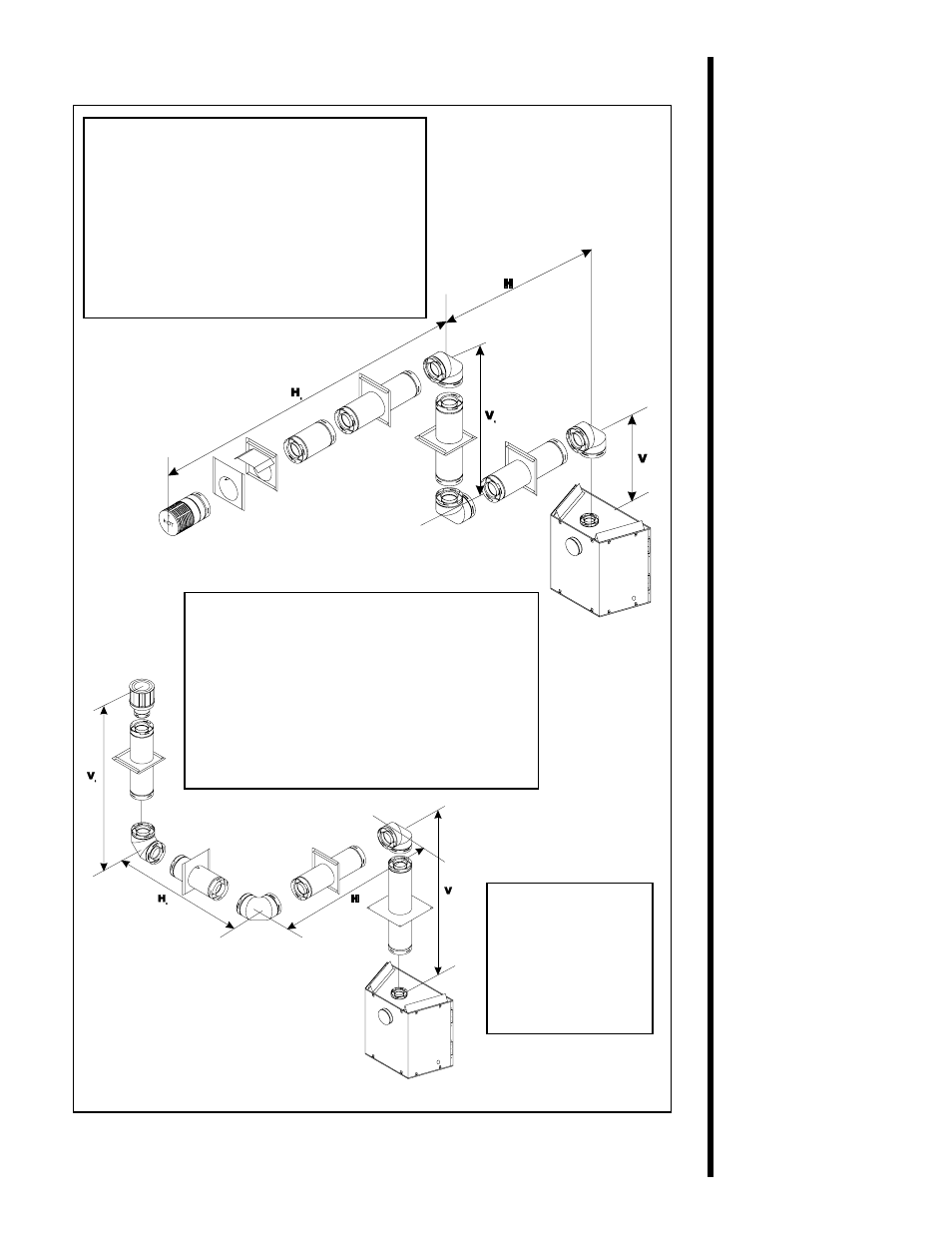

Figure 14. Venting with three 90° elbows
NOTE: MODEL
6000ARCH
A 12-inch length of
straight vent pipe
MUST be the first
vent component at-
tached to the unit.
