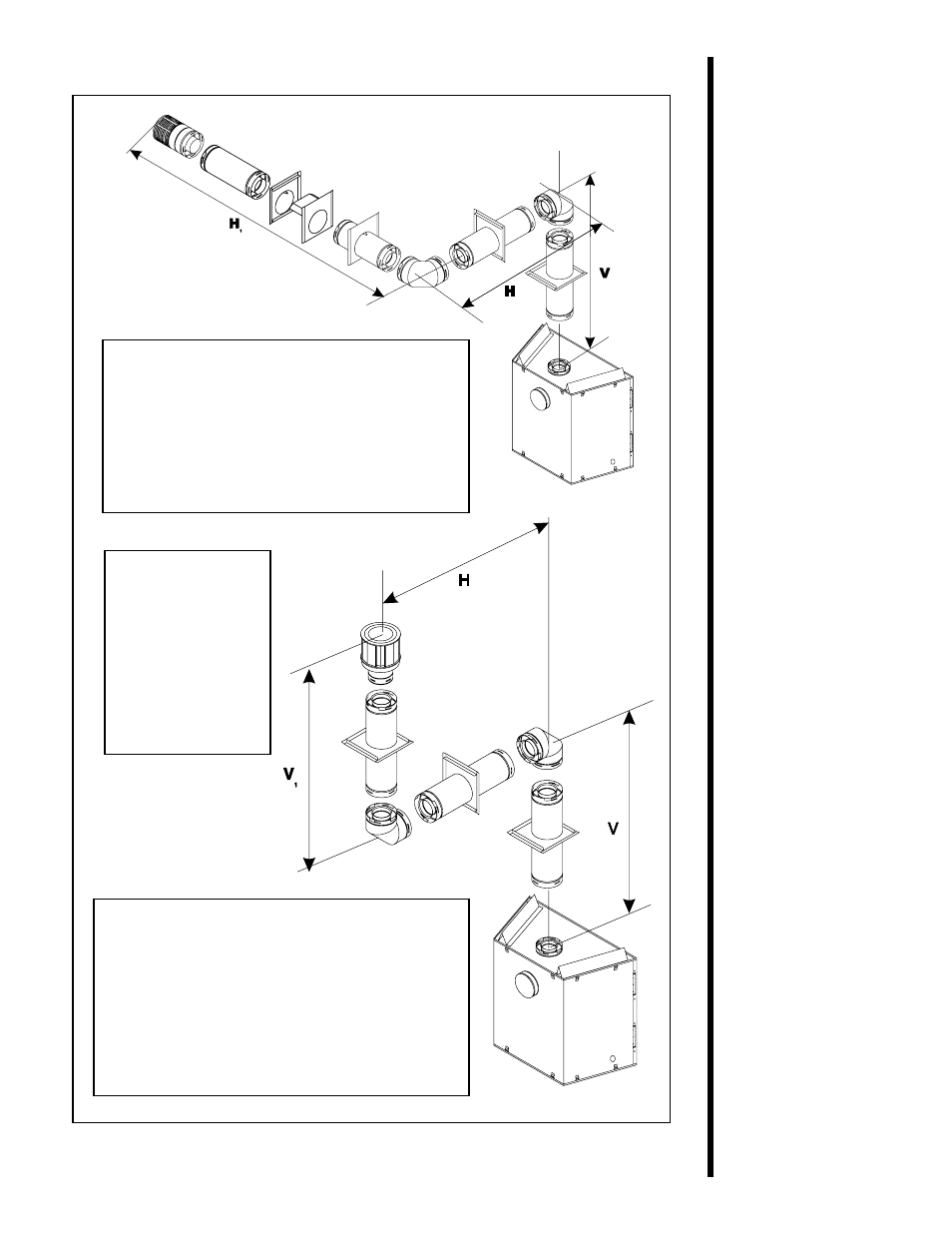

VENTING WITH TWO (2) 90 o ELBOWS
V (FT.) H + H
1
(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H
1
= 40' MAX.(12.4m) H+H
1
= 20´ MAX. (6.2m)
Figure 12. Venting with Two 90° Elbows
NOTE: MODEL
6000ARCH
A 12-inch length
of straight vent
pipe MUST be
the first vent
component
attached to
the unit.
VENTING WITH TWO (2) 90 o ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX. (4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
H = 20´ MAX. (6.2m)
V+V
1
+H = 40' MAX.(12.4m)
