31
The diagram below shows how to properly position,
level, and secure the fireplace.
1. Place the fireplace
into position.
2. Level the fireplace
from side to side and
from front to back.
3. Shim the fireplace
with non-combus-
tible material, such
as sheet metal, as
necessary.
4. Secure the fireplace
to the framing by
nailing or screwing

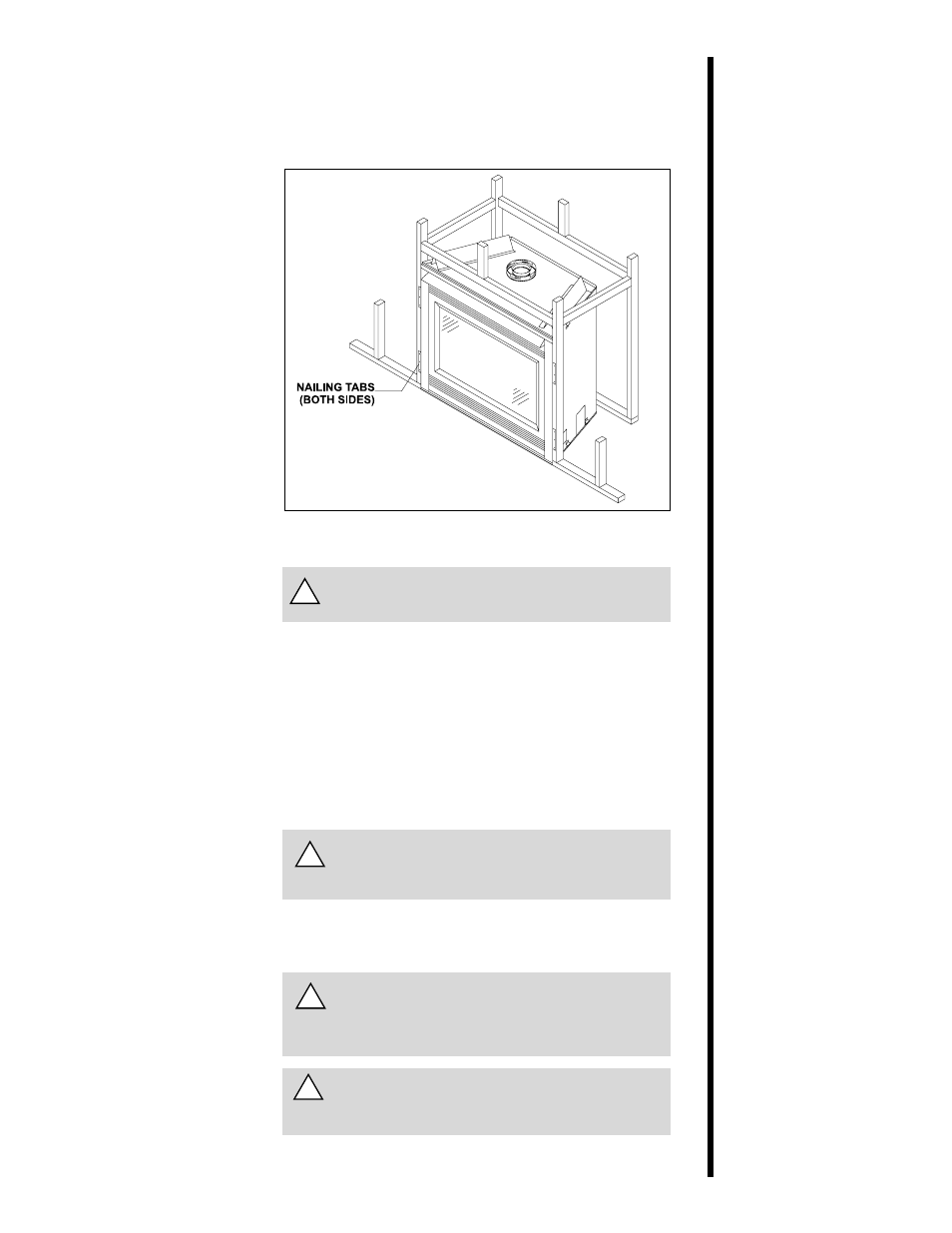

Figure 28. Proper Positioning, Leveling, and
Securing of a Fireplace
Step 5
The Gas Control
Systems
WARNING: THIS UNIT IS NOT FOR
USE WITH SOLID FUEL.
Two types of gas control systems are used with
these models: Standing Pilot Ignition and Direct
Spark Ignition (DSI). Models 6000XLT-CDN and
6000XLS have Standing Pilot Ignition only. Model
6000ARCH has DSI only. Model 6000TR has both
Standing Pilot and DSI systems
Standing Pilot Ignition System
This system includes millivolt control valve, standing
pilot, thermopile/thermocouple flame sensor, and
piezo ignitor.
WARNING: 110-120 VAC MUST NEVER
BE CONNECTED TO A CONTROL
VALVE IN A MILLIVOLT SYSTEM.
Direct Spark Ignition (DSI) System
This system includes a 110V control valve, electronic
module, and spark ignitor/flame sensor.
WARNING: CONTINUOUS 110-120 VAC
SERVICE MUST BE WIRED DIRECTLY
TO THE FIREPLACE JUNCTION BOX
IN A DSI SYSTEM.
WARNING: DIRECT VENT PROPANE
MODELS WITH DSI CONTROL
SYSTEMS CANNOT BE USED IN
!
!
!
!
Step 4
Positioning,
Leveling, and
Securing the
Fireplace
