VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H = 20' MAX. (6.2m)
V + H = 40’ MAX. (12.4mm)

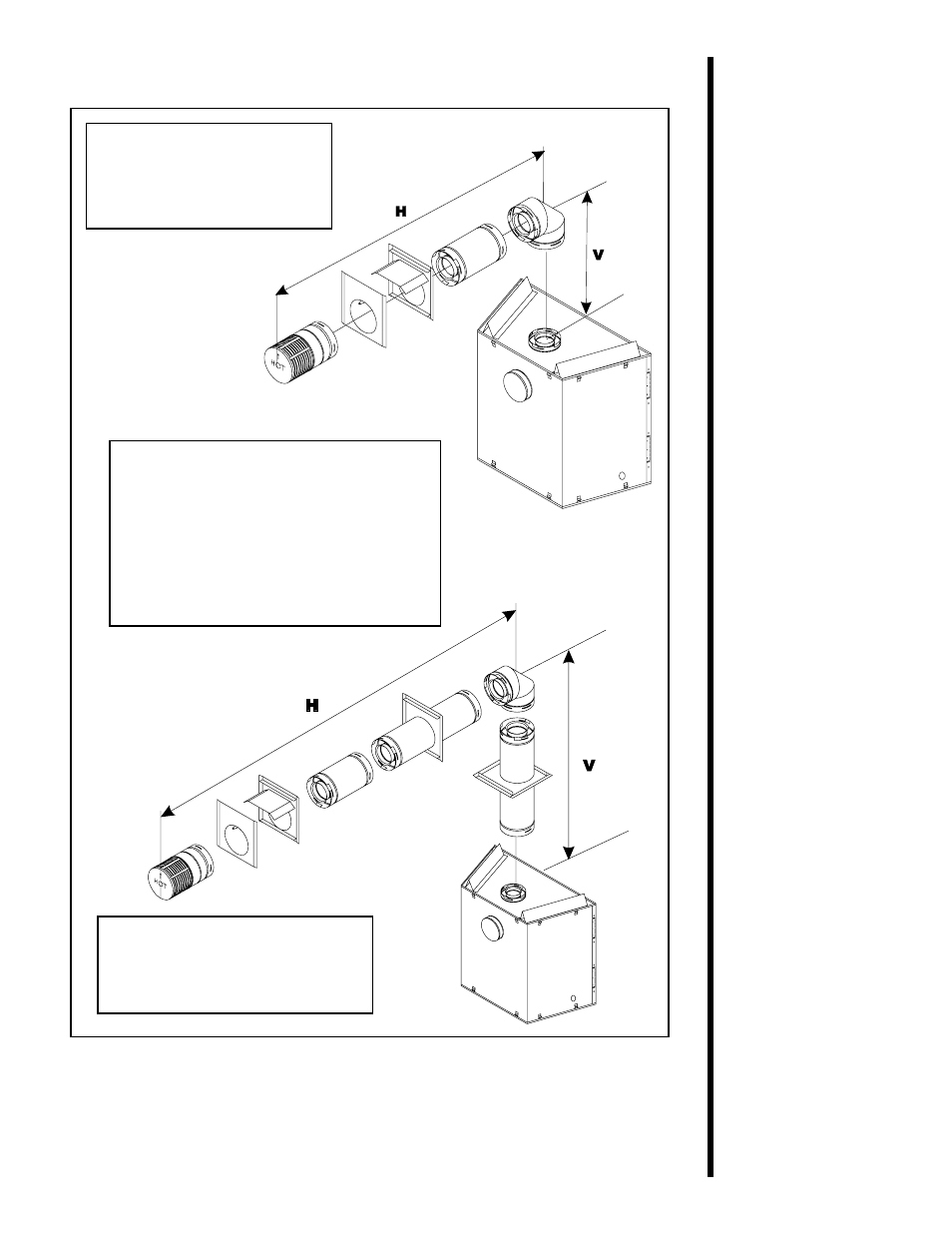

Figure 10. Venting with One 90° Elbow
FOR 6000TR & 6000XLT-CDN
NOTE: If a 90 o elbow is first at-
tached to the unit, the maximum
horizontal run is 3-feet (914mm).
NOTE: For corner installations: A 6-inch (152mm) MINIMUM length of straight
pipe must be attached to the fireplace before 90 o elbow. This will allow the vent
pipe to clear the top standoffs.
NOTE: MODEL 6000ARCH
A 12-inch length of straight vent
pipe MUST be the first vent
component attached to the unit.
