20

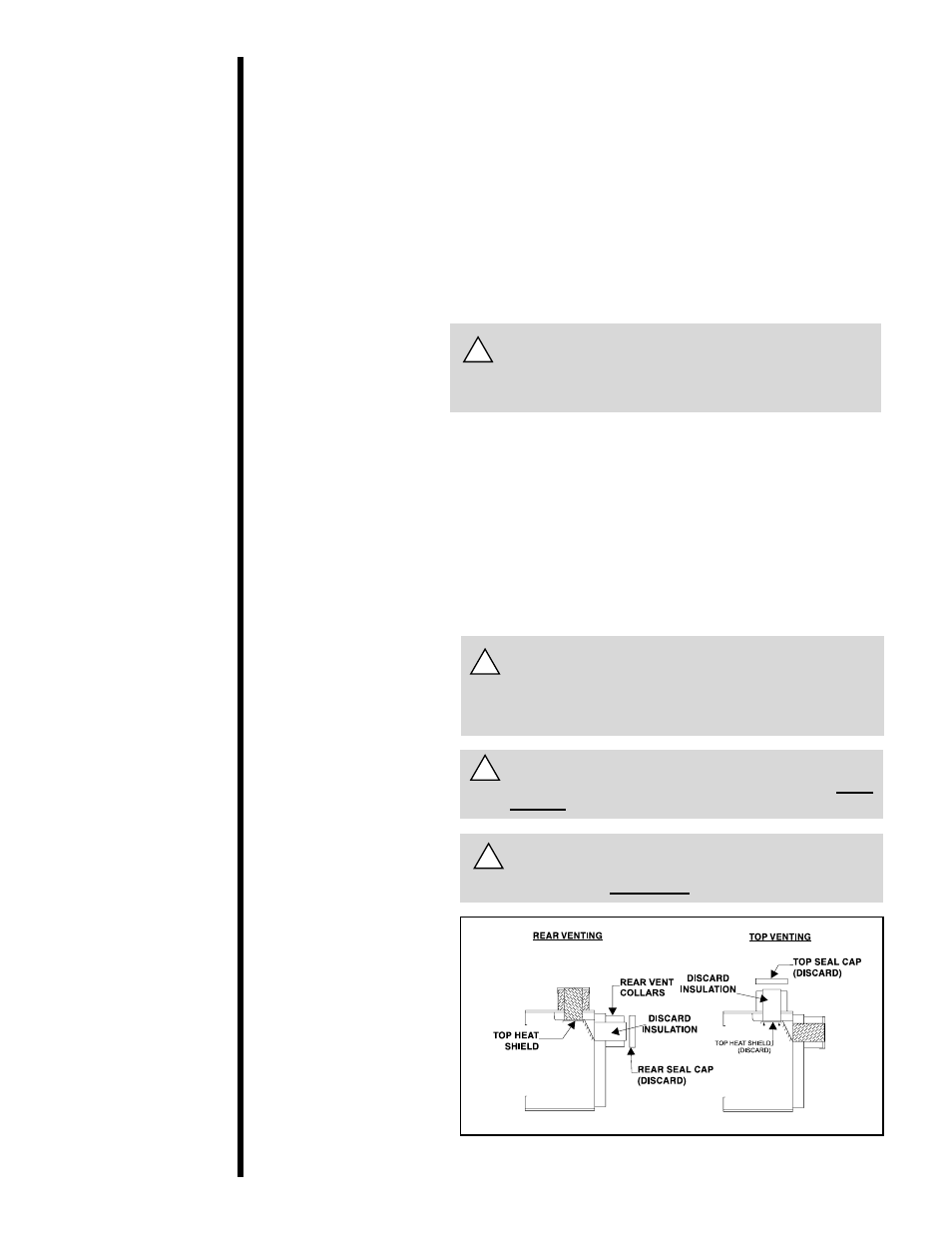

Figure 15 For Model 6000TR
B. Installing Vent Components
For Model 6000TR
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (See Figure 15).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue. Pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAIN ATTACHED
IF THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 15.
Venting Out the Top Vent
Remove the top vent collar seal cap and the two
pieces of insulation inside the top two starting
collars (See Figure 15). Next remove the glass door.
Remove the heat shield from inside the TOP five inch flue
from outside of the firebox.
You have to take the glass off again for positioning the logs
when the unit is finally installed in place and finished
around it. Reinstall the glass door. Attach vent system to
the top starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE
USING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAIN ATTACHED TO THE
REAR VENT COLLARS IF THE VENT SYS-
TEM IS ATTACHED TO THE TOP STARTING
COLLARS. SEE FIGURE 15.
WARNING: YOU MUST LEAVE THE INSU-
LATION IN PLACE IN THE SET OF COL-
LARS YOU ARE NOT USING.
!
!
!
!
