Component identification 8

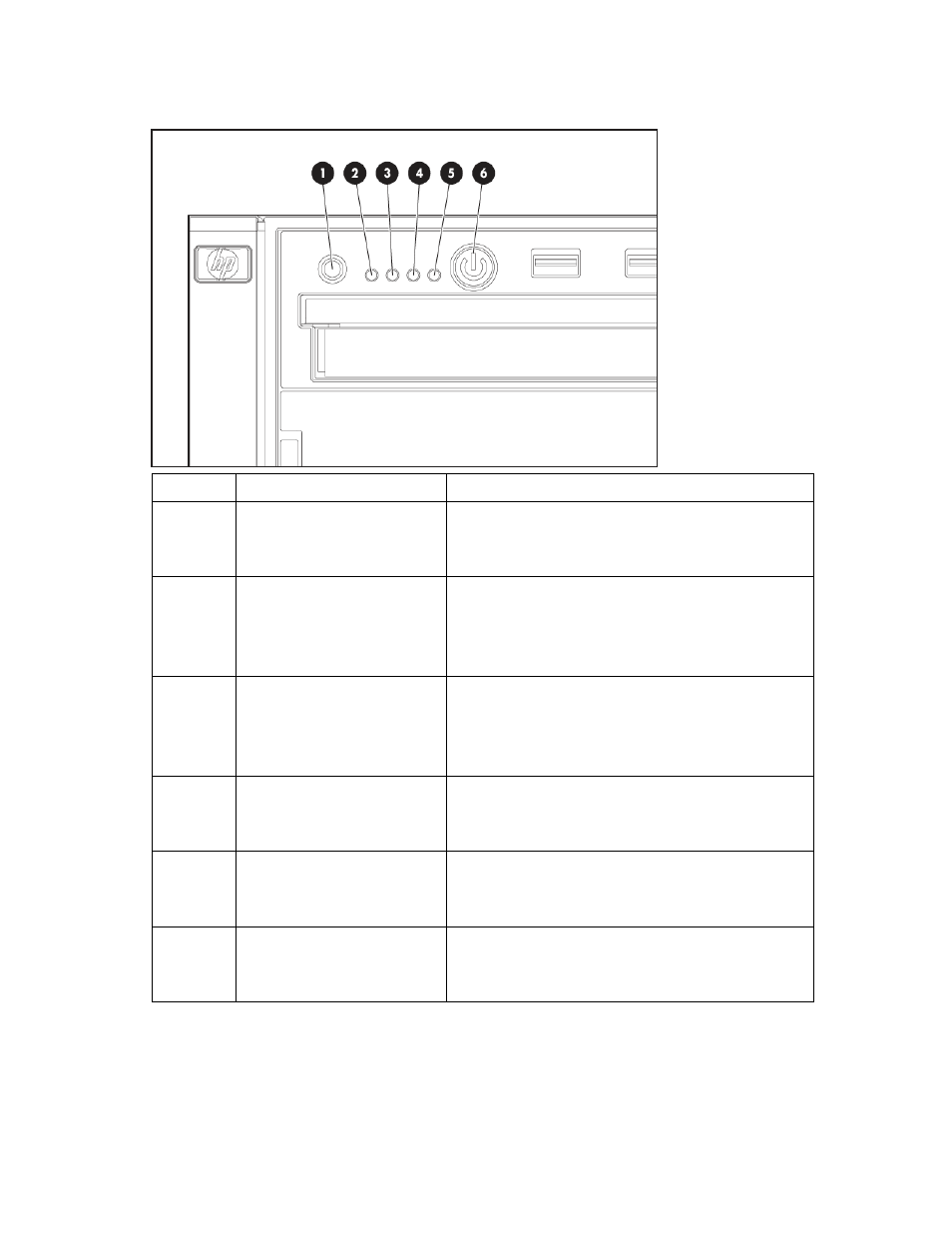

Front panel LEDs and buttons
Item Description Status
1 UID switch and LED Blue—Activated
Blue (flashing)—Server being managed remotely
Off—Deactivated
2 Internal system health LED Green—Normal (system on)
Amber (flashing)—Internal system health degraded
Red (flashing)—Internal system health critical
Off—Normal (system off)
3 External system health LED Green—Normal (system on)
Amber (flashing)—External system health degraded
Red (flashing)—External system health critical
Off—Normal (system off)
4 NIC 1 link/activity LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
5 NIC 2 link/activity LED Green—Linked to network
Green (flashing)—Linked with activity on the network
Off—No network connection
6 Power on/Standby button and
LED Amber—System has AC power and is in standby mode.
Green—System has AC power and is turned on.
Off—System has no AC power.
