Hardware options installation 43
4.

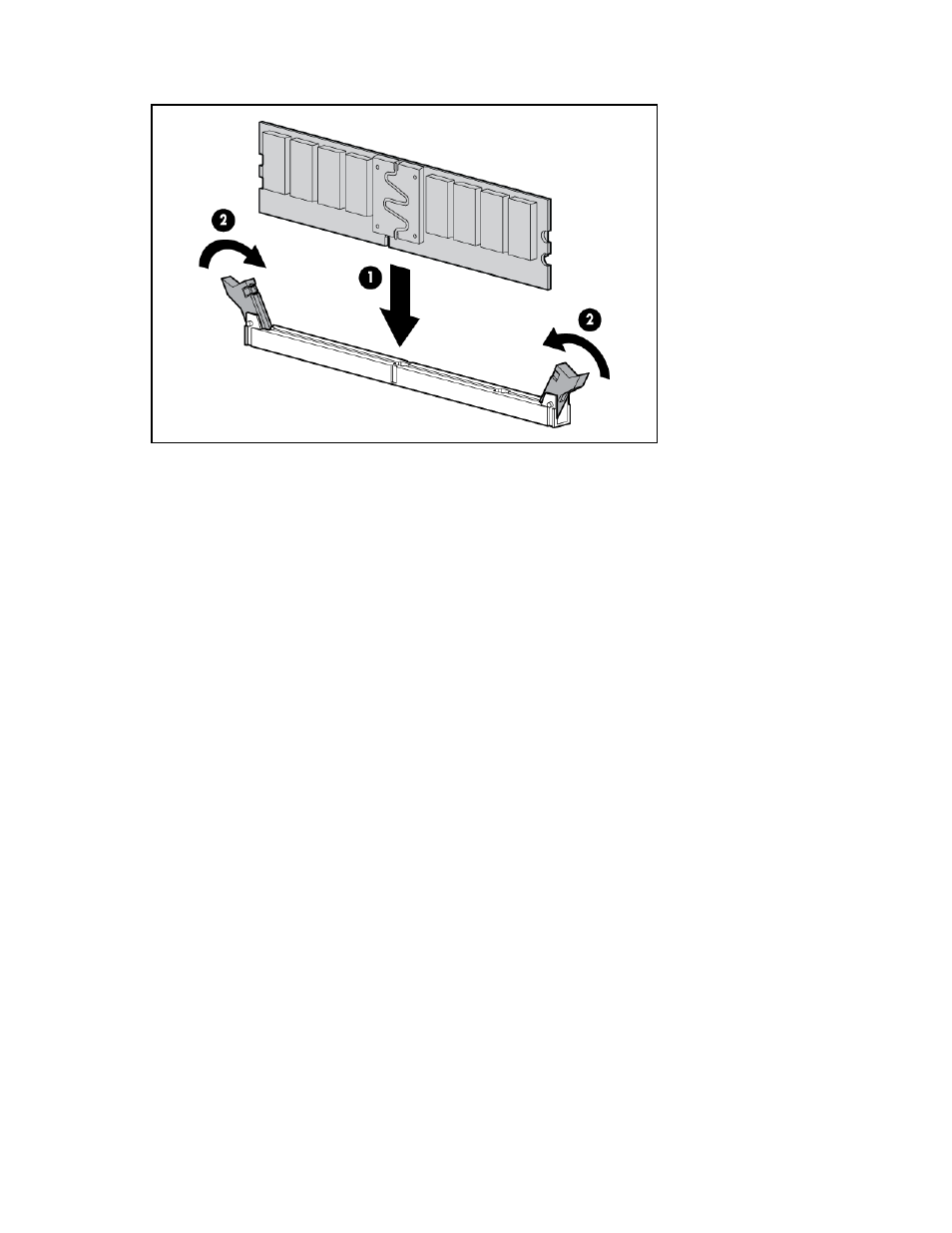

Install the FBDIMM.
5.
If you are installing FBDIMMs in an online spare or mirrored configuration, use RBSU ("
) to configure this feature.
Installing optional memory expansion boards
Installing optional memory expansion boards increases the number of FBDIMM slots in the server to 32.
Use the following guidelines when installing the memory expansion boards:
•
Install memory expansion boards in pairs.
o
Memory expansion boards 1 and 2
o
Memory expansion boards 3 and 4
•
Install memory expansion boards sequentially beginning with boards 1 and 2.
•
Populate memory expansion boards sequentially, beginning with bank A on boards 1 and 2 and
proceeding to bank A on boards 3 and 4.
To install the optional memory expansion boards:
1.
Power down the server (on page
).
2.
Remove the processor memory module, and open the cover ("
3.
Install FBDIMMs on the memory expansion boards.
4.
Install the memory expansion boards.
