Setting up a tower model server
Follow these steps to set up a tower model server. If you are going to install the server into a rack, see the
rack installation section ("
Installing the server into the rack " on page 31 ).

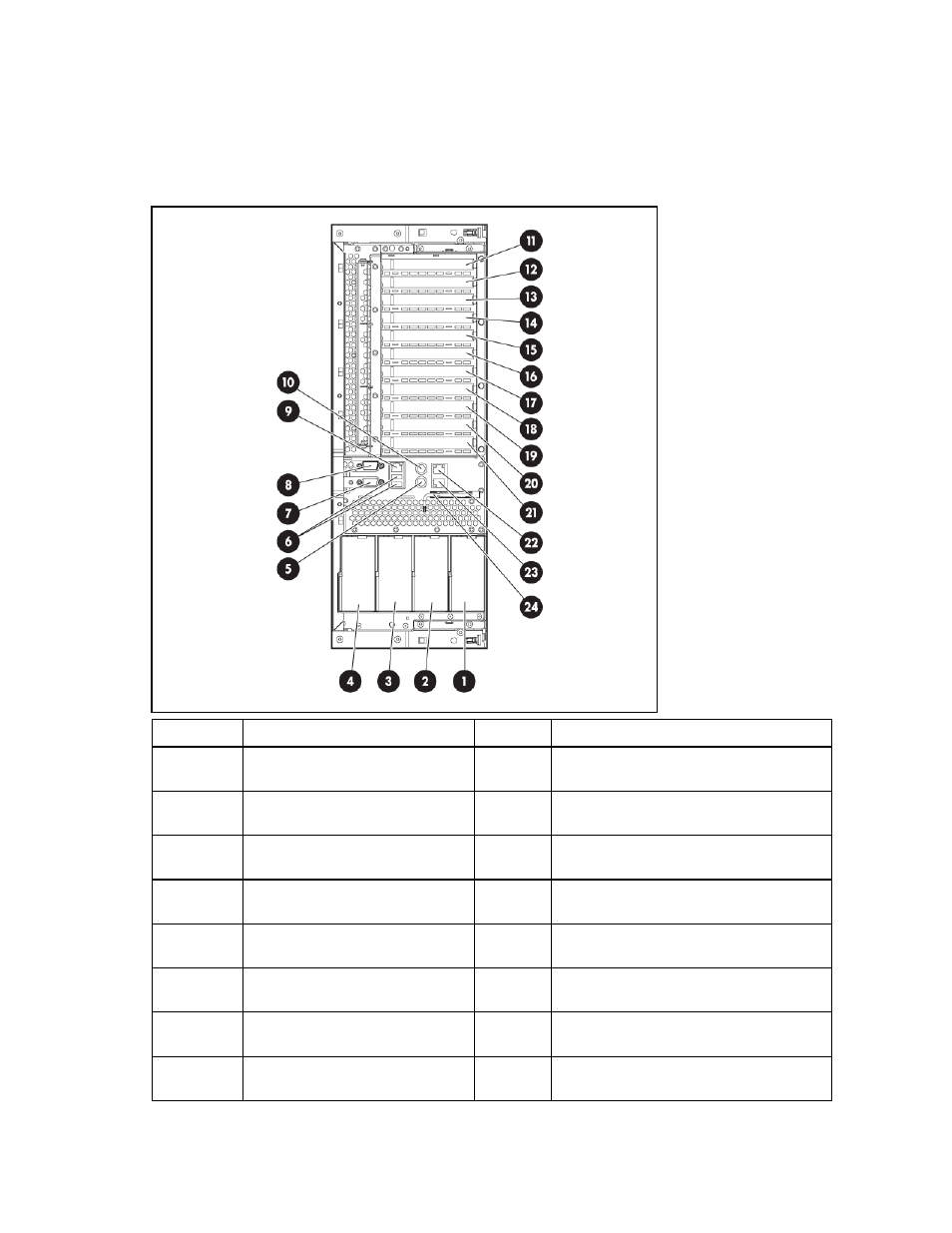

1. Connect the peripheral devices to the server.
Item Description Item Description
1 Power supply bay 4 (optional) 13 PCI-X non-hot-plug for PCI Express x8 non-
hot-plug expansion slot 3 (optional)
2 Power supply bay 3 (optional) 14 PCI Express x8 non-hot-plug expansion slot
4
3 Power supply bay 2 15 PCI Express x8 non-hot-plug expansion slot
5
4 Power supply bay 1 16 PCI Express x8 non-hot-plug expansion slot
6
5 Keyboard connector 17 PCI Express x8 non-hot-plug expansion slot
7
6 USB connectors 18 PCI Express x4 non-hot-plug expansion slot
8
7 Video connector 19 PCI Express x4 non-hot-plug expansion slot
9
8 Serial connector 20 PCI Express x4 non-hot-plug expansion slot
10
