4. Use a BIOS Insertion/Removal Tool to extract the BIOS IC from the Logic PCA. See Figure

43 on page 90.

Replacement Procedure
1. Align the Flash BIOS IC with the slot on the Logic PCA. The IC is keyed to fit correctly.
2. Press down firmly on the IC to ensure a proper connection. See Figure 44.
1. Replace the remainder of the OmniBook components.

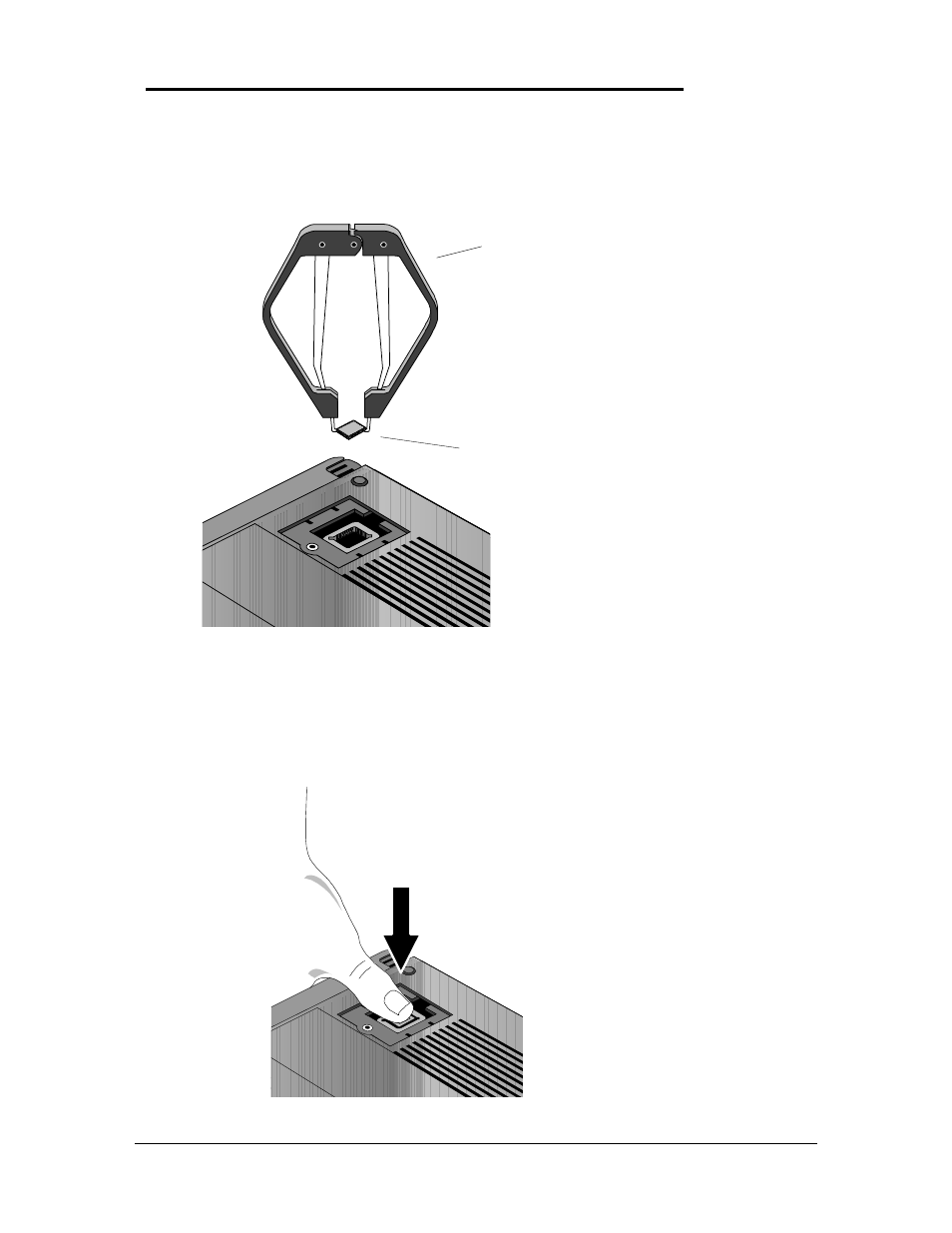

Figure 43 - Flash BIOS IC Removal

Figure 44 - Replacing the Flash BIOS IC

Programmable Flash BIOS IC
F1321-60907 (OB5500 only)
F1371-60903 (OB2000 & OB5700)

BIOS Insertion/Removal Tool
F1371-60904
