Mezzanine card option – HP BL685C G6 User Manual

Page 41

background image

Hardware options installation 41

6.

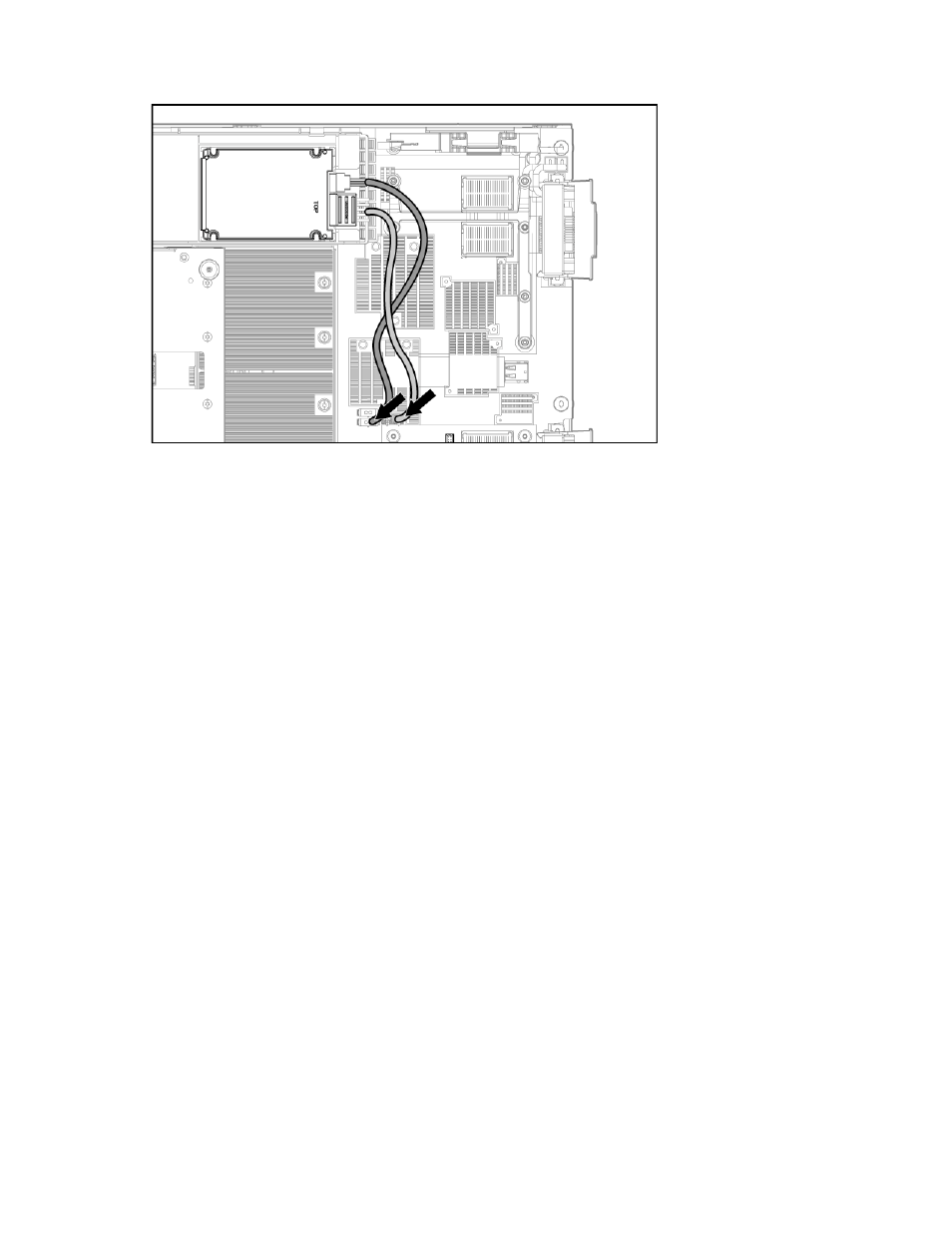

Connect and route the cables.

7.

Install the access panel (on page

17

).

8.

Install the server blade ("

Installing a server blade

" on page

29

, "

Remove the server blade

" on page

16

).

Mezzanine card option

Optional mezzanine cards enable network connectivity and provide Fibre Channel support. For

mezzanine card locations, see "System board components (on page

10

)."

For mezzanine card signal mapping, see the HP ProLiant BL685c G6 Server Blade Installation Instructions

that ship with the server blade.
Optional mezzanine cards are classified as Type I mezzanine cards and Type II mezzanine cards. The
card type determines where it can be installed in the server blade:

Install Type I mezzanine cards on any mezzanine connector.

Install Type II mezzanine cards only on Mezzanine 2 connector or Mezzanine 3 connector.

To install the component:

1.

Power down the server blade (on page

15

).

2.

Remove the server blade (on page

16

).

3.

Remove the access panel (on page

17

).
