Dimm slots – HP BL685C G6 User Manual
Page 11

Component identification 11
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL685c G6 Server Blade Installation Instructions that ship with the server blade.

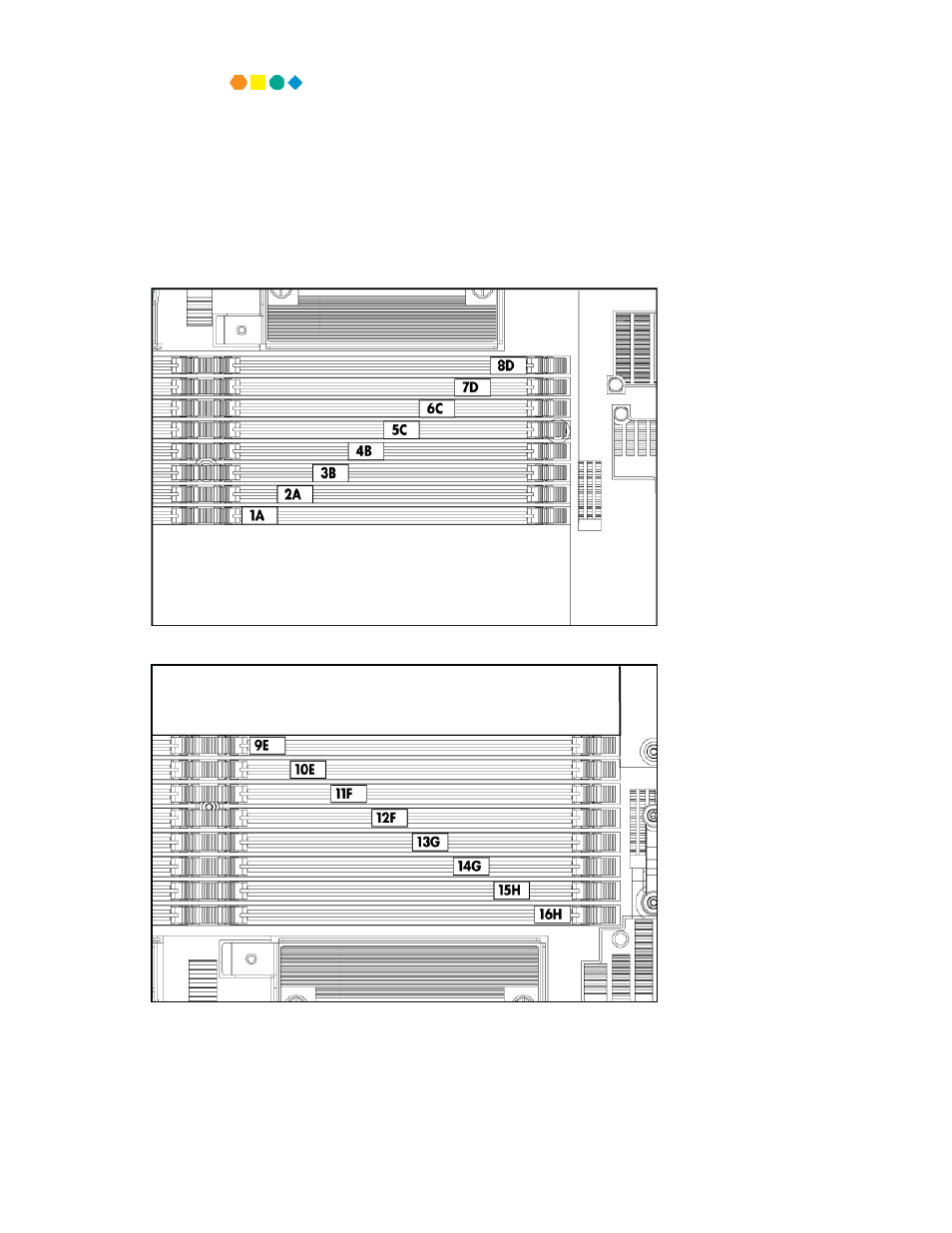

DIMM slots
DIMM slots are identified by the numbers 1 through 32 and paired banks are identified by the letters A
through P.
Each processor has eight DIMM slots associated with it:
•
Processor 1 DIMM slots
•
Processor 2 DIMM slots
