Component identification 10

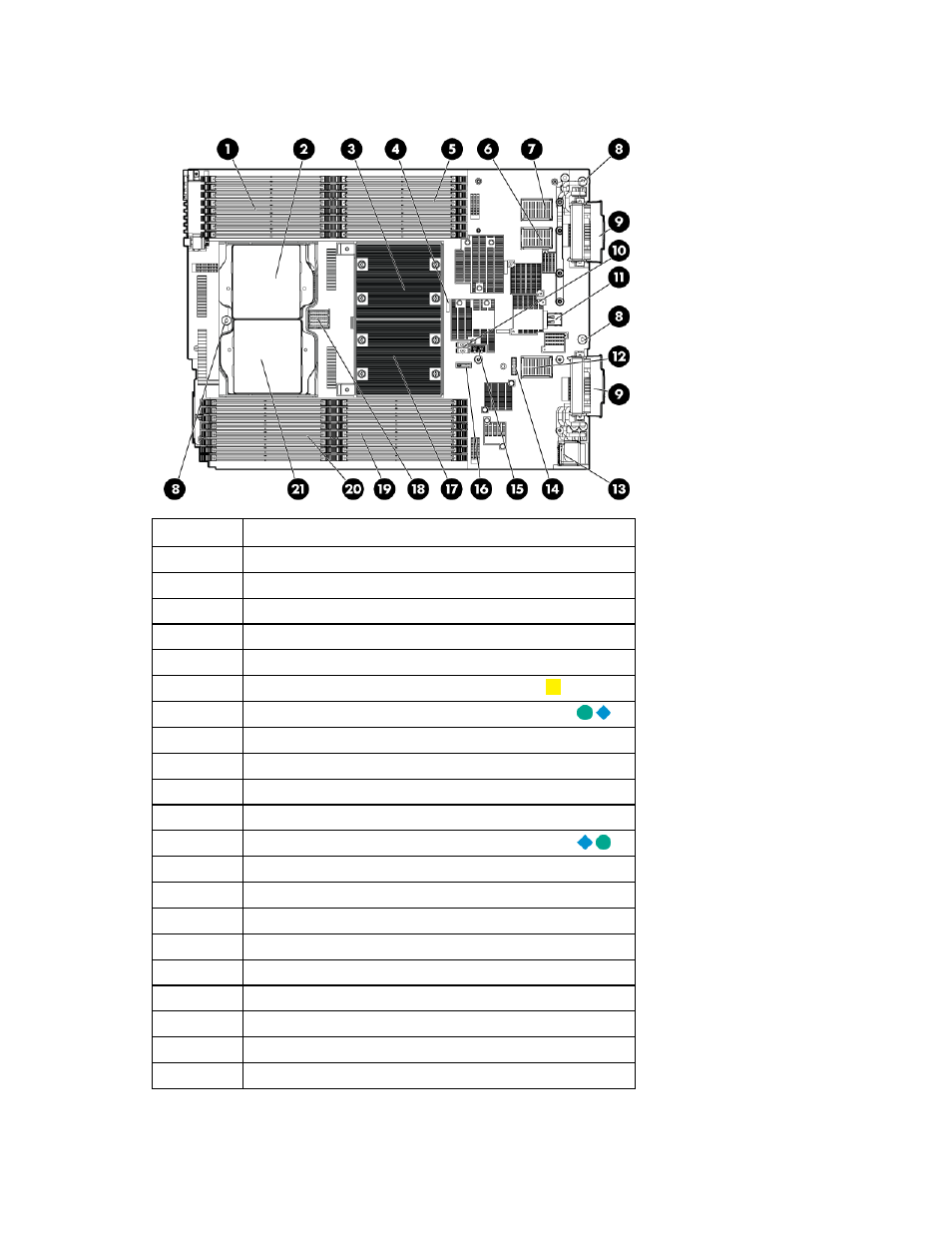

System board components

Item Description

1

Processor 4 DIMM slots

2

Processor socket 4

3

Processor socket 2 (populated)

4

System maintenance switch

5

Processor 2 DIMM slots

6

Mezzanine connector 1 (Type I mezzanine only)

7

Mezzanine connector 2 (Type I or Type II mezzanine)

8

System board thumbscrews (3)

9

Enclosure connectors (2)

10

SSD data connectors (2)

11

Internal USB connector

12

Mezzanine connector 3 (Type I or Type II mezzanine)

13

SD card slot

14 TPM

connector

15

SSD power connectors (2)

16 System

battery

17

Processor socket 1 (populated)

18 SAS

controller

connector

19

Processor 1 DIMM slots

20

Processor 3 DIMM slots

21

Processor socket 3
