Hardware options installation 36

13.

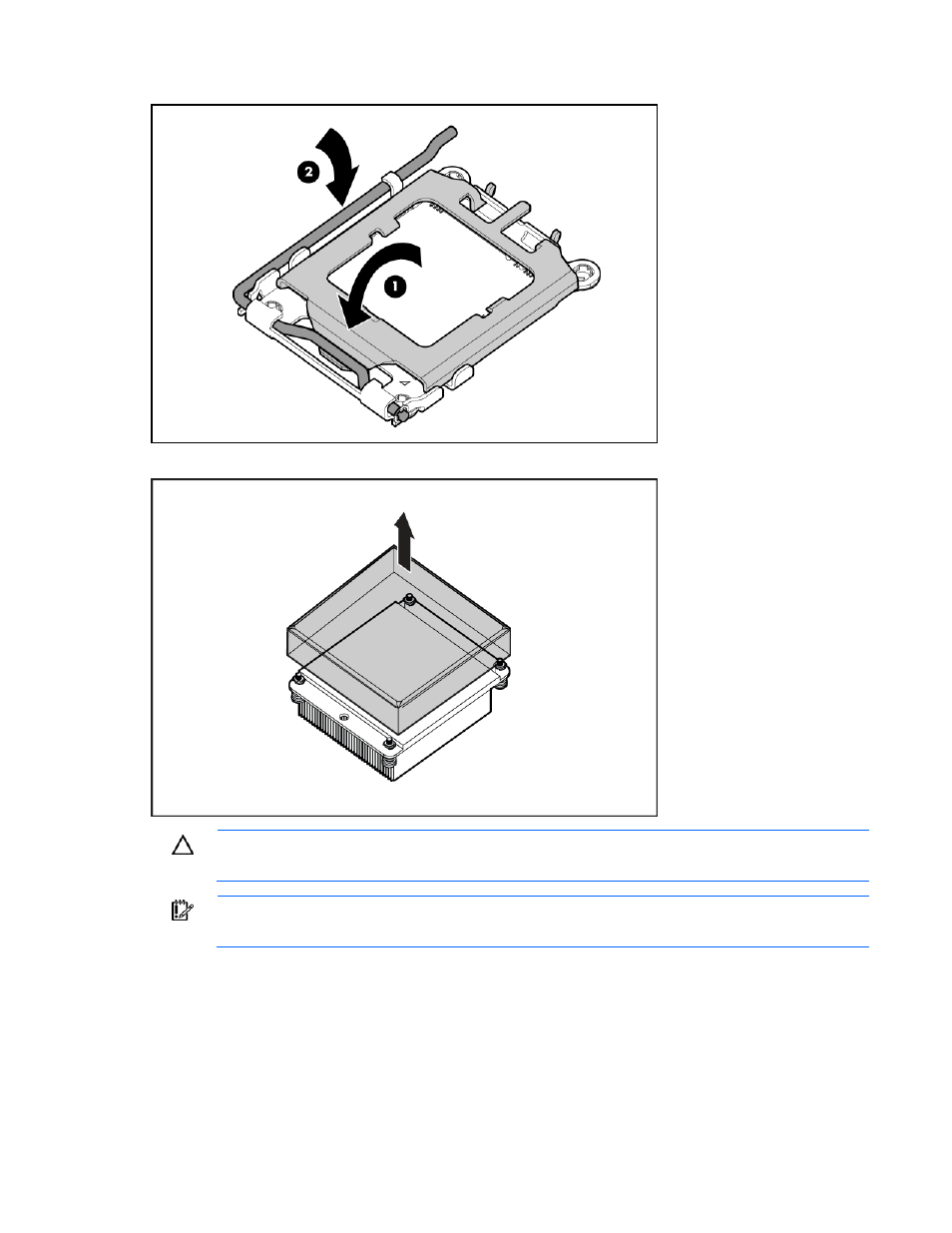

Close the processor retaining bracket and the processor retaining latch.

14.

Remove the thermal interface protective cover from the heatsink.

CAUTION:

Heatsink retaining screws should be tightened in diagonally opposite pairs (in an

"X" pattern).

IMPORTANT:

When installing the heatsink, align the guide pins on the processor retention

bracket with the alignment holes in the heatsink.
