Epson R800 - Manual (Page 72)

72
Printing on CDs and DVDs
8. Select EPSON Print CD from the
pull-down menu.
9. Select Print Position Check Pattern .
10. Click Print , then click OK on the next
screen.
The confirmation pattern is printed on
the check disc or CD and the printer
ejects it.
11. Remove the check disk or CD and
measure the distance from the edge of the
hole to the small cross marks labeled
Top
and Right . You’ll need a metric ruler with
millimeters for accurate measurements.

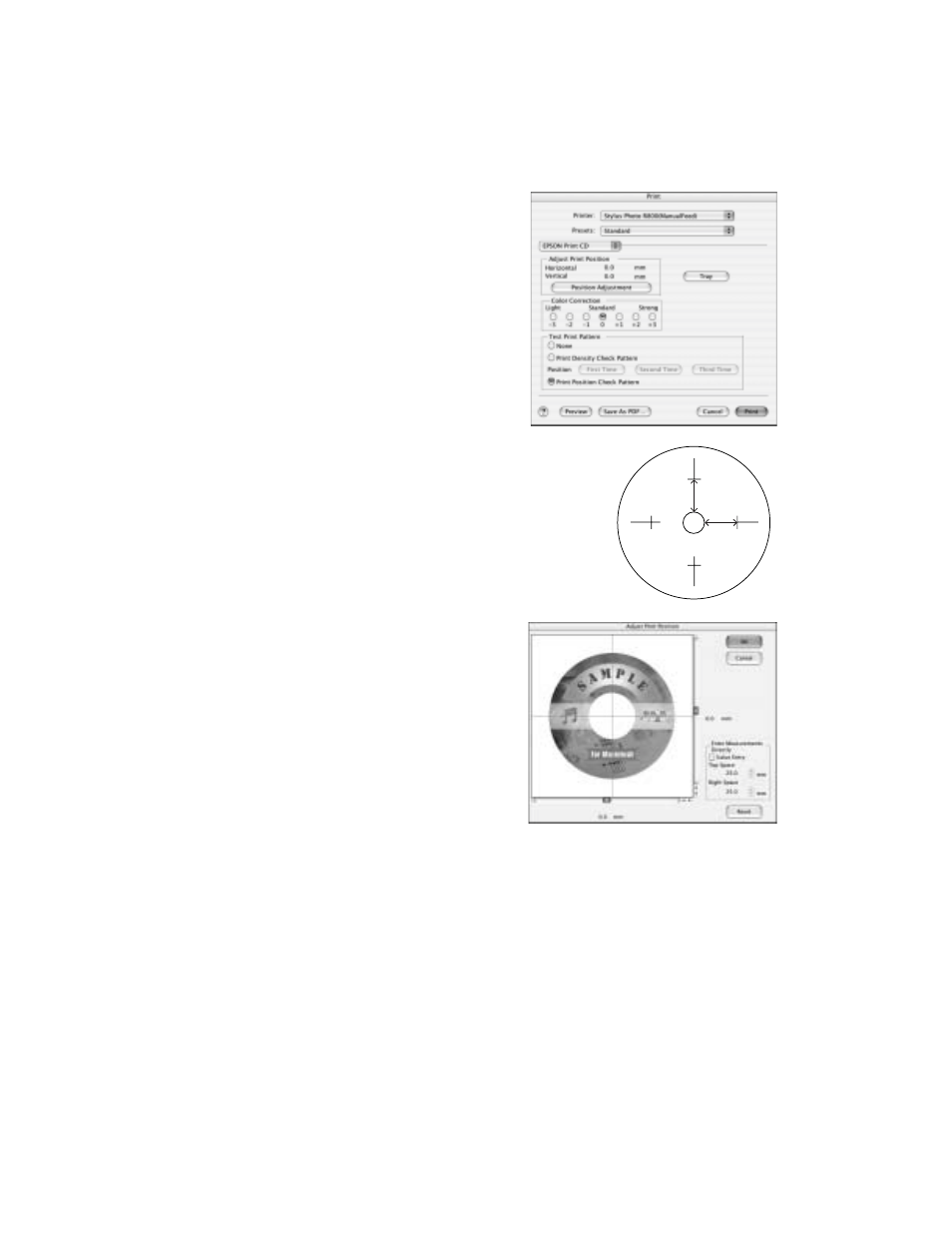

12. Open the File menu and select Adjust
Print Position . You see a screen like this:
13. Make sure Value Entry is checked.
14. Select the Top distance as the Top Space
setting and the Right distance as the Right
Space setting.
15. Click OK to save the measurements.
Macintosh 8.6 to 9.x
1. Place the cardboard check disk (or an extra CD) on the CD tray and insert it into
the printer, as described on page 63.
2. Start Epson Print CD.
Top
Right
