4-3-3. LACP Status
Function name:
LACP Status
Function description:
Display the LACP status. In the Fig. 4-30, the window can show LACP
information and status for each port at one time.
Parameter description:
LACP Aggregation Overview:
Show the group/port status. Red signs are set by default for link down
ports; user are recommended to refer to the legend table below for
detailed information.
LACP Port Status:
Group/Port:
Show the port number.
Normal : as Legend.

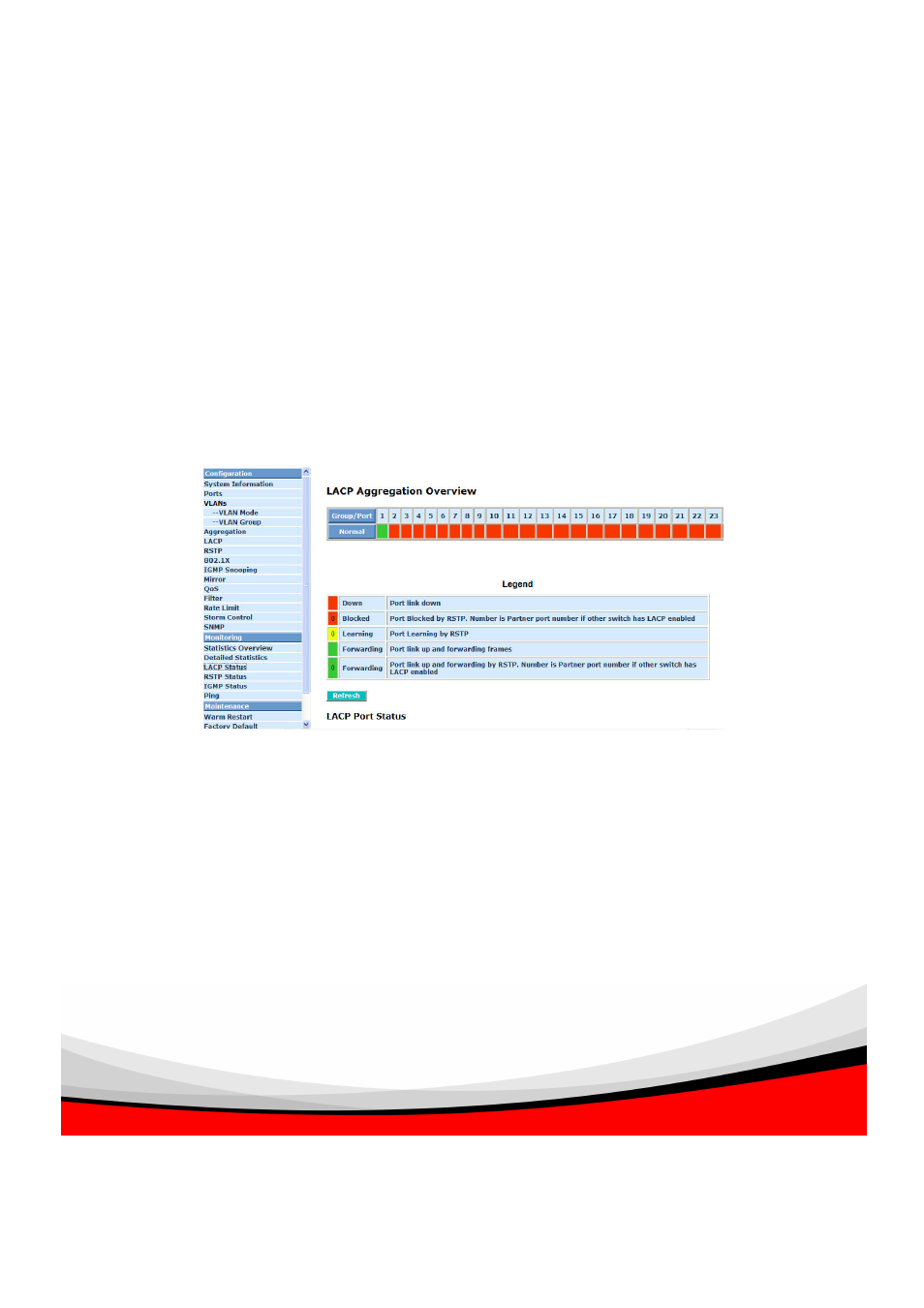

Fig. 4-30 LACP Status
