2-2. Typical Applications
The 24-Port GbE Web Smart Switch implements 24 Gigabit Ethernet TP
ports with auto MDIX and four slots for removable modules Comprehensive fiber
types of connection including LC and BiDi-LC SFP modules are supported. For
more detailed specifications of the switch, please refer to Appendix A.
The switch is suitable for the following applications.
⎯ Central Site/Remote Site is used in carrier or ISP applications. (See Fig. 2-10)
⎯ Peer-to-peer is used for applications in between two remote offices. (See Fig.
2-11)
⎯ Office network(See Fig. 2-12)

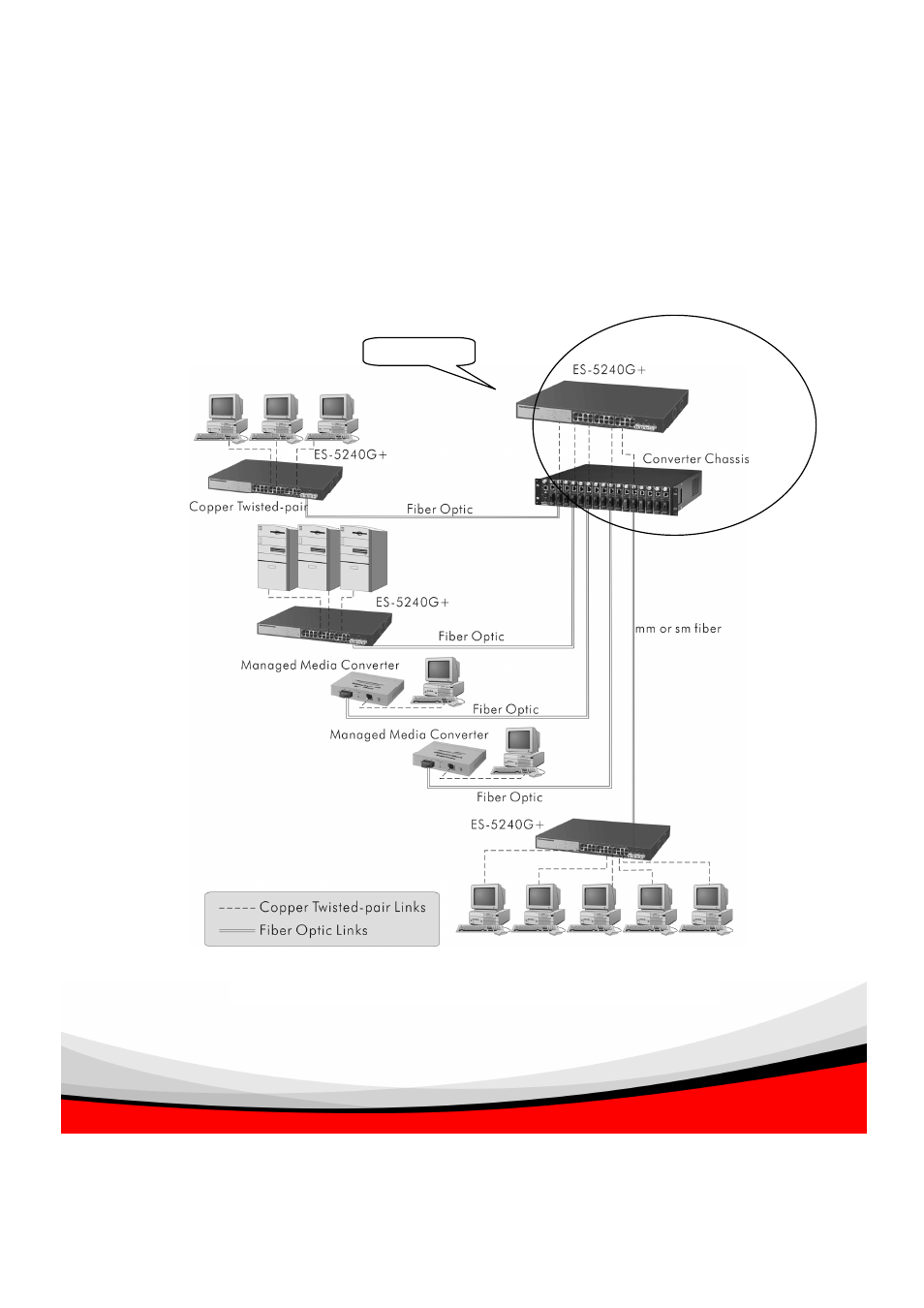

Fig. 2-10 is the reference diagram of a basic system wide connection scheme . This
diagram demonstrates how this switch connects network devices and hosts.
Fig. 2-10 Network Connection between Remote Site and Central Site
Central Site
