5
• LED Indicators
LED Color Function
System LED
POWER Green Lit when +3.3V power is coming up
10/100/1000Ethernet TP Port 1 to 24 LED
LINK/ACT Green
Lit when connection with remote device is good
Blinks when any traffic is present
10/100/1000Mbps Green/
Amber
Lit Green when TP link on 1000Mbps speed
Lit Amber when TP link on 100Mbps speed
Off when 10Mbps or no link occur
Blinks when any traffic is present
1000SX/LX Gigabit Fiber Port 21, 22, 23, 24 LED
SFP(LINK/ACT) Green
Lit when SFP connection with remote device is
good
Blinks when any traffic is present
Table1-ES-5240G+ LED Indicators table
1-4-2. User Interfaces on the Rear Panel

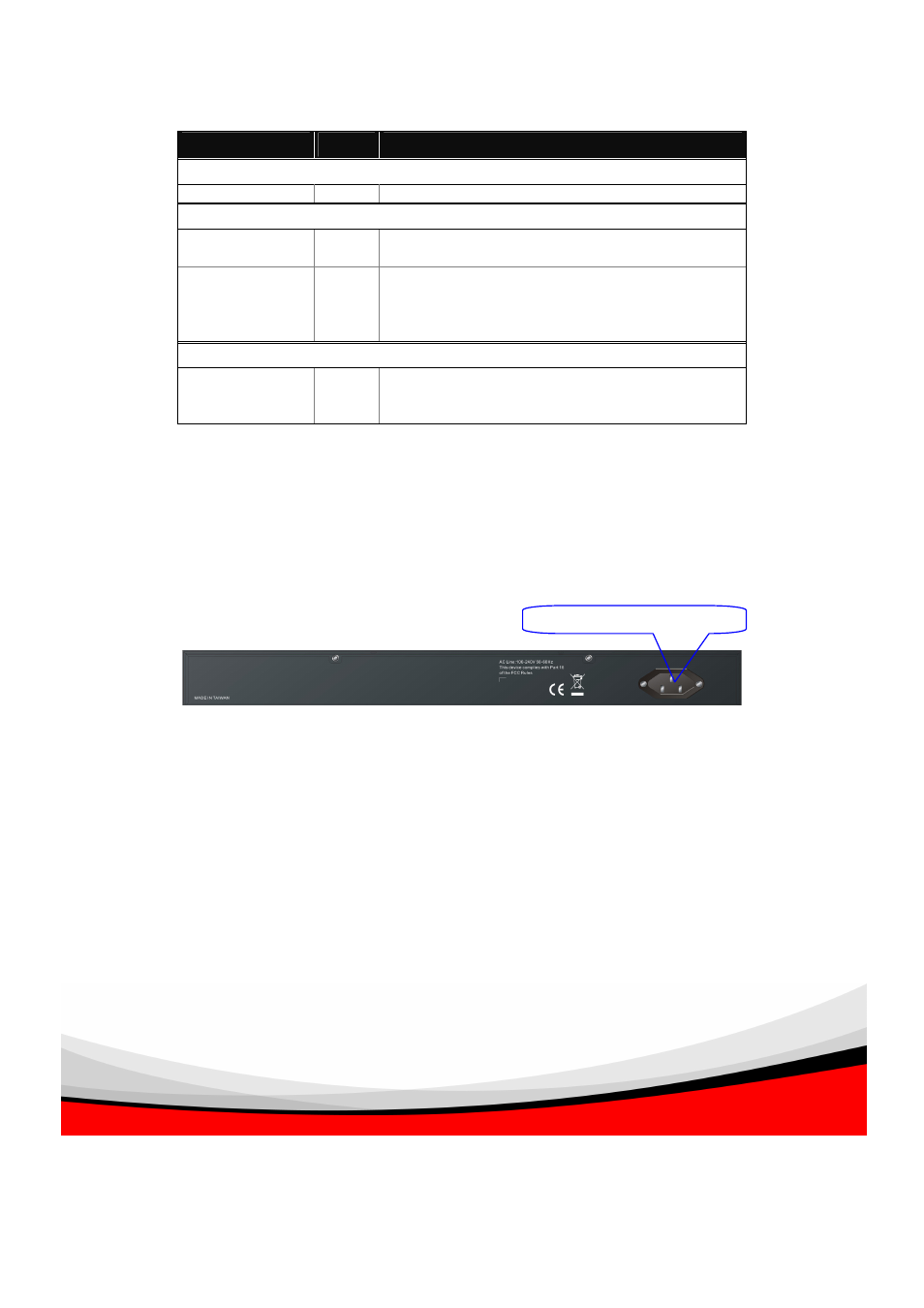

Fig. 1-3 Rear View of 24-PORT GBE WEB SMART SWITCH
AC Line 100-240V 50/60 Hz
