7
2. Installation
2-1. Starting 24-Port GbE Web Smart Switch Up
This section will give users a quick start for:
- Hardware and Cable Installation
- Management Station Installation
- Software booting and configuration
2-1-1. Hardware and Cable Installation
At the beginning, please do first:
Æ Wear a grounding device to avoid the damage from electrostatic discharge. Be
sure that power switch is OFF before you plug in AC power source
Æ Installing Optional SFP Fiber Transceivers to the 24-Port GbE Web Smart Switch
Note: If you do not have modules, please skip this section.
• Connecting the SFP Module to the Chassis:
The optional SFP modules are hot swappable, so you can plug or unplug them
before or while the power is turn on
1. Verify that the SFP module is the right model and conform to the chassis
2. Slide the module along the slot. Also be sure that the module is properly
seated on the slot socket/connector
3. Install the media cable for network connection
4. Repeat the above steps, as needed, for each module to be installed into
slot(s)
5. Turn the power ON after the above procedures are done

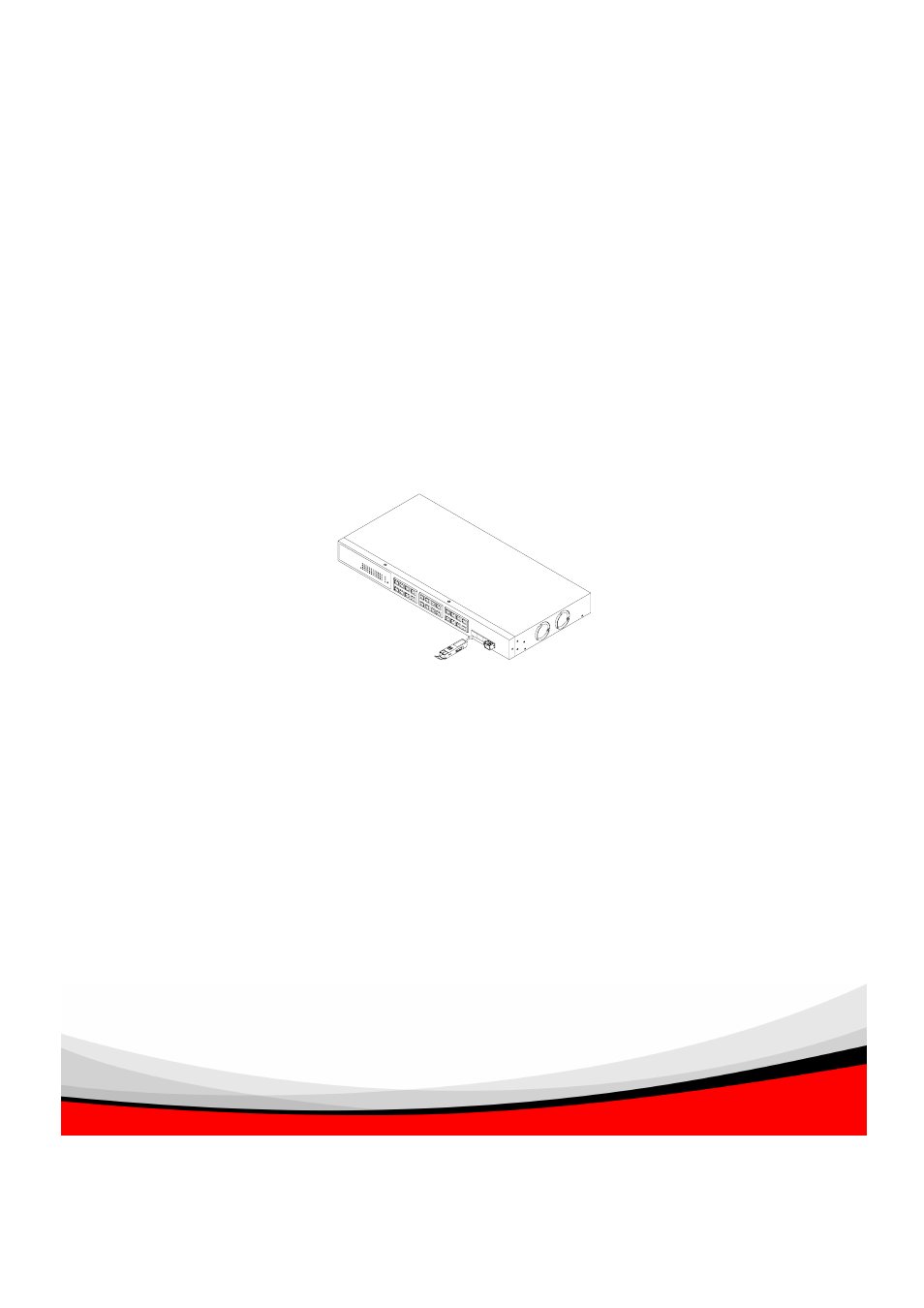

Fig. 2-1 Installation of Optional SFP Fiber Transceiver
