4-3-1. Statistics Overview
The function of Statistics Overview collects any information and provides the
counting summary about the traffic of the port, no matter the packet is good or bad.
In the Fig. 4-25, the window can show all ports’ counter information at the
same time. If the counting overflows, the counter will be reset the counting will
restart.
Function name:
Statistics Overview
Function description:
Display the summary counting of each port’s traffic, including Tx Bytes, Tx
Frames, Rx Bytes, Rx Frames, Tx Errors and Rx Errors.
Parameters description:
Tx Bytes:
Total transmitted bytes.
Tx Frames:
The counting number of the packet transmitted.
Rx Bytes:
Total received bytes.
Rx Frames:
The counting number of the packet received.
Tx Errors:
Number of bad packets transmitted.
Rx Errors:
Number of bad packets received.

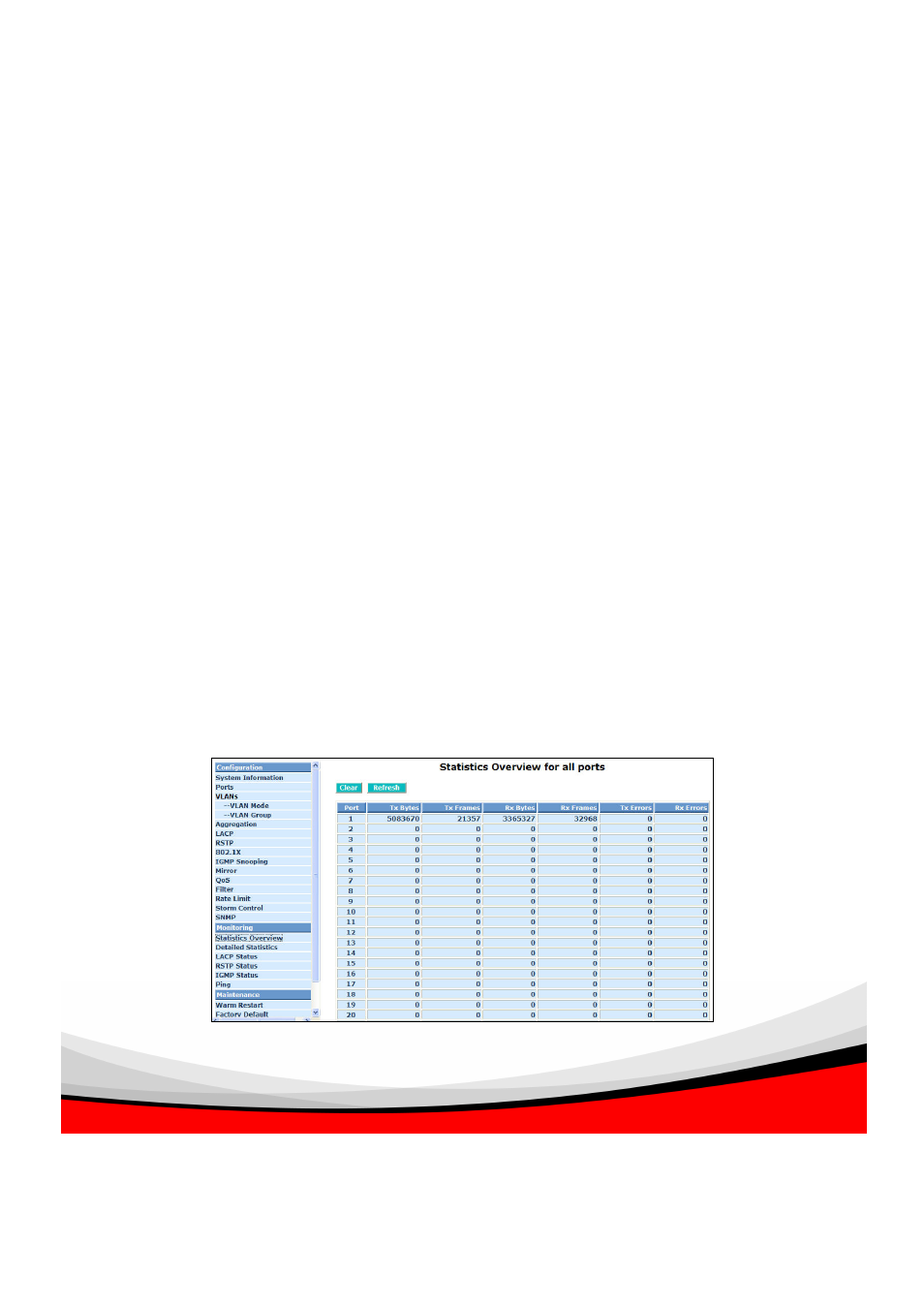

Fig. 4-28 Statistics Overview for all ports
