47

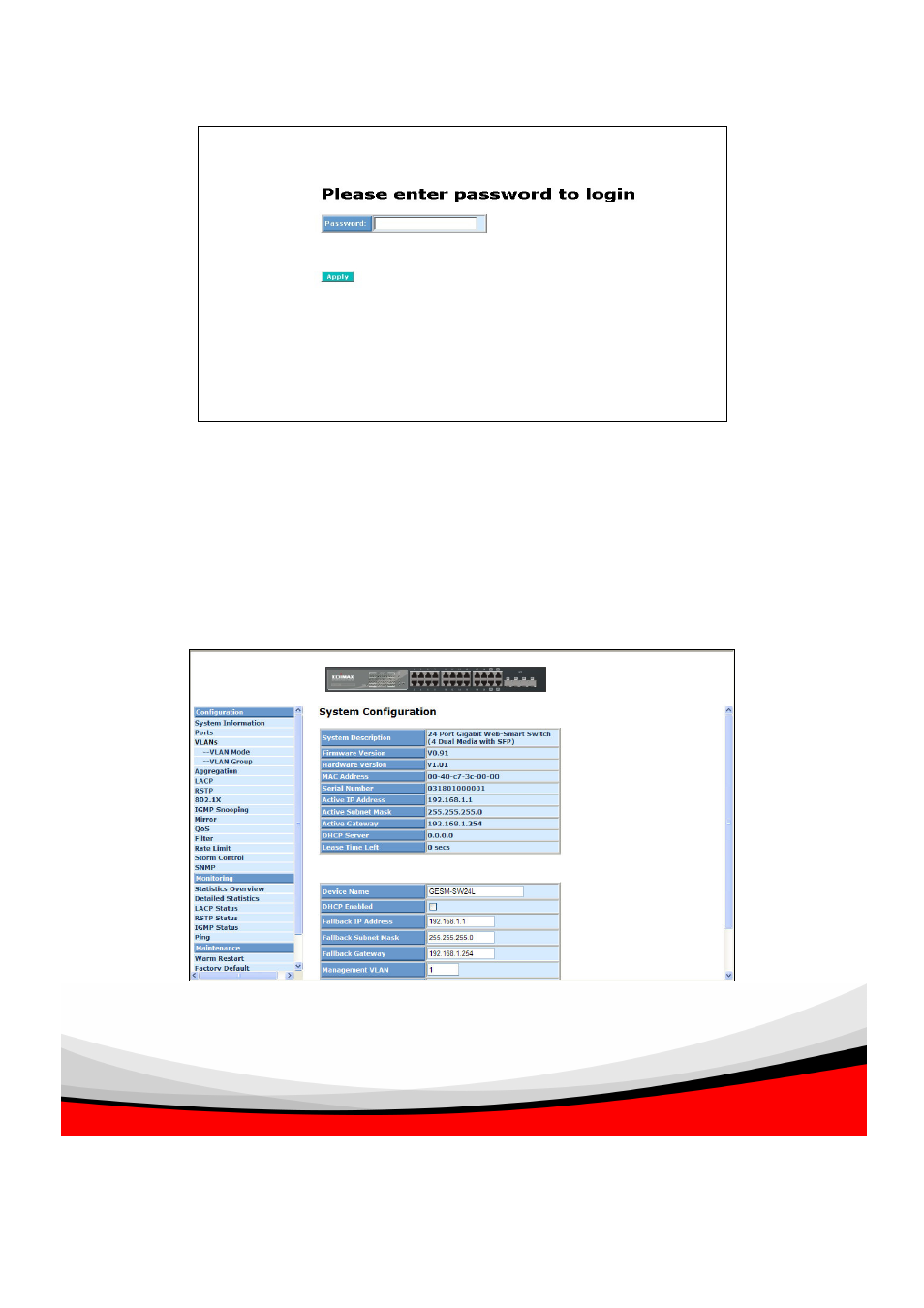

Fig. 4-1
4-1. Web Management Home Overview
After you login, the switch shows you the system status information as Fig. 4-
2. This is the default page and it displays you with the basic information of the
system, including “Switch Status”, “TP Port Status”, “Fiber Port Status”,
“Aggregation”, “VLAN”, “Mirror”, “SNMP”, and “Maximum Packet Length”. With this
information, you will know the software version used, MAC address, how many
good and so on. For more details, please refer to Section 4-4-1.
Fig. 4-2
