Table 8. Approximate Actuator Weights
SIZE
1051 1052 TOP-MOUNTED HANDWHEEL
Kg Lb Kg Lb Kg Lb
40
60
70 43
89
- - -
94
197
- - -
45
92
123
99
203
272
7.3
11
21.3
16
24
47
Table 9. Keyway Alignment Information (1)
DESIRED
ACTUATOR
ACTION
DESIRED SHAFT
ROTATION,
DEGREES
ACTUATOR
MOUNTING
POSITION
COUPLING
KEYWAY TO
USE (3)
VALVE SHAFT KEYWAY TO USE FOR FISHTAIL™ DISC VALVE BODIES (2)
(SEE FIGURE 10)
Clockwise to
Close Valve Action (4)
Counterclockwise to
Close Valve Action
(4)
Flow Left to
Right (4)
Flow Right to
Left (4)
Flow Left to
Right (4)
Flow Right to
Left (4)
Push Down to
Open (PDTO)
60 or 90
1 B Nose Tail Tail Nose
2 A Tail Nose Nose Tail
3 B Tail Nose Nose Tail
4 A Nose Tail Tail Nose
Push Down to
Close (PDTC)
60 (5) or 90
1 A Tail Nose Tail Nose
2 B Tail Nose Tail Nose
3 A Nose Tail Nose Tail
4 B Nose Tail Nose Tail
1. For actuators with J mounting.
2. For conventional disc valve bodies, use either valve shaft keyway.
3. See figure 10 for reference coupling orientation to use with this table.
4. When viewed from actuator side of valve body.
5. For 60-degree rotation with PDTC action, the coupling and actuator output shaft assembly will be offset 30 degrees clockwise (for actuator housing construction style B) or counterclockwise
(for actuator housing construction Style A) in the lever when viewed from the splined end of the actuator shaft. 30 degrees is one spline tooth for 9.5, 12.7, and 15.9 mm (3/8, 1/2, and
5/8-inch) valve shafts and two spline teeth for 19.1 through 38.1 mm (3/4 through 1-1/2 inch) valve shafts.

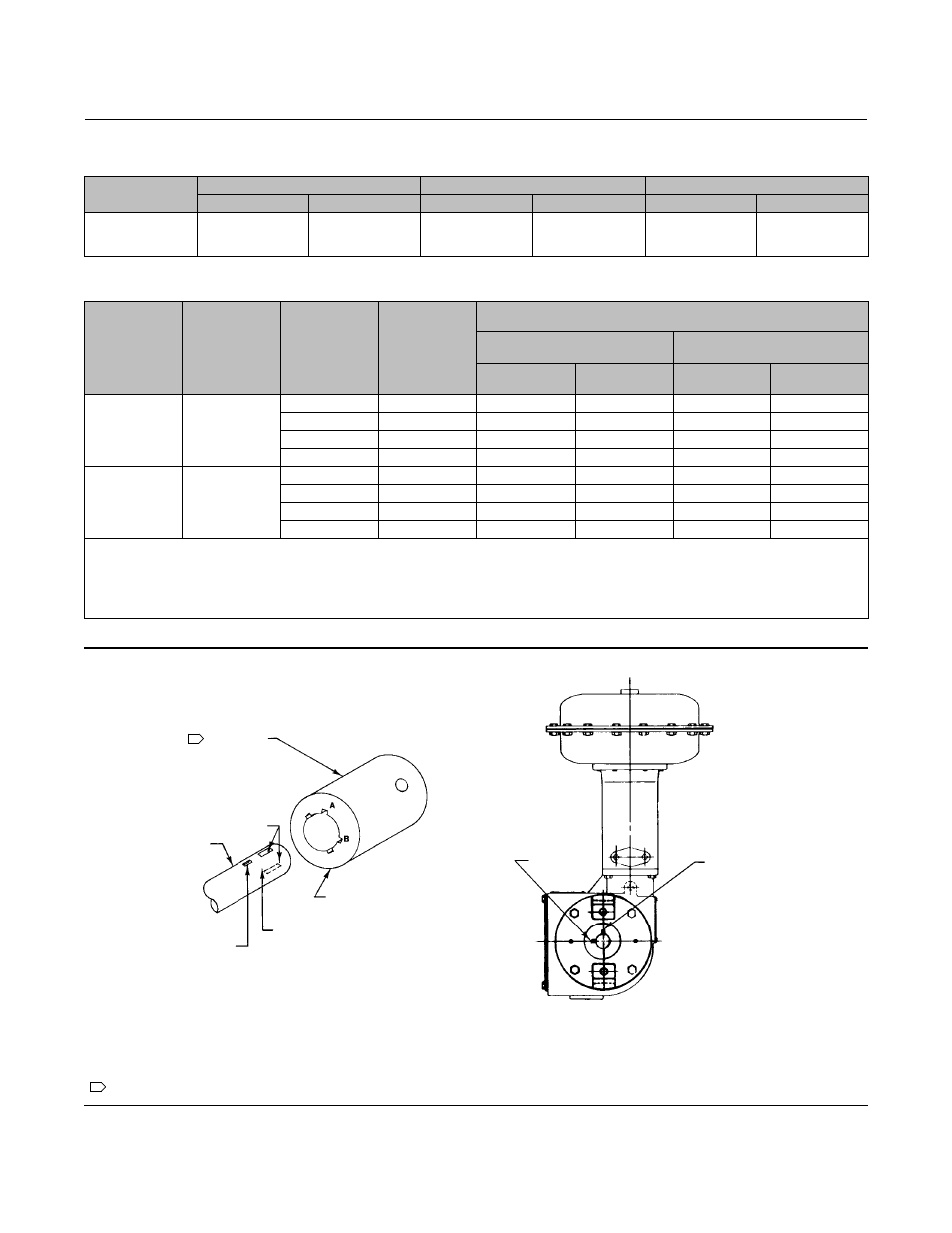

Figure 8. Valve Shaft Coupling
EXPLODED VIEW OF VALVE SHAFT
AND COUPLING
REFERENCE COUPLING ORIENTATION
FOR TABLE 9
NOTE:
FOR USE WITH J MOUNTING ADAPTATION (UP TO 50.8 mm (2-INCH) KEYED SHAFT DIAMETERS. 1
1
A3253-1
FULL KEYWAY
LOCATED ON
NOSE AND TAIL
SIDE OF VALVE SHAFT
VALVE SHAFT
COUPLING
PARTIAL KEYWAY
FOR DETERMINING
DISC POSITION
USE APPROPRIATE LETTERED
KEYWAY AS INDICATED IN
TABLE 9
USE APPROPRIATE
VALVE SHAFT
KEYWAY AS
INDICATED
IN TABLE 9
KEYWAY A KEYWAY B
ABOVE
KEYWAY A
19B1465-B
