Define values – Barco F80-4K9 9000-Lumen 4K UHD DLP Laser Projector (No Lens) User Manual
Page 53
53
R5906852 /09
F80
1
4
4
2
3
3
2
1

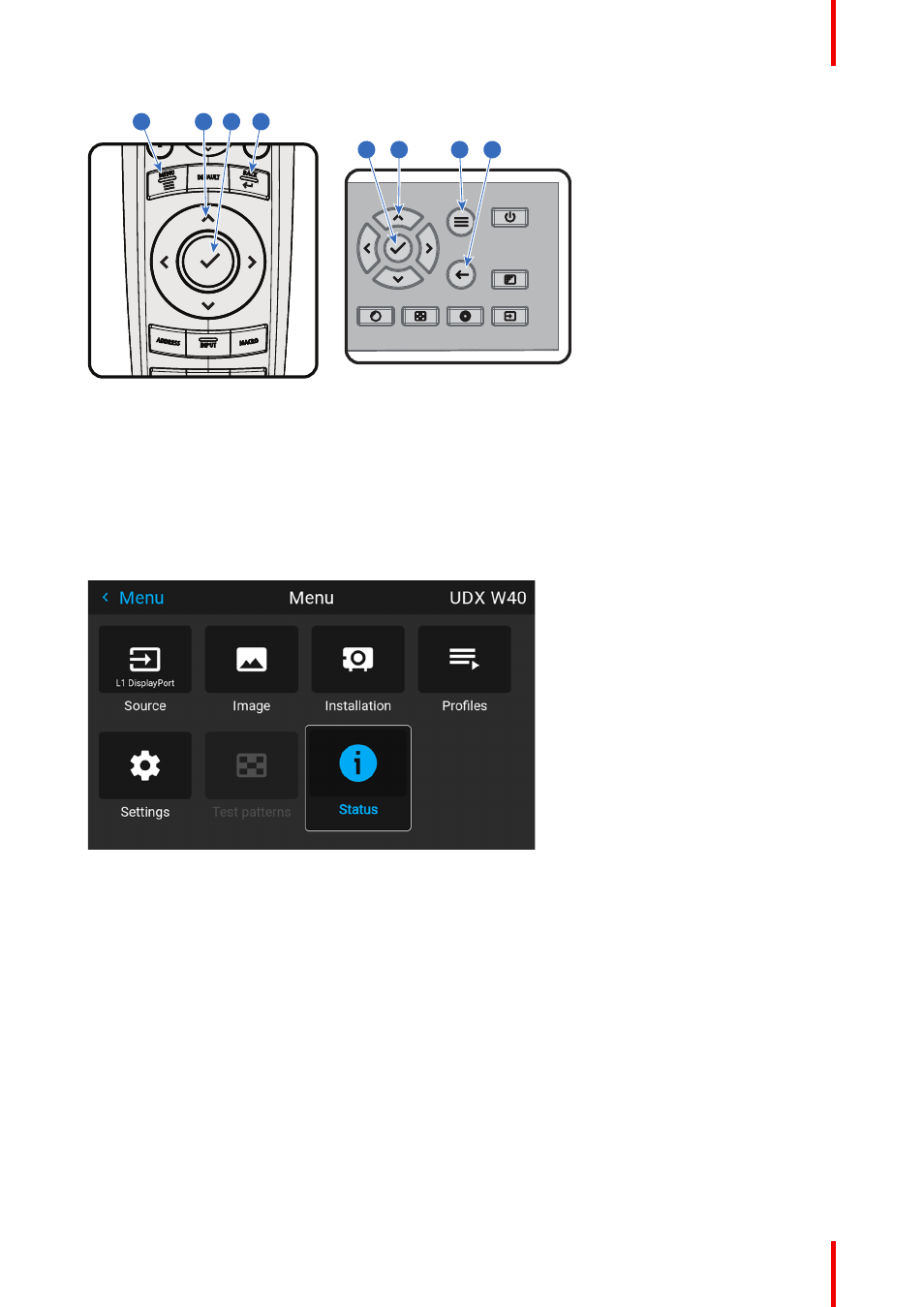

Image 5–5
To start up the menu structure, press
MENU
(1).
Use the arrow keys (
Menu Navigation
buttons) to navigate to the desired menu item (2). The background
color changes to light blue.
Press the
Menu Selection
button (center key of the arrow keys), also called
OK
button, to activate that item
and to jump one level deeper (3).
Use the numeral keys to enter values, or use the arrow keys to move the bar scale up or down.
Press the
Back
button to go up one level (4).
Image 5–6 Example of the home menu
Remark: a blue slider bar on the right side of the window means that there are more items to show than those
currently displayed.
Define values
Menu settings are displayed using check boxes, bar scale sliders, and drop-down lists.
To set a value:
•
Press
OK
to select or deselect a checkbox (turn a function ON or OFF).
•
Use the arrow keys to move the bar scale slider up or down on the value line. For a bar scale 0-9, each
step will equal 10% of the total value.
•
To enter the value as a direct number, press
OK
, input the digit(s), and then press
OK
again to execute and
exit cursor mode e.g. OK 79 OK.
Within an input field, use the
*
button as backspace button to remove an entered digit. Use the
#
button to
enter a dot (.).
Changes to values are implemented dynamically.
